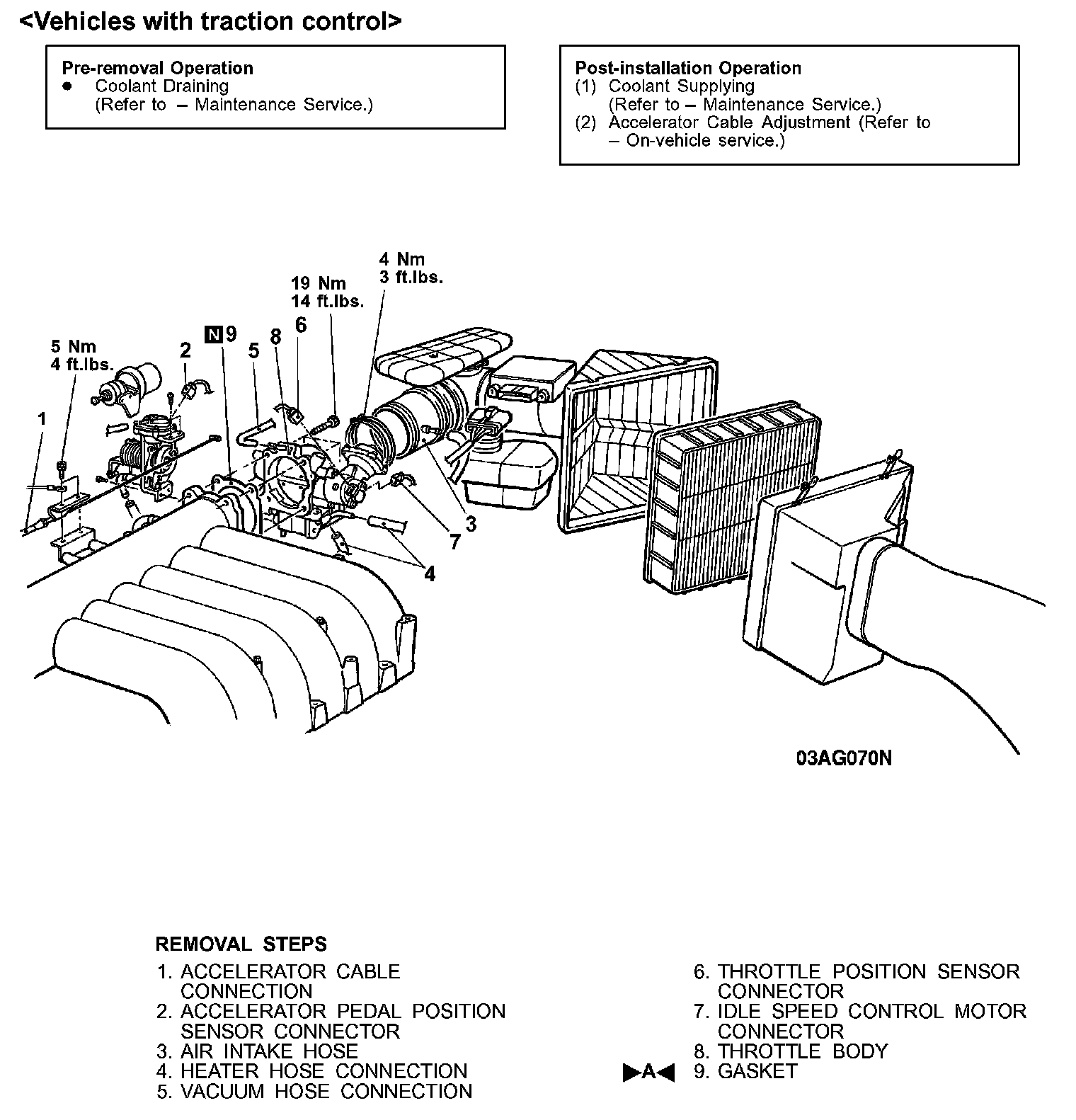

With Traction Control




INSTALLATION SERVICE POINT




GASKET INSTALLATION

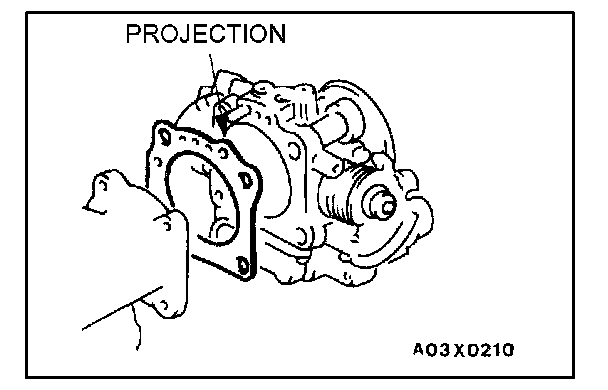

Install the gasket so that the projection is where shown in the illustration.

CAUTION: Poor idling etc. may result if the gasket is installed incorrectly.
