Accelerator Pedal: Service and Repair
Accelerator Cable And Pedal:
INSTALLATION SERVICE POINT
ACCELERATOR CABLE INSTALLATION

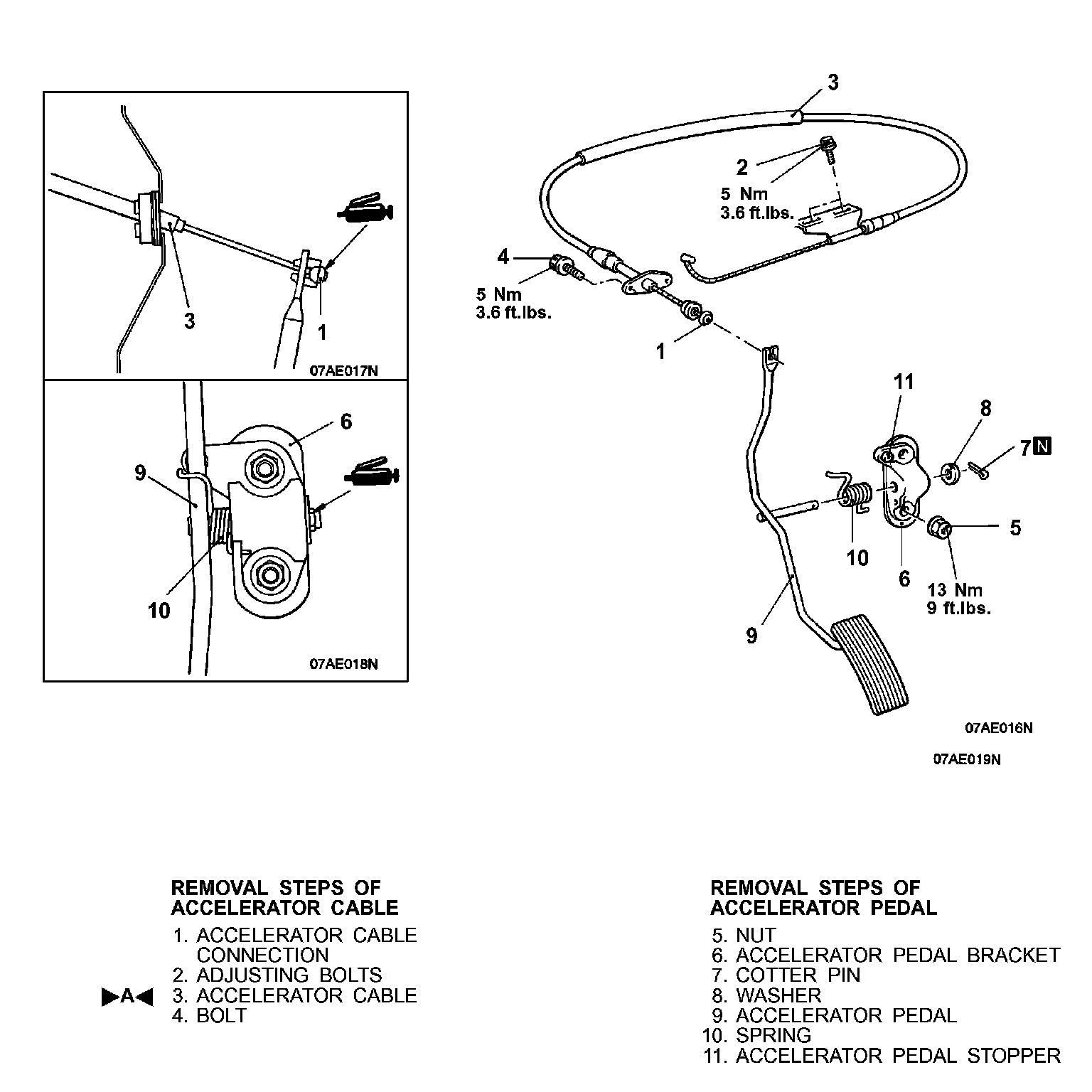

Install the accelerator cable, ensuring that the cable is securely clamped in the support clips as shown by the arrows.
