Spark Plug Cable Resistance Check
Spark Plug Cable Resistance Check

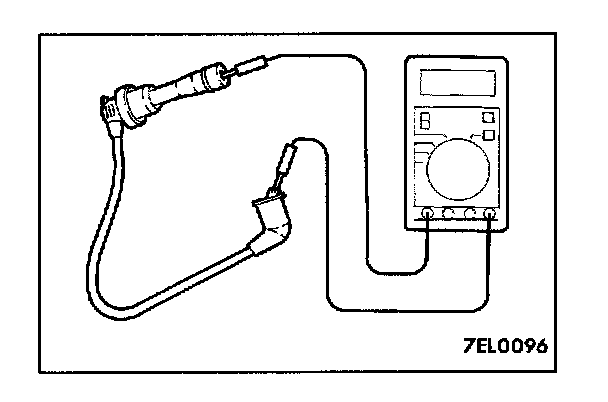

Measure the resistance of all the
spark plug
leads.
1.
Check cap and coating for cracks.
2.
Measure resistance
Limit: Max.
22 kOhm
