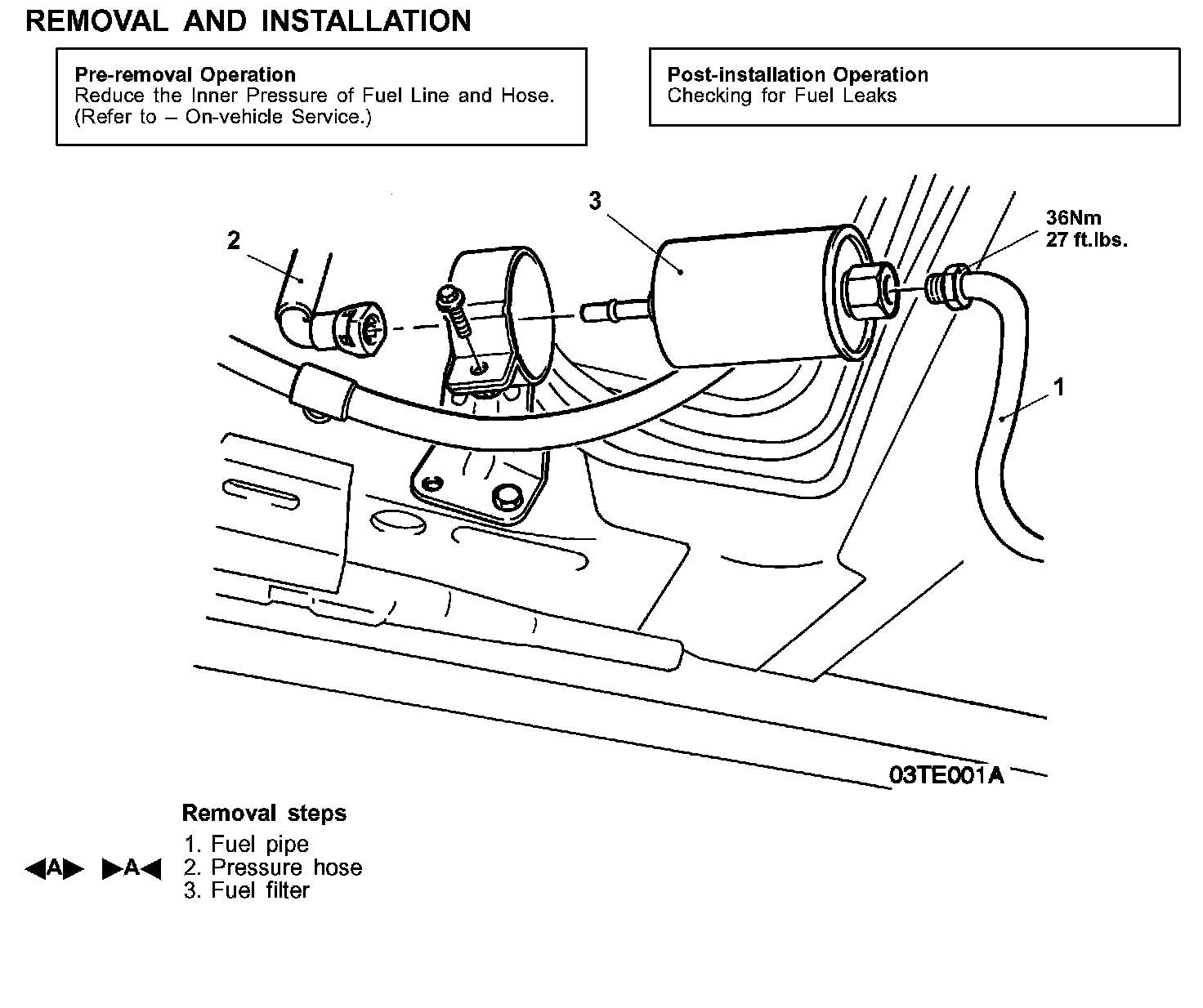

Fuel Filter: Service and Repair
REMOVAL SERVICE POINT
PRESSURE PIPE

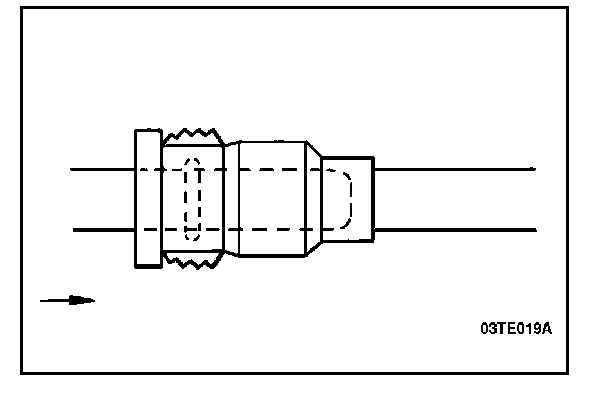

1. Push the connector body gently in the direction shown in the illustration.
2. Grip the removal tabs at each side
3. Push in the direction of removal.
INSTALLATION SERVICE POINTS
>A< PRESSURE PIPE

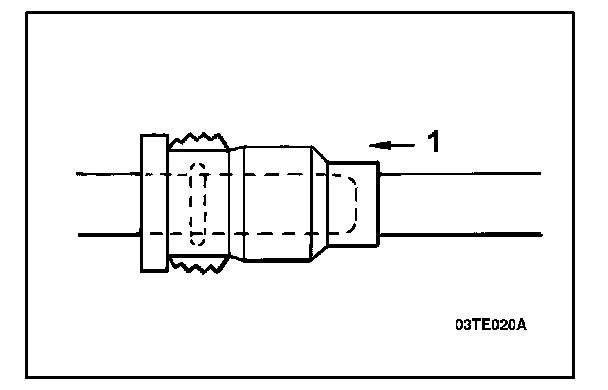

1. Push the connector over the pipe until the connector stops with a click.
2. Push the connector gently in the direction of removal to ensure that the connector is installed correctly.
