Home >> Mitsubishi >> 2003 >> Diamante V6-3.5L SOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> G Connectors - Trunk

G Connectors - Trunk

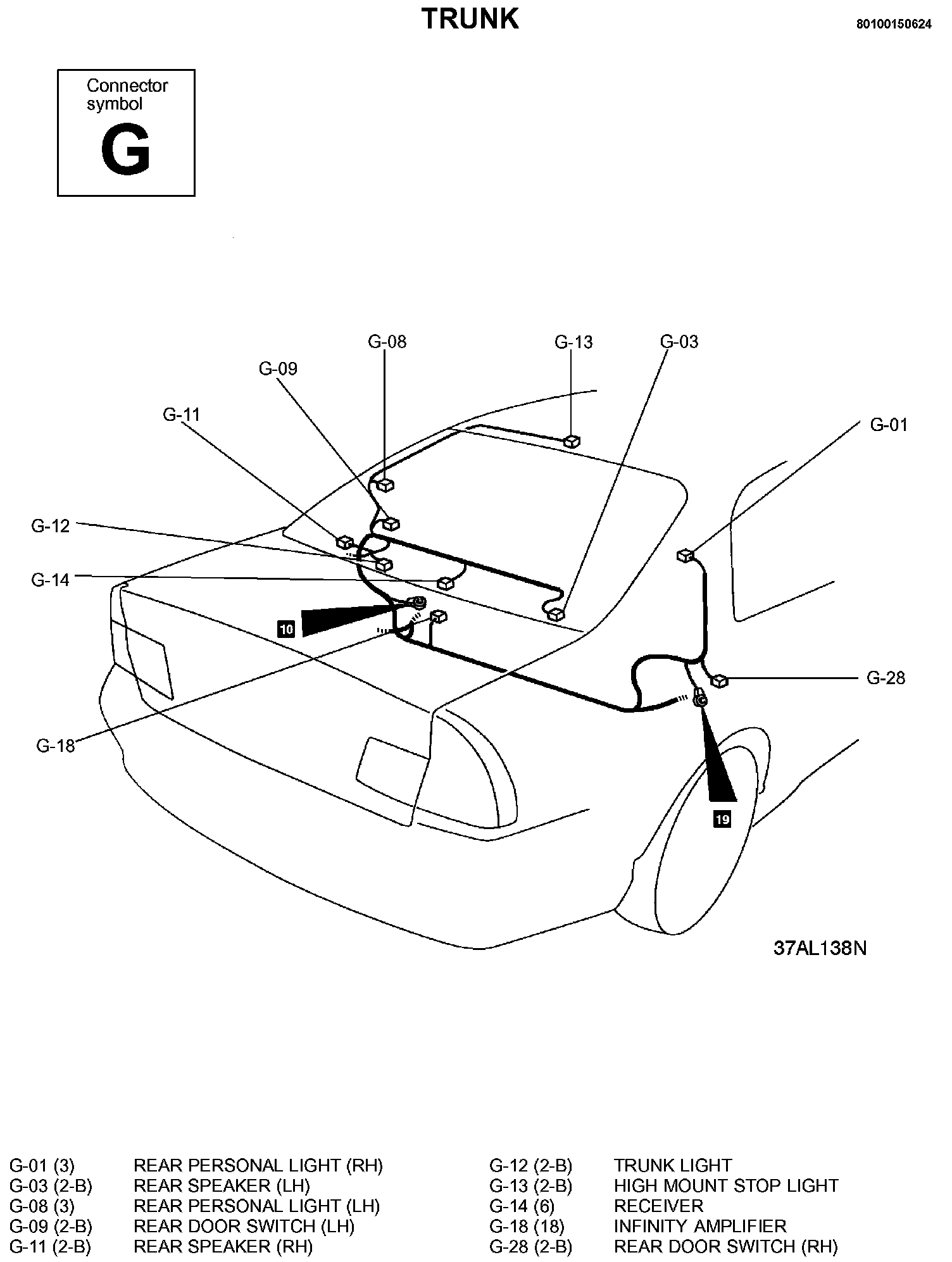

G-01 Thru G-51 (Part 1):

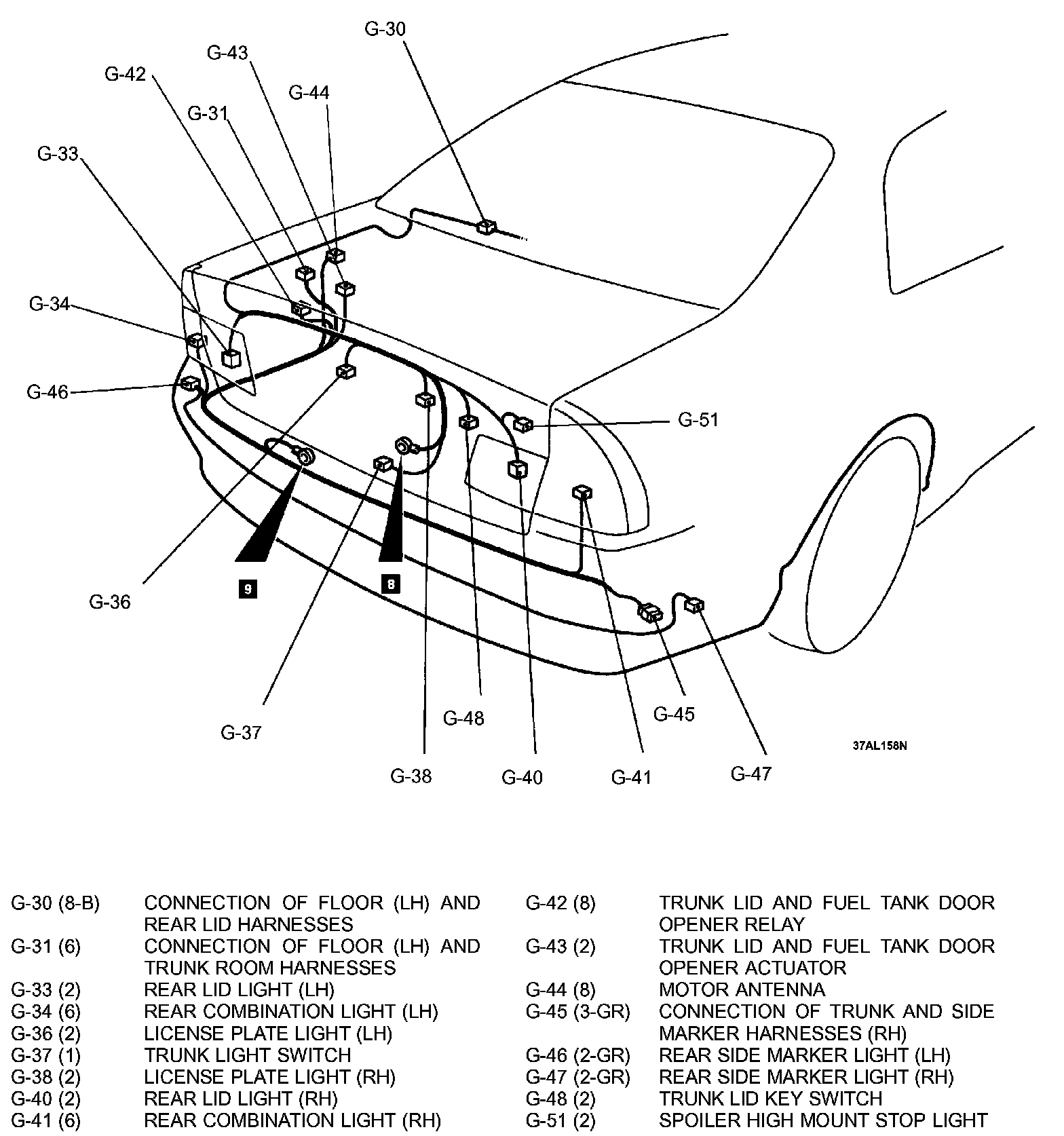

G-01 Thru G-51 (Part 2):
