Headlamp: Service and Repair
HEADLIGHT, FRONT SIDE-MARKER LIGHT AND POSITION LIGHT ASSEMBLYHeadlight, Front Side-Marker Light And Position Light Assembly:
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT

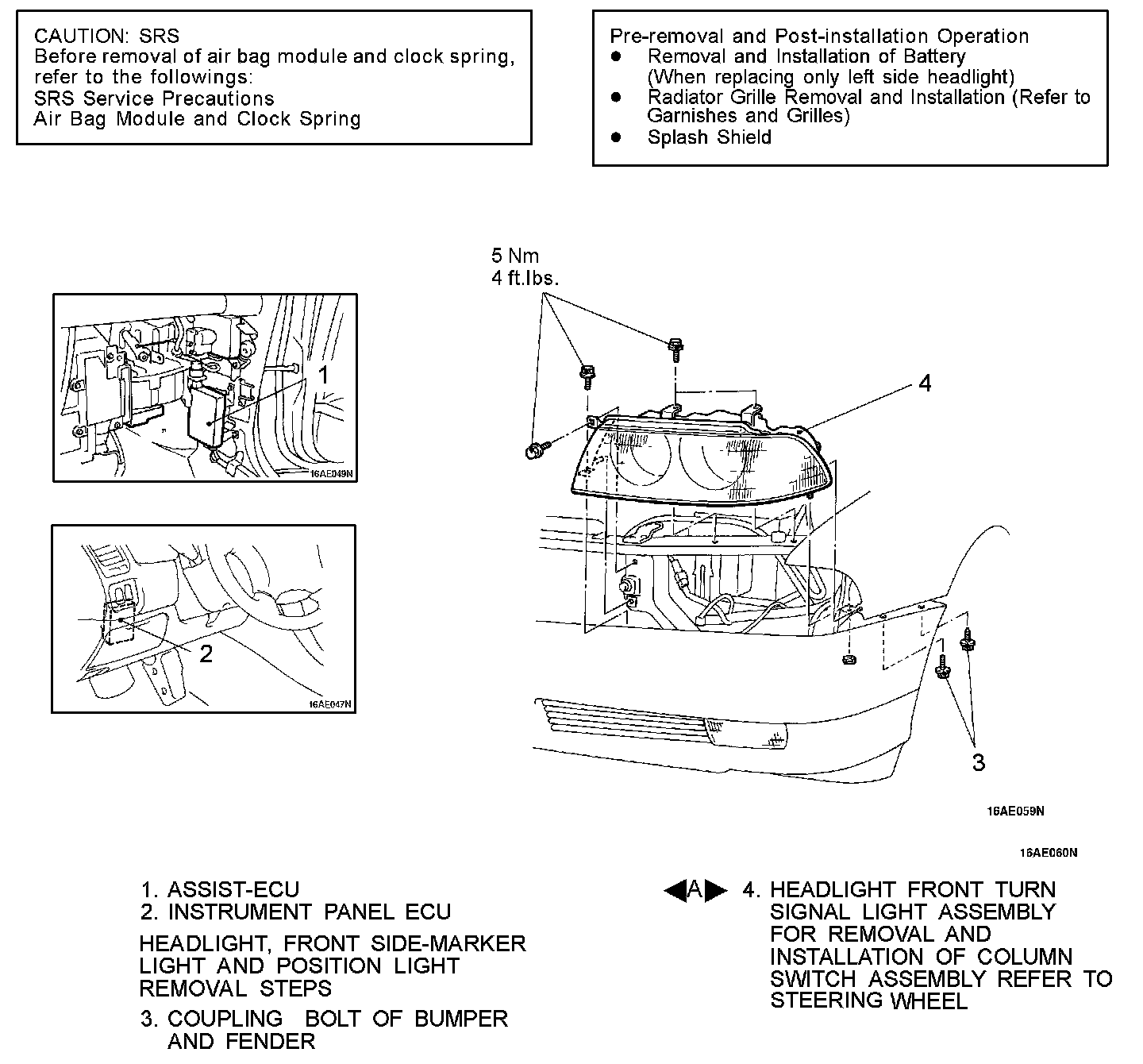

HEADLIGHT, FRONT SIDE-MARKER LIGHT AND POSITION LIGHT ASSEMBLY REMOVAL
Remove the bumper's fender side attachment so you can take out the headlight front turn signal light assembly. While pushing the bumper down, take out the assembly.
