Dimmer Switch: Testing and Inspection
RHEOSTATINSPECTION

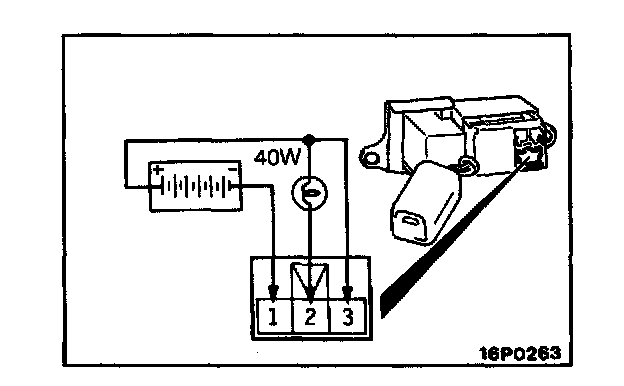

1. Connect a battery and test light (40 W) as shown in the illustration.
2. Operate the rheostat, and if the brightness changes smoothly without switching off, then the rheostat function is normal.
