Hose/Line HVAC: Service and Repair

REFRIGERANT LINE

Refrigerant Line:

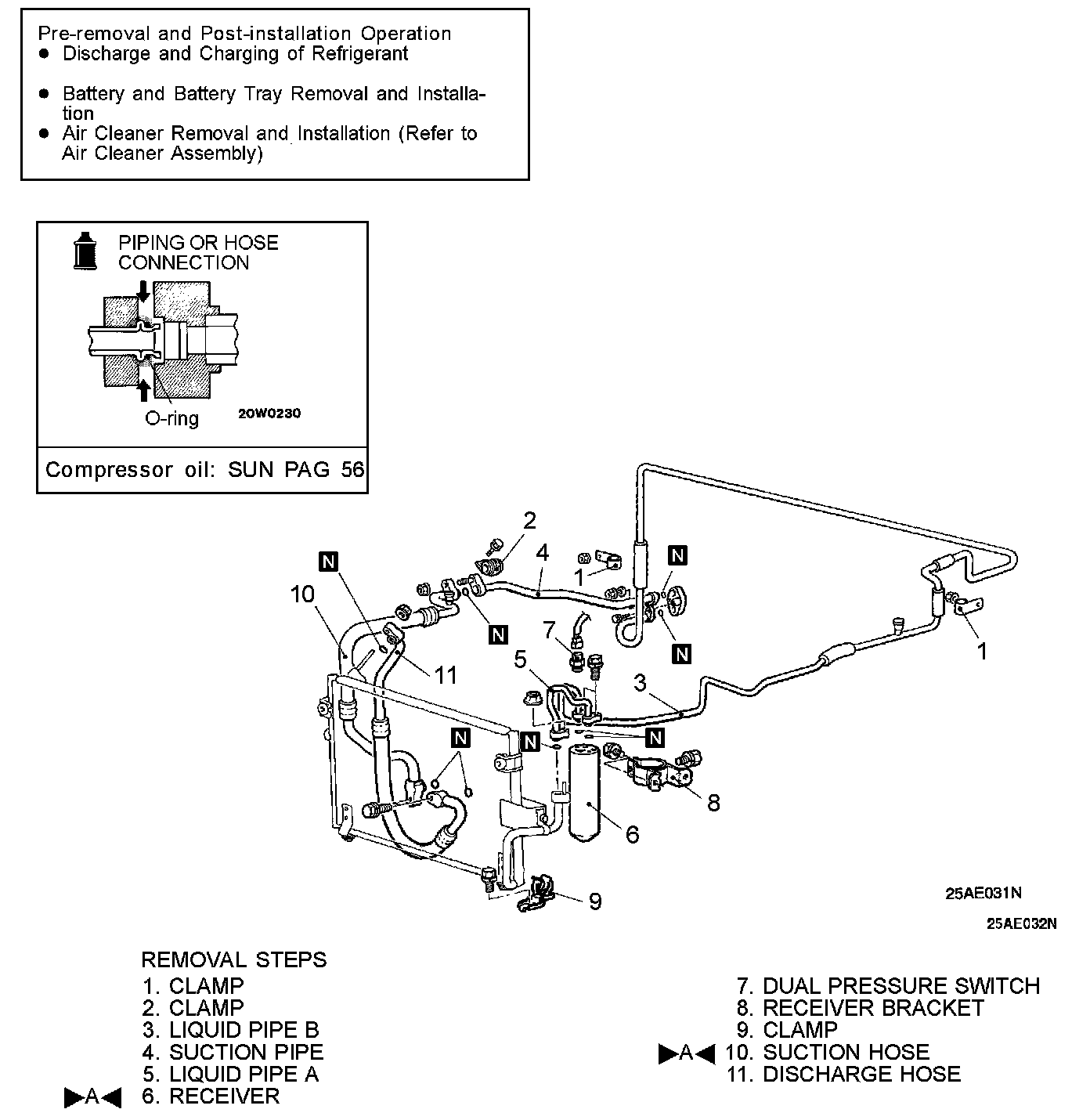

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>A< SUCTION HOSE, RECEIVER ASSEMBLY INSTALLATION
When replacing the suction hose, or the receiver assembly with new ones, refill them with a specified amount of compressor oil, and then install each of them.

Compressor oil: SUN PAG 56

Quantity:
Suction hose: 10 cu.cm (.3 fl.oz.)
Receiver: 10 cu.cm (.3 fl.oz.)
