Removal and Replacement

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
[A] COMPRESSOR/OIL PUMP (POWER STEERING) REMOVAL

Remove the oil pump and air conditioning compressor (with the hose attached).

NOTE: Suspend the removed compressor and oil pump by using wire or similar material) at a place where no damage will be caused during removal/installation of the engine assembly.

[B] ENGINE MOUNT BRACKET





1. Place a garage jack against the engine oil pan through a square bar so that the weight of the engine is not placed on the engine mount bracket.
2. Remove the special tool (used during removal of the transmission assembly).
3. Hold the engine assembly with a chain block.
4. Detach the engine mount bracket.

[C] ENGINE ASSEMBLY REMOVAL
1. Check that all cables, hoses, harness connectors, etc. are disconnected from the engine.
2. Lift the chain block slowly to remove the engine assembly upward from the engine compartment.

INSTALLATION SERVICE POINTS
]A[ ENGINE ASSEMBLY INSTALLATION
Install the engine assembly. When doing so, check carefully that all pipes and hoses are connected, and that none are twisted, damaged, etc.

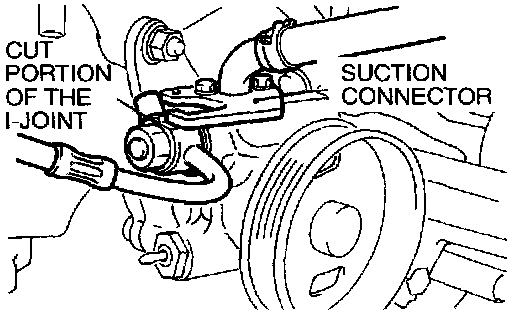

]B[ PRESSURE HOSE





1. Apply a small amount of new engine oil to the o-ring.
