Generator and Drive Belt

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

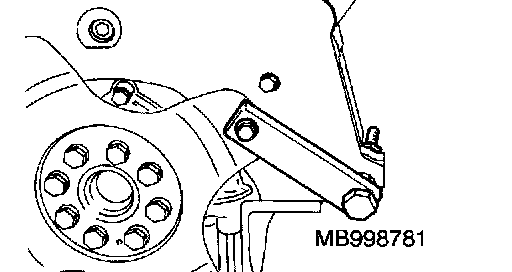

[A] CRANKSHAFT BOLT LOOSENING

1. Using the special tool, hold the drive plate.
2. Remove the crankshaft bolt.

INSTALLATION SERVICE POINT

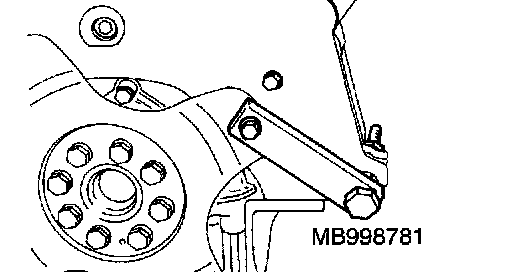

]A[ CRANKSHAFT BOLT TIGHTENING

1. Using the special tool, hold the drive plate or flywheel.
2. Install the crankshaft bolt.

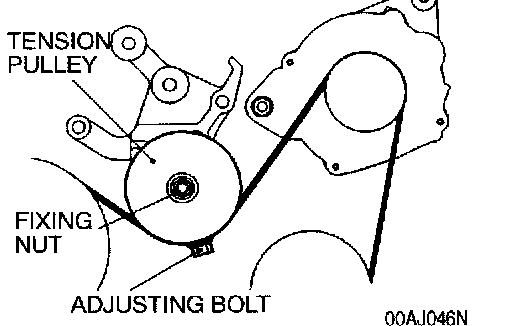

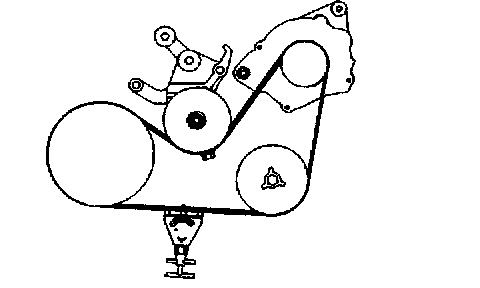

]B[ DRIVE BELT TENSION ADJUSTMENT

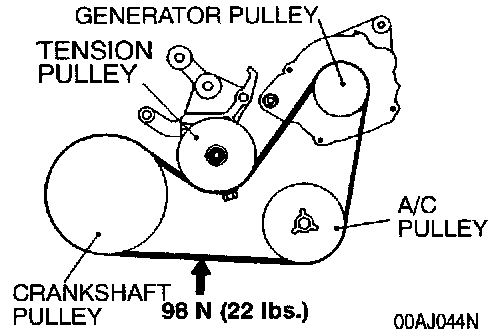

1. Use a belt tension gauge to check belt tension, or check deflection by applying 98 N (22 lbs.) to the shown point.

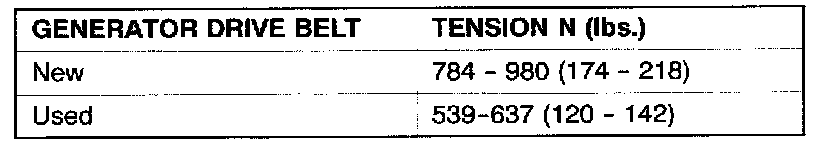

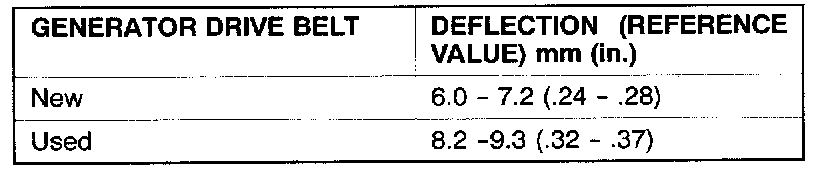

Standard value
