Cylinder Head Assembly: Service and Repair

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[A] CYLINDER HEAD ASSEMBLY REMOVAL





Using the special tool, after loosening the bolts (in 2 or 3 cycles), remove the cylinder head assembly.

INSTALLATION SERVICE POINTS
]A[ CYLINDER HEAD GASKET INSTALLATION





1. Degrease the mounting surface of the cylinder head gasket.

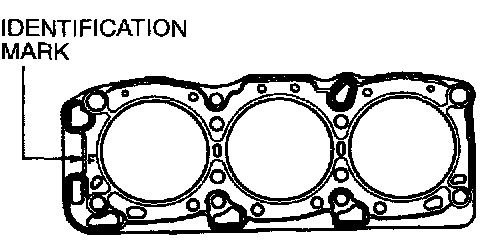

2. Lay the cylinder head gasket on cylinder block with the identification mark at front top.

]B[ CYLINDER HEAD ASSEMBLY INSTALLATION

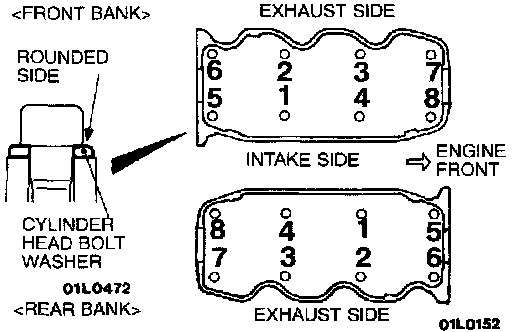

Using the special tool, tighten the bolts in the order shown in two or three steps.

CAUTION: Attach the head bolt washer in the direction shown in the figure.
