Radiator: Service and Repair

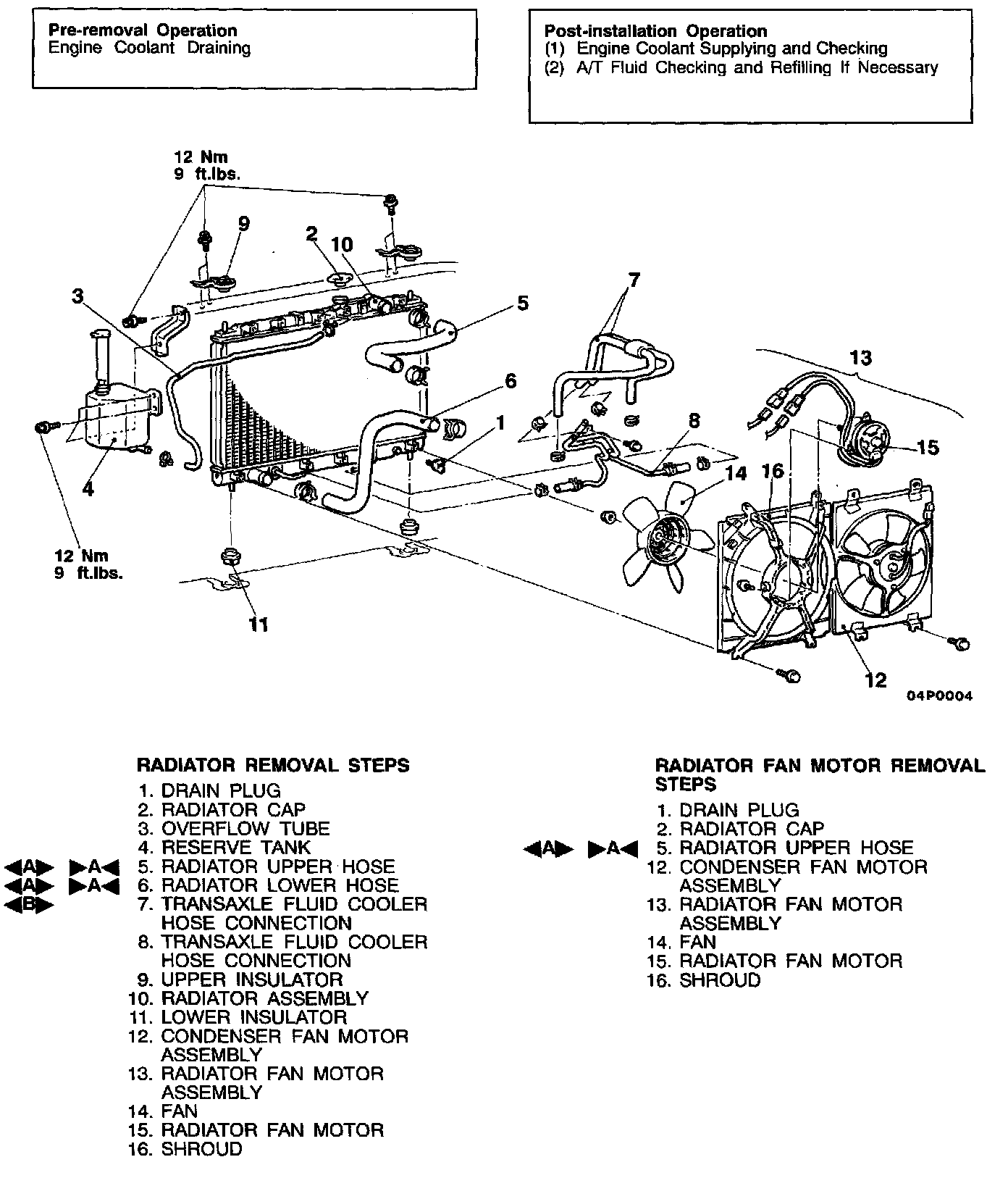

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
[A] RADIATOR UPPER HOSE/RADIATOR LOWER HOSE DISCONNECTION





After making mating marks on the radiator hose and the hose clamp, disconnect the radiator hose.

[B] TRANSAXLE FLUID COOLER HOSE REMOVAL
After removing the hose from the radiator, plug the hose and the radiator nipple to prevent dust or foreign particles from getting in.

INSTALLATION SERVICE POINT
]A[ RADIATOR LOWER HOSE/RADIATOR UPPER HOSE CONNECTION





1. Insert each hose as far as the projection of the water outlet fitting or water inlet fitting.





2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.

INSPECTION
RADIATOR FAN MOTOR CHECK

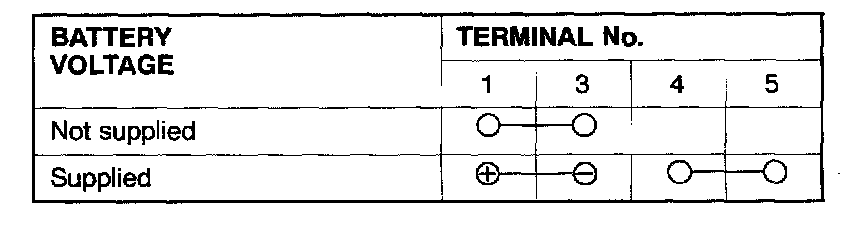

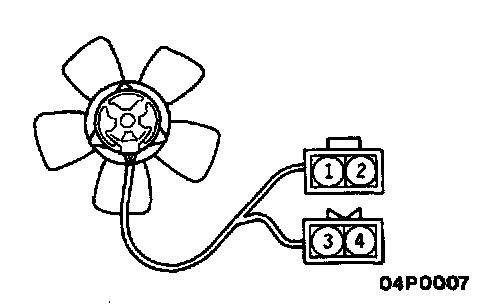

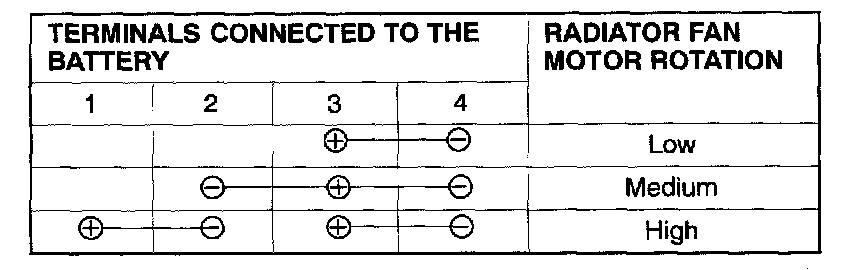

1. Check to be sure that the radiator fan rotates when battery voltage is applied between terminals.
2. Check to see that abnormal noises are not produced, while motor is turning.








RADIATOR RELAY CONTINUITY CHECK
