Diamante V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Wheel Hub
>>
Front Axle
>>
Disassembly and Assembly
Disassembly and Assembly

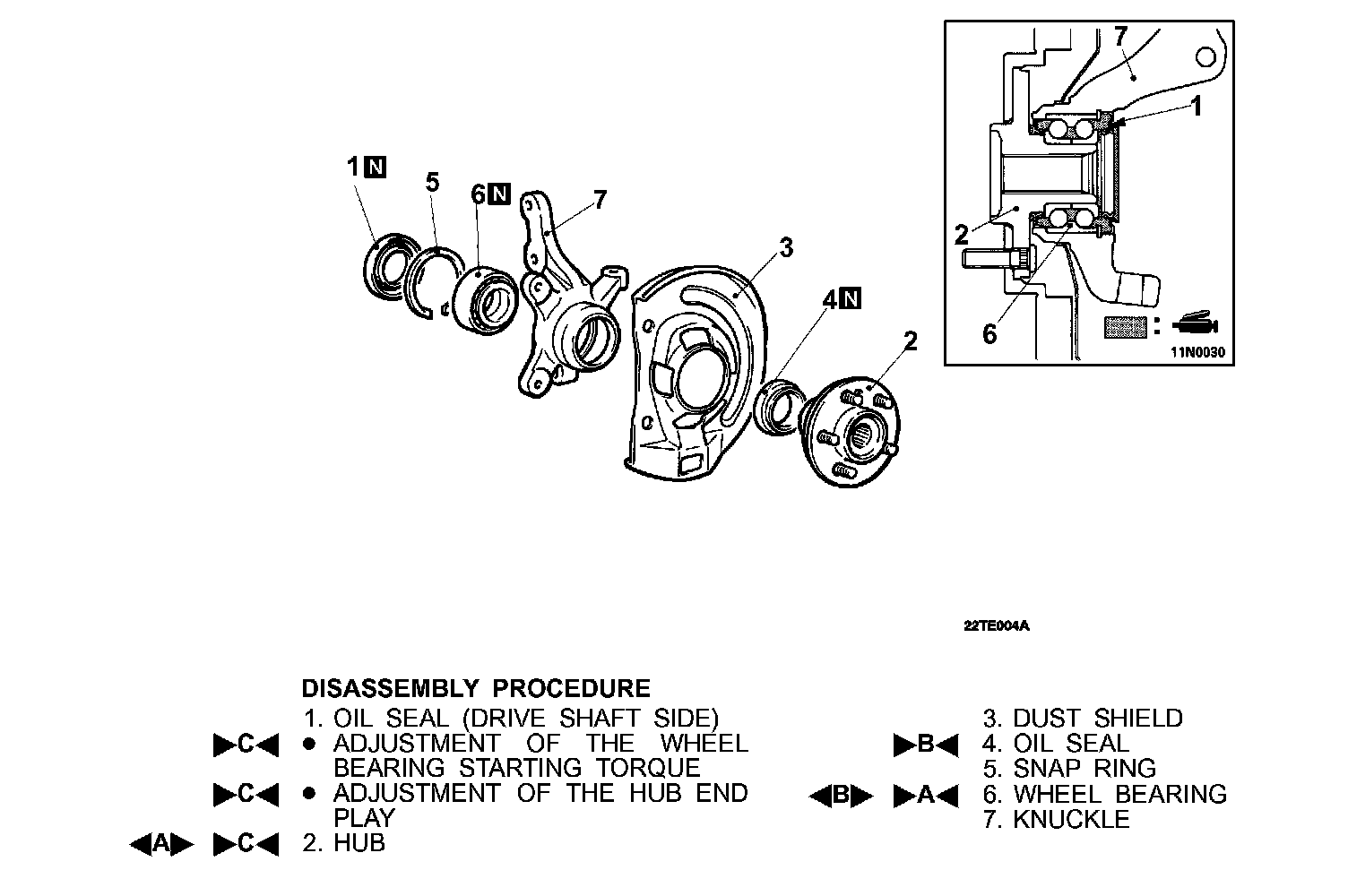

FRONT HUB AND KNUCKLE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
