Windows

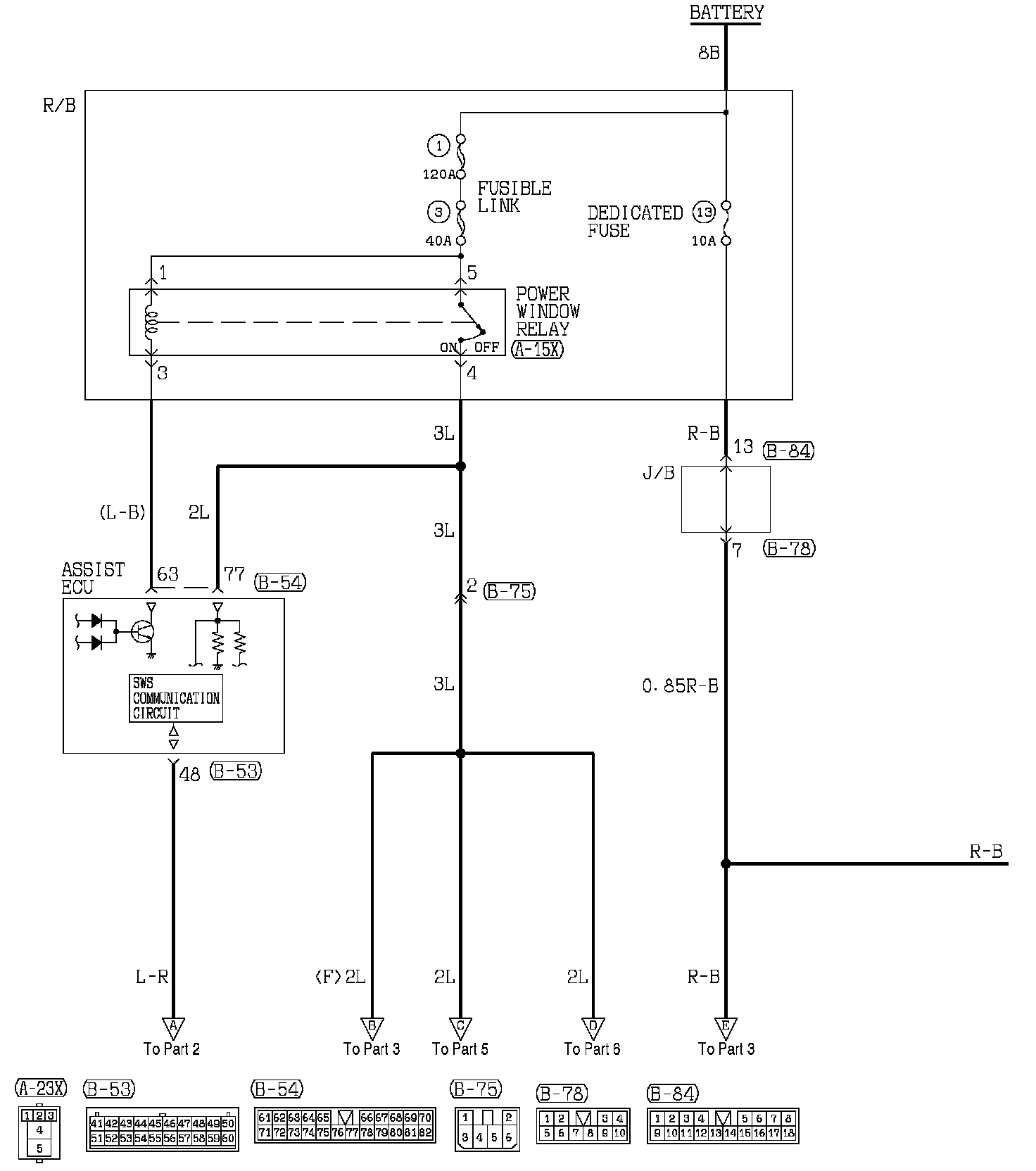

Power Window Part 1:

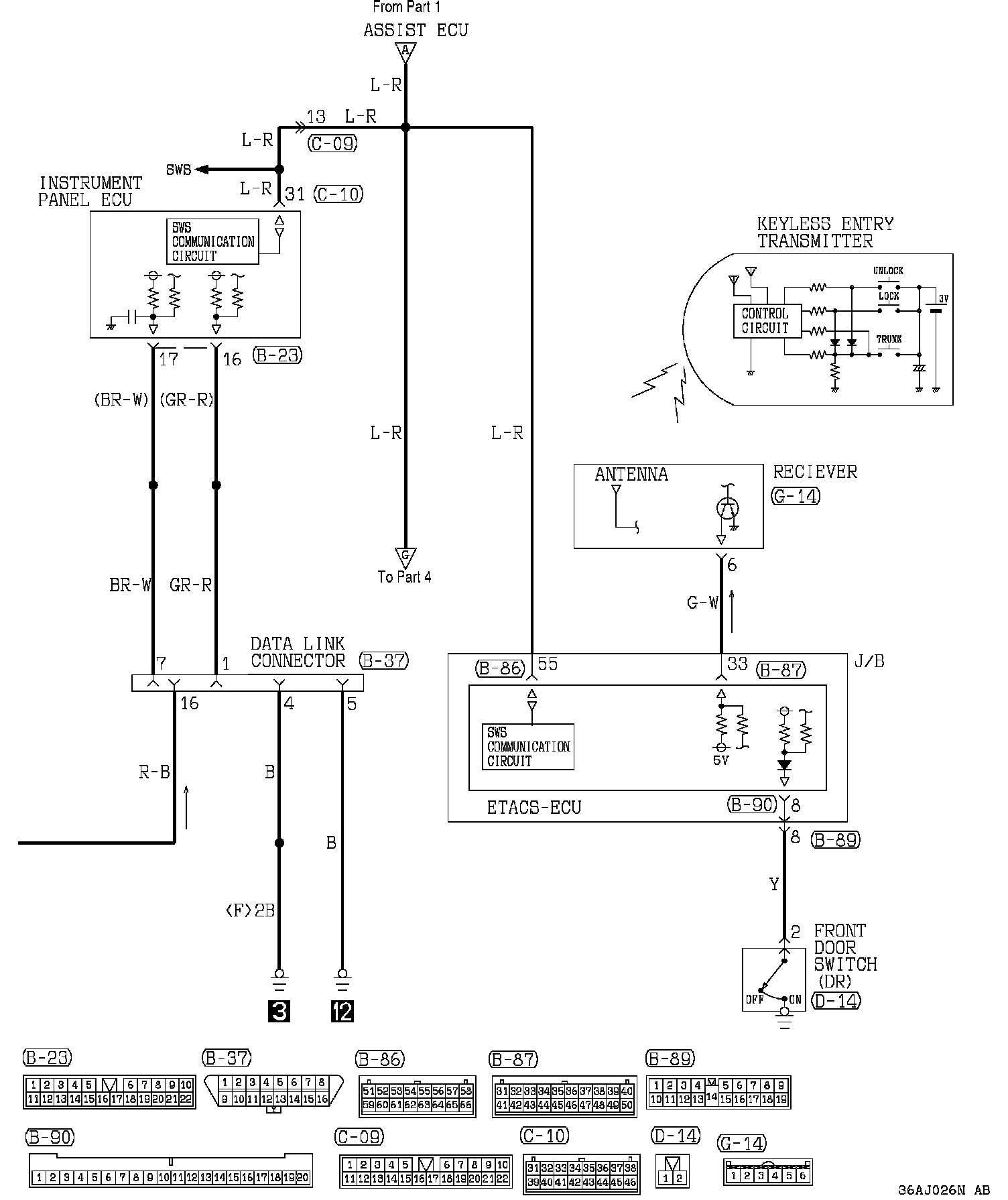

Power Window Part 2:

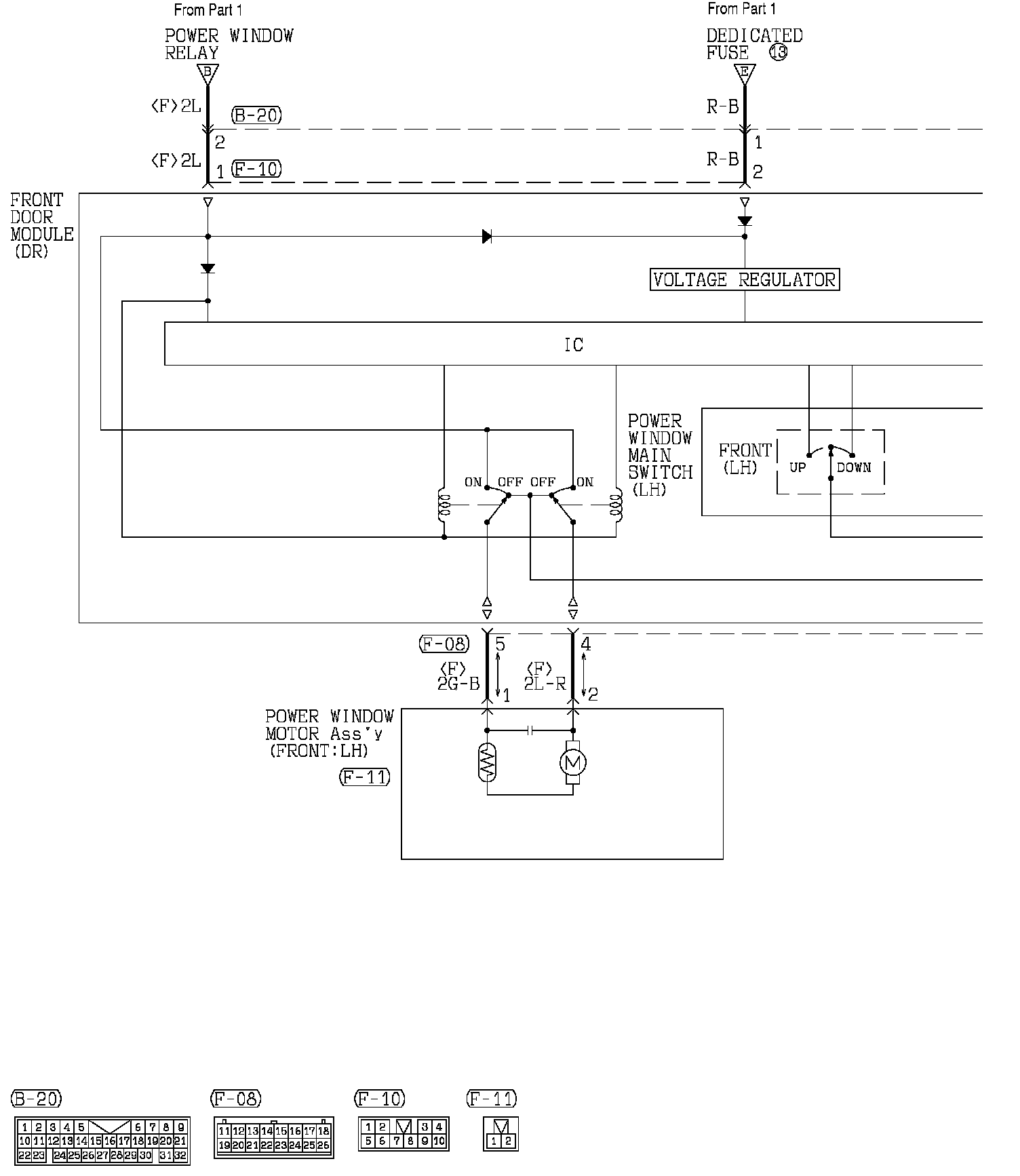

Power Window Part 3:

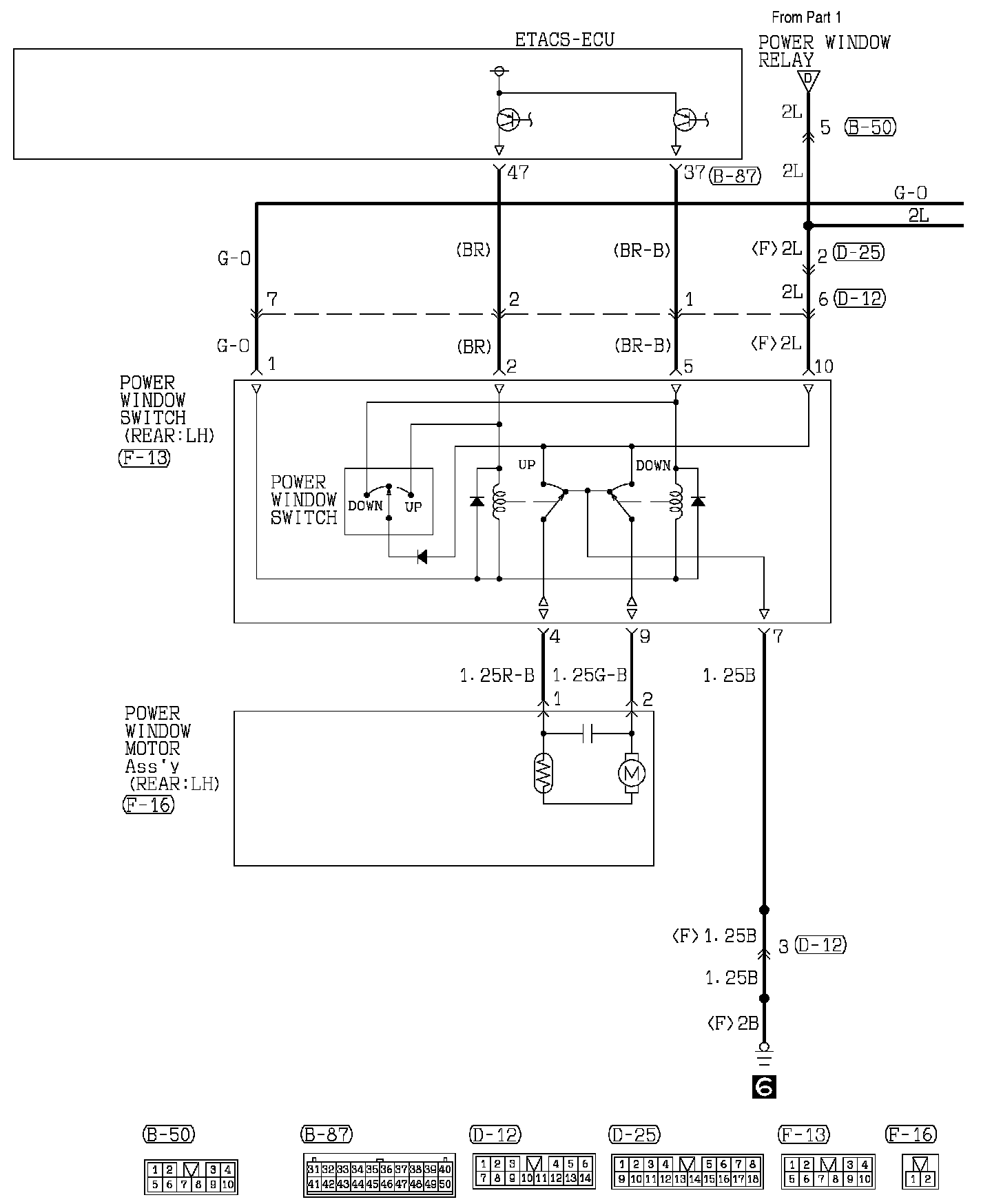

Power Window Part 4:

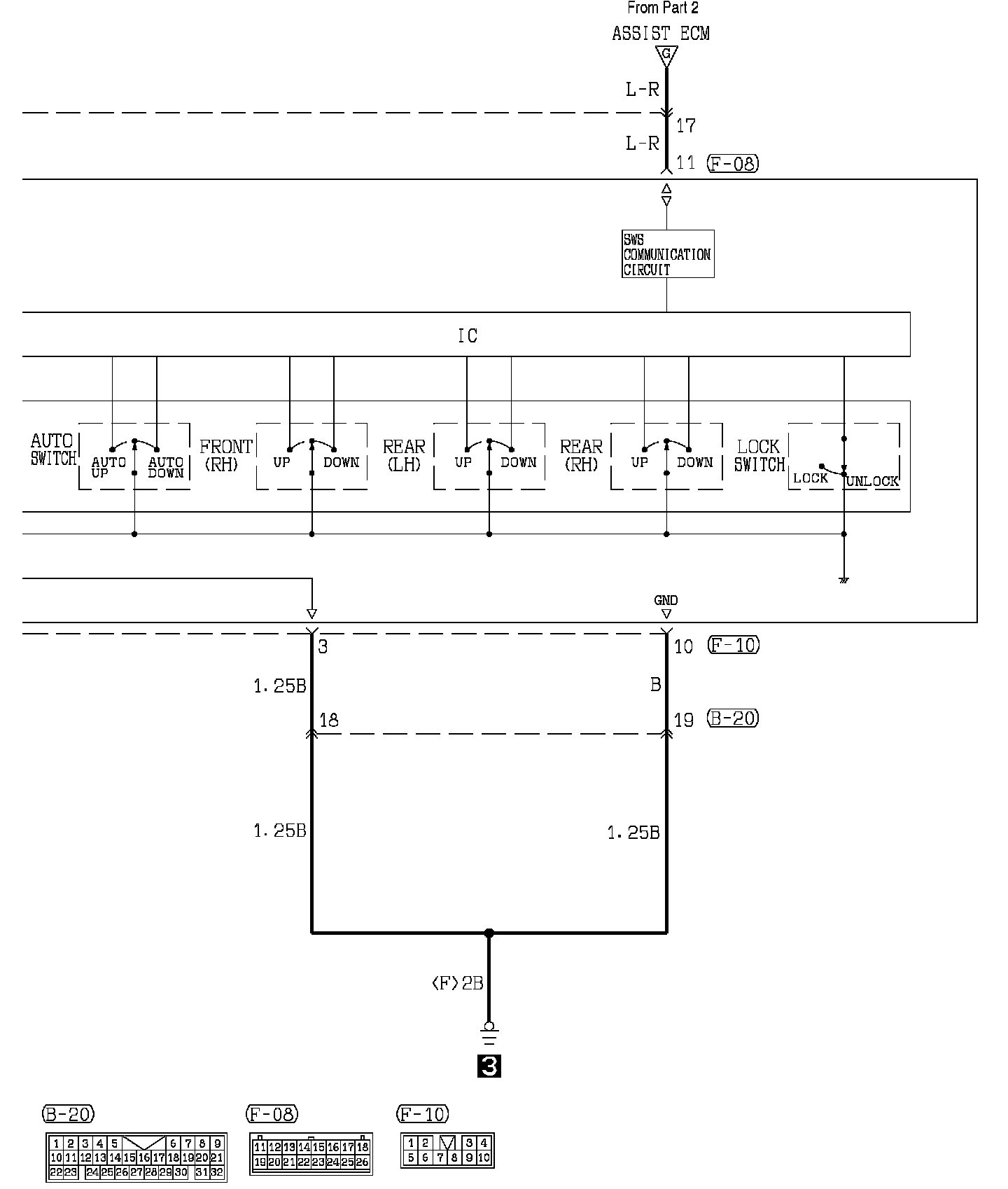

Power Window Part 5:

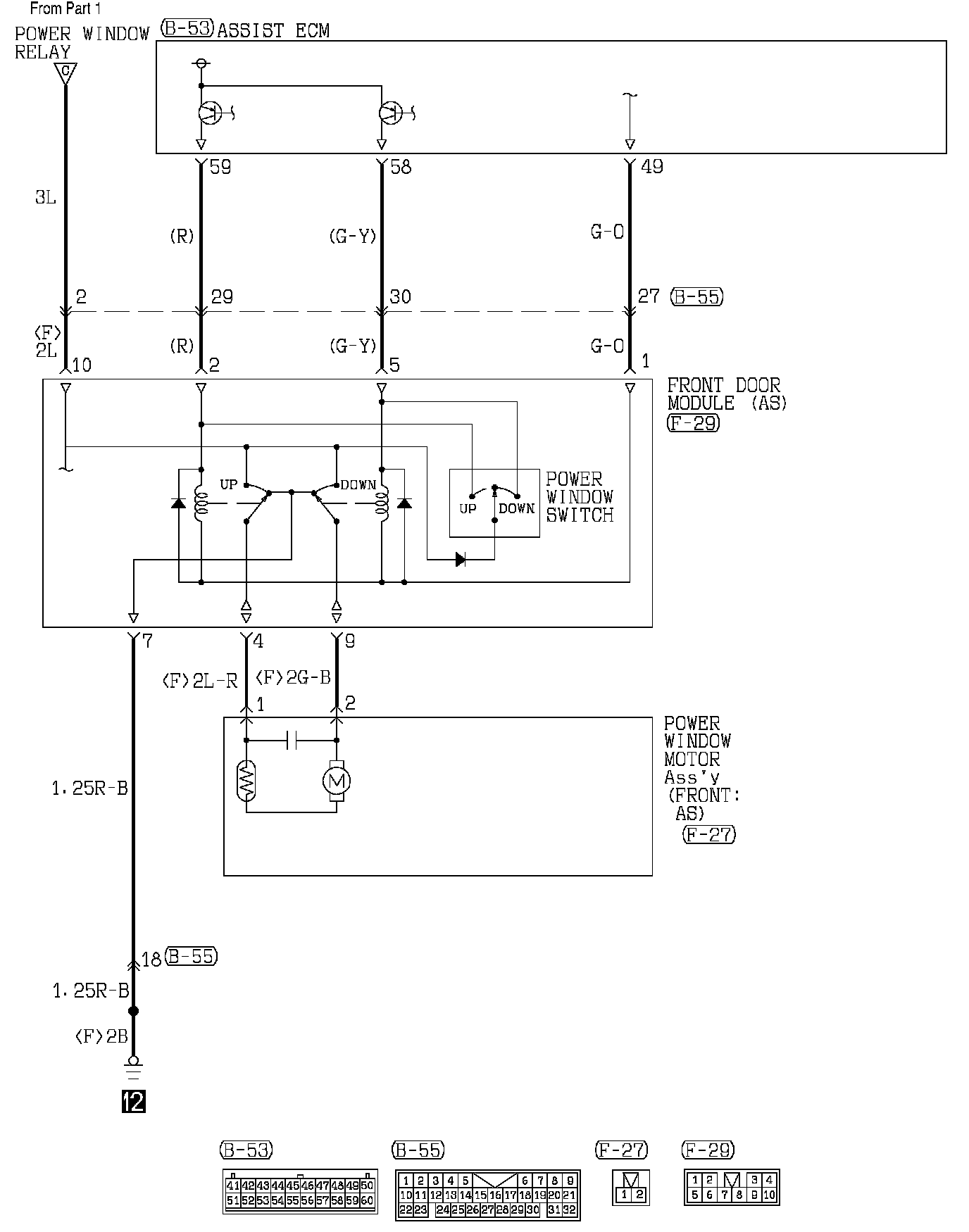

Power Window Part 6:

Power Window Part 7:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
