System Diagram

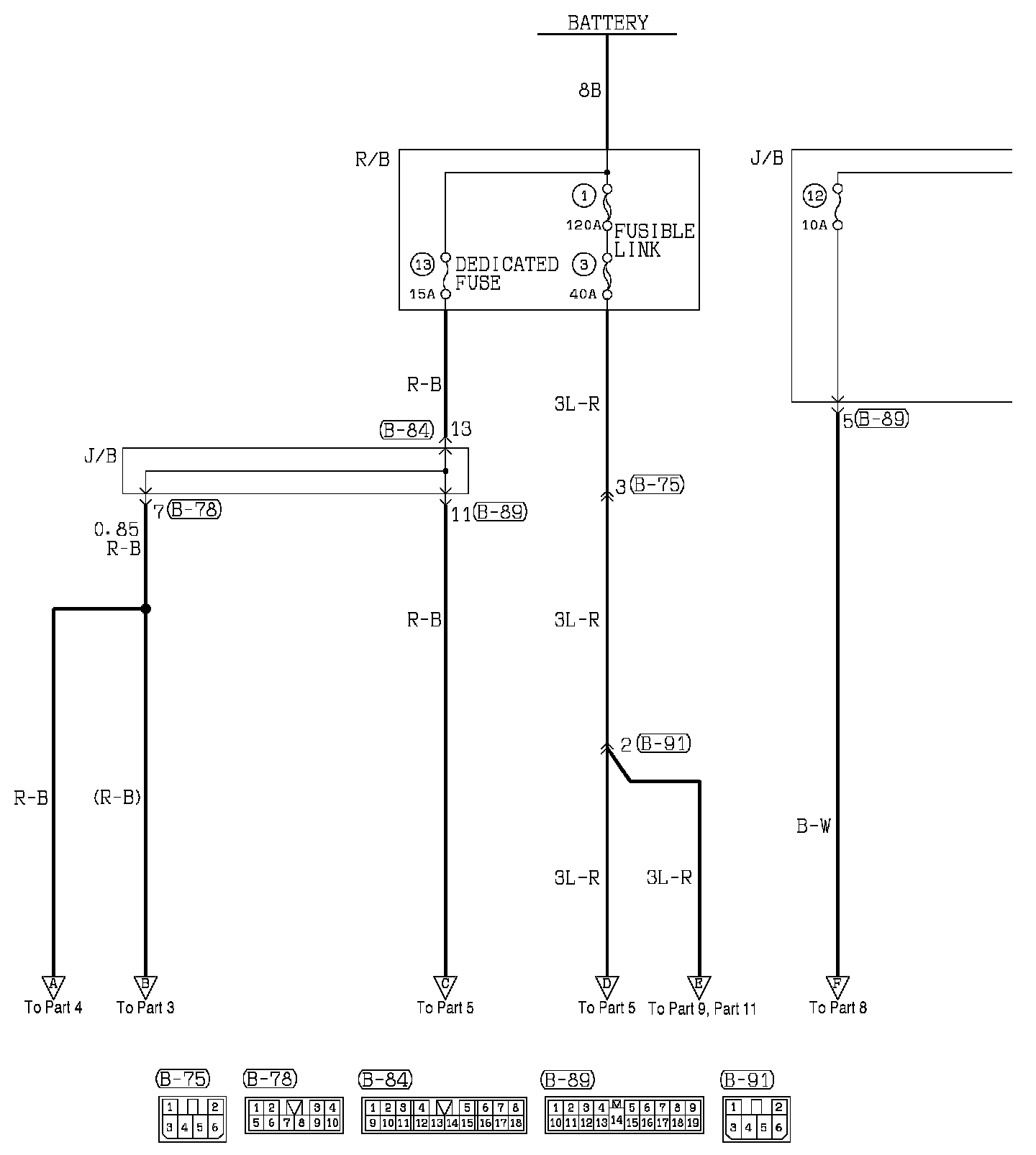

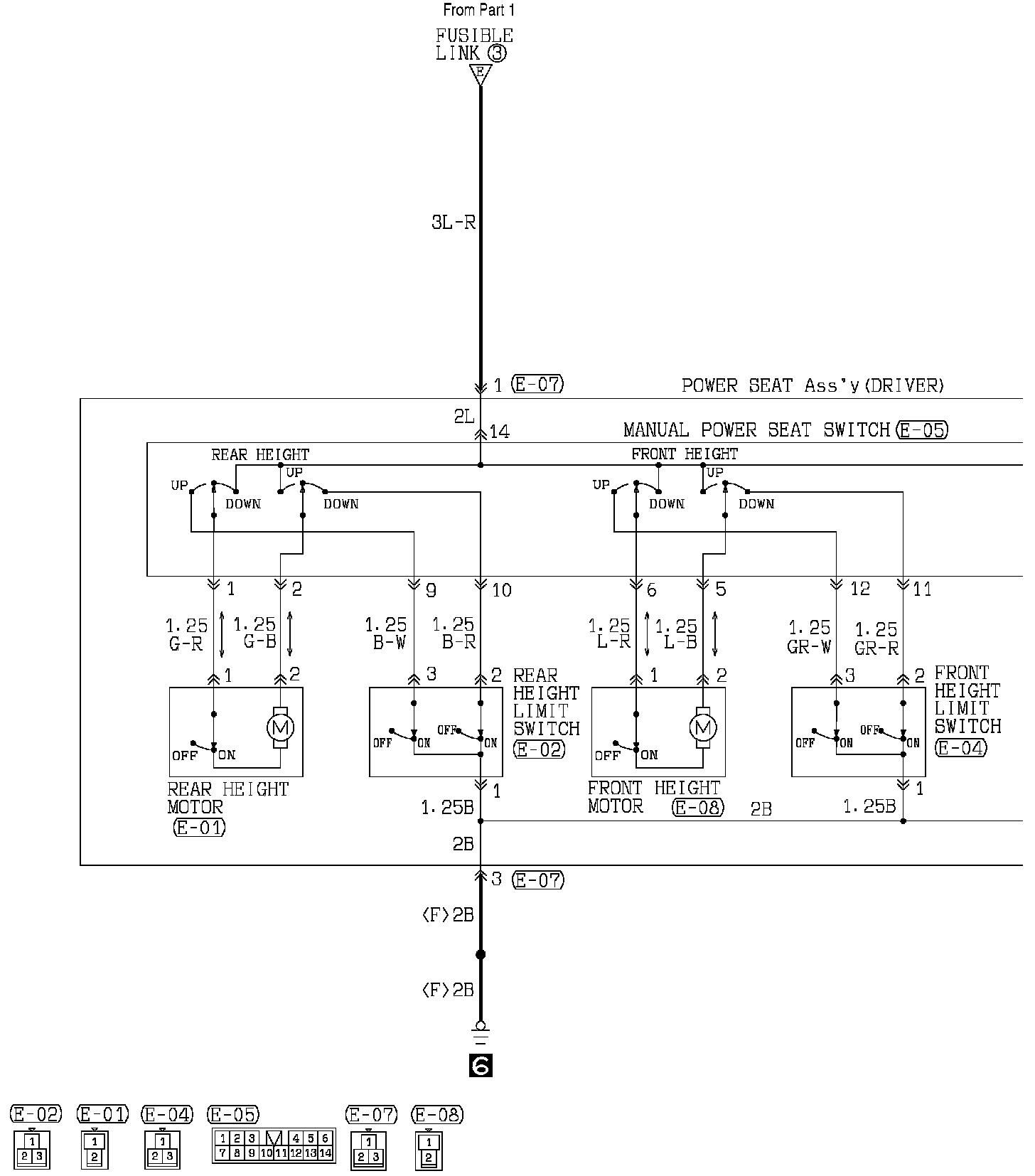

Power Seat Part 1:

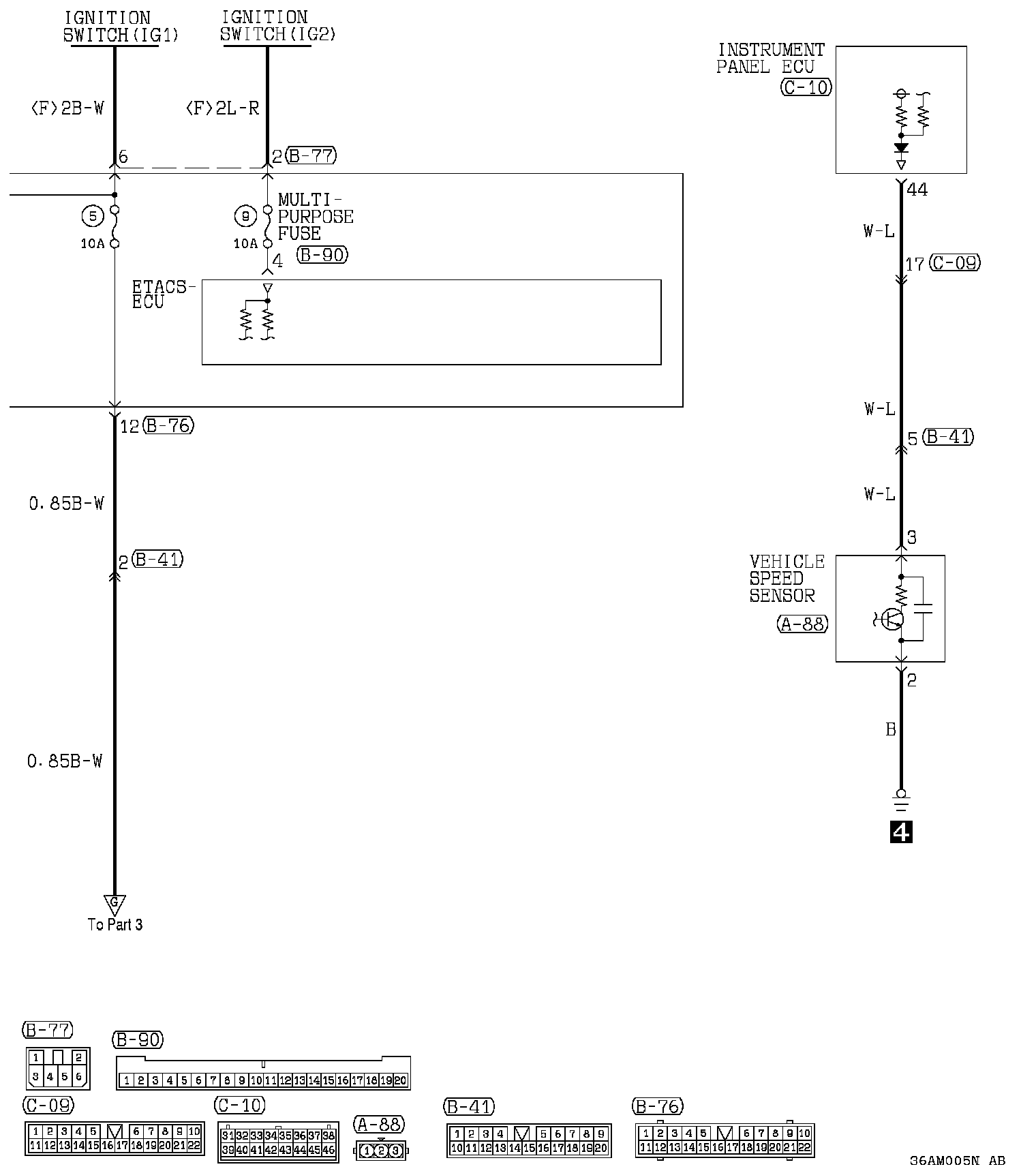

Power Seat Part 2:

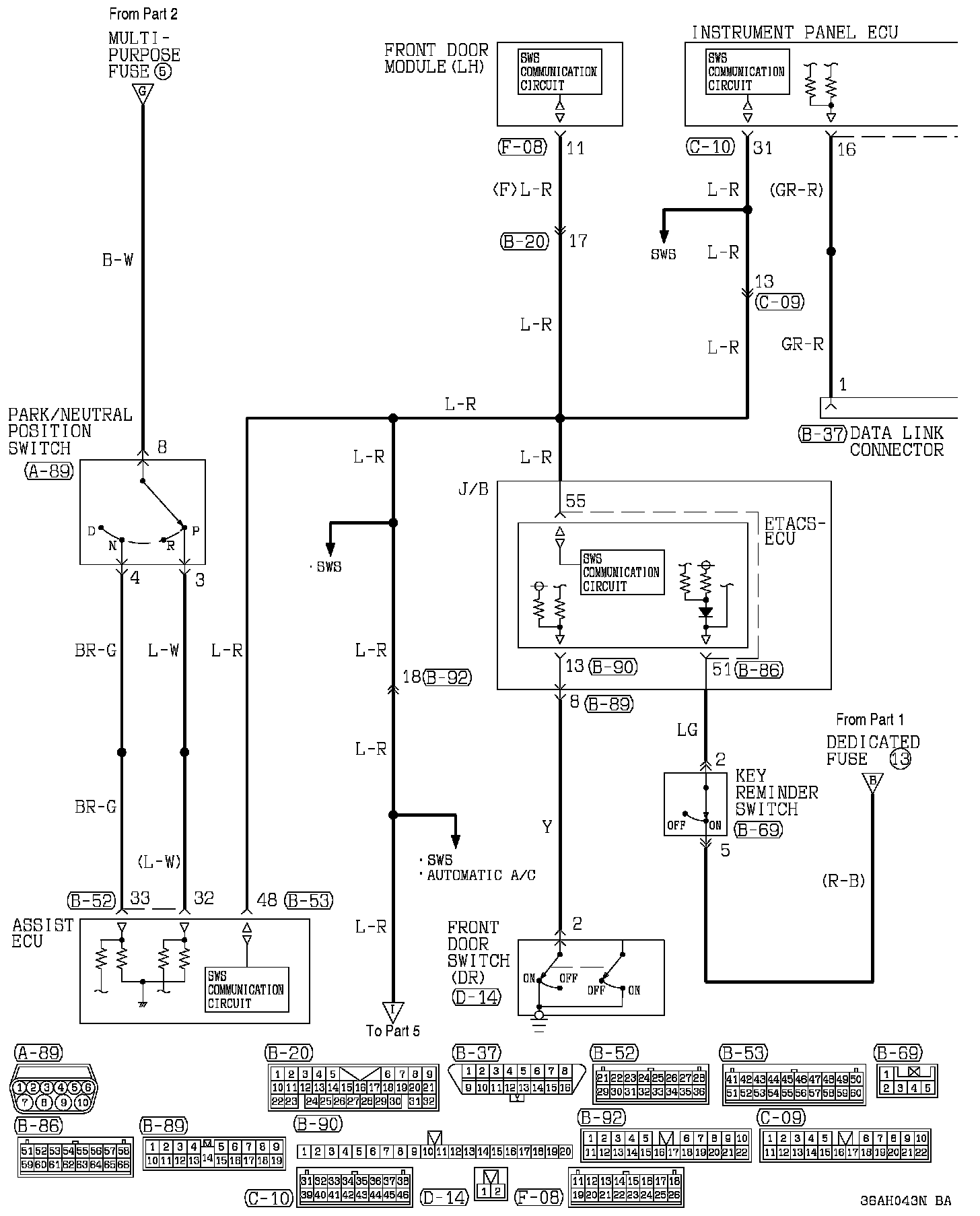

Power Seat Part 3:

Power Seat Part 4:

Power Seat Part 5:

Power Seat Part 6:

Power Seat Part 7:

Power Seat Part 8:

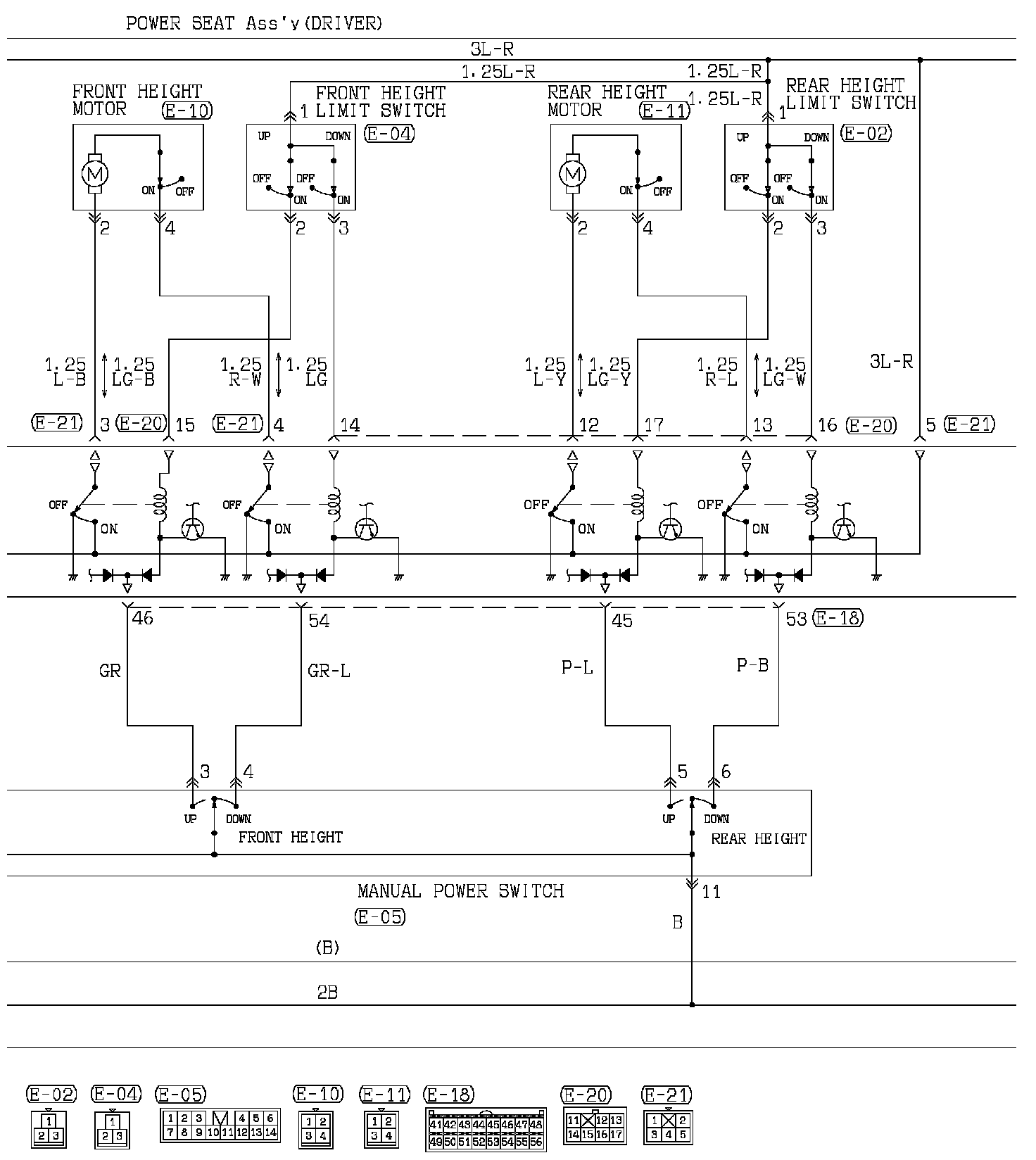

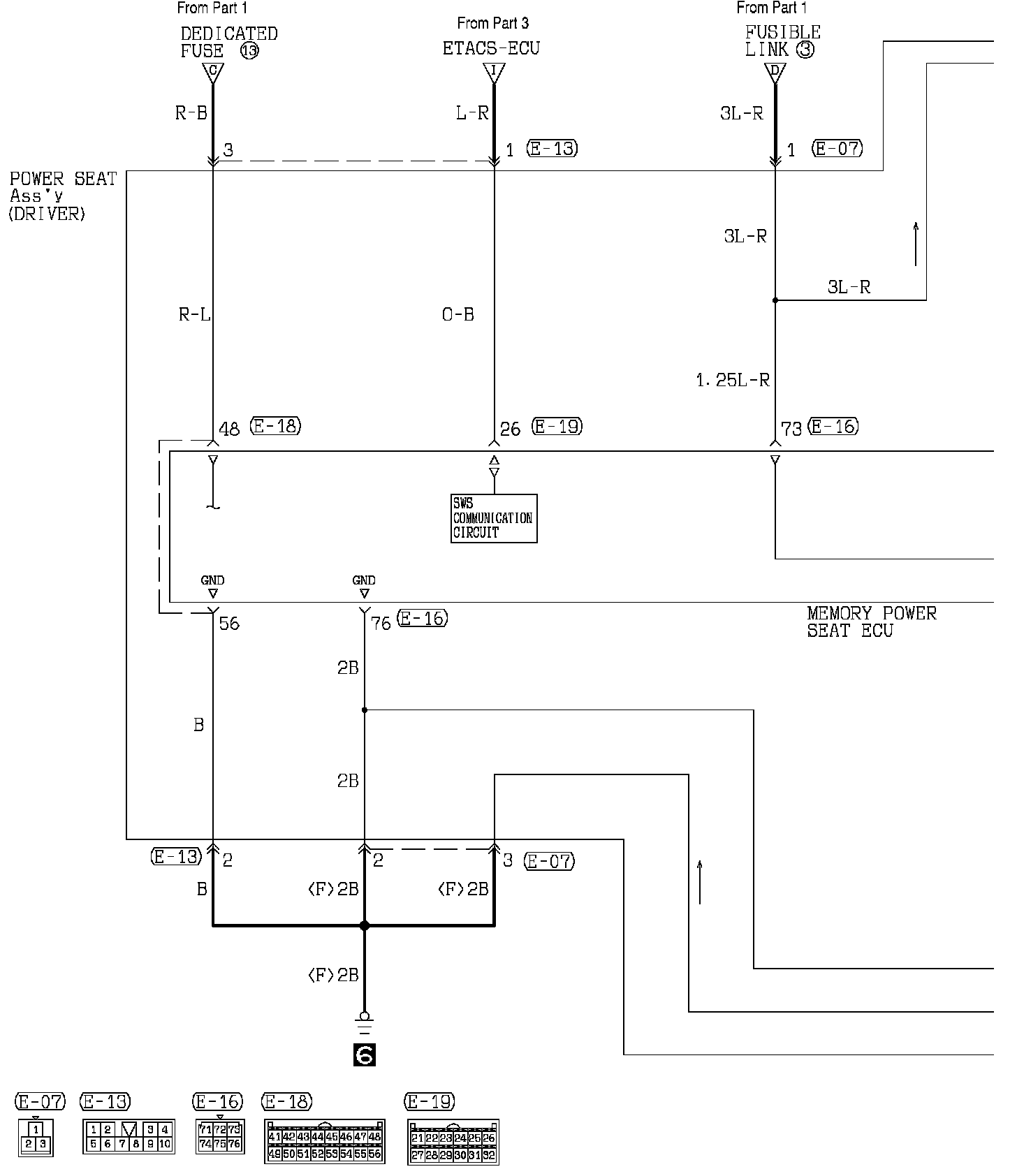

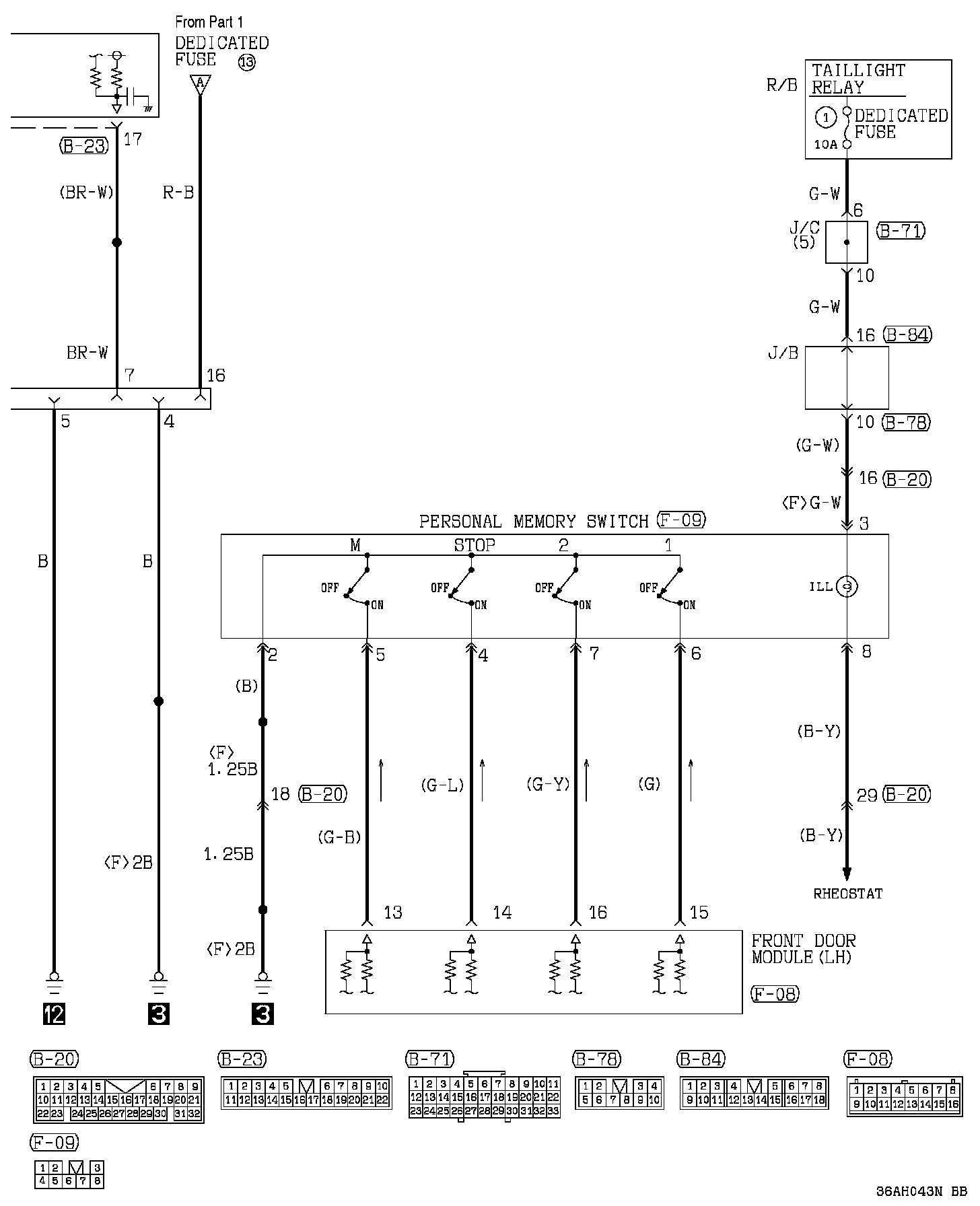

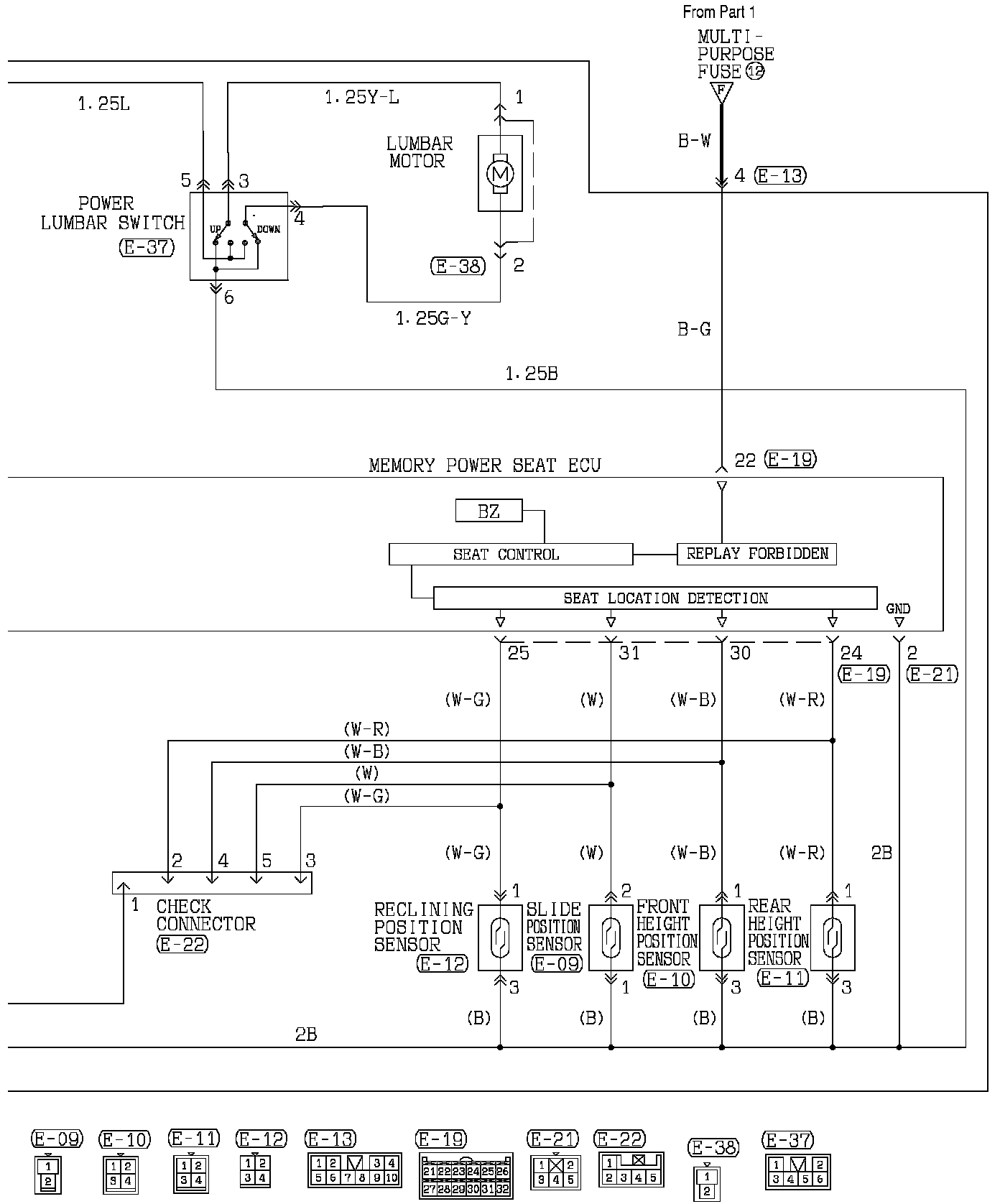

Power Seat (Driver) Part 9:

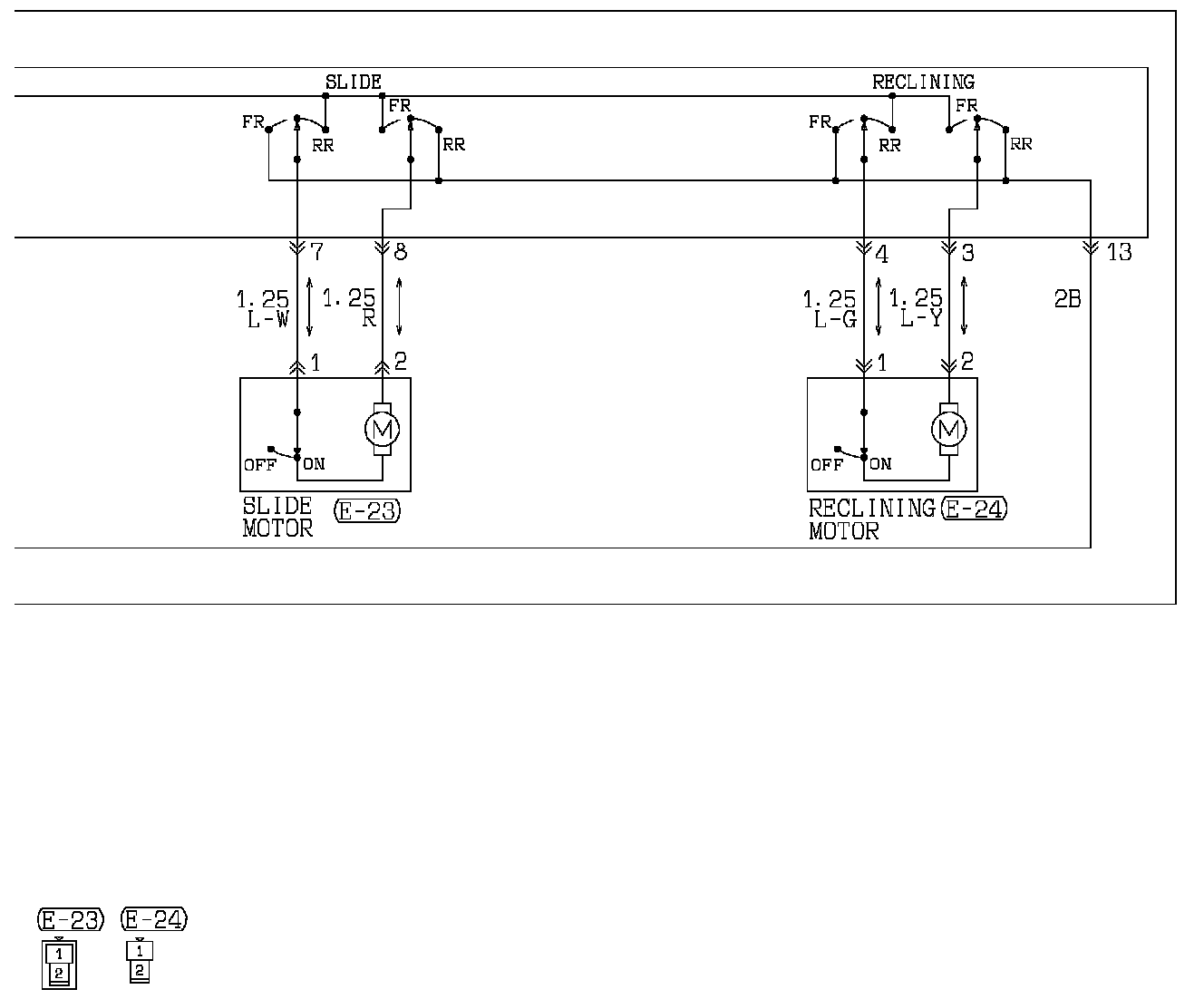

Power Seat (Driver) Part 10:

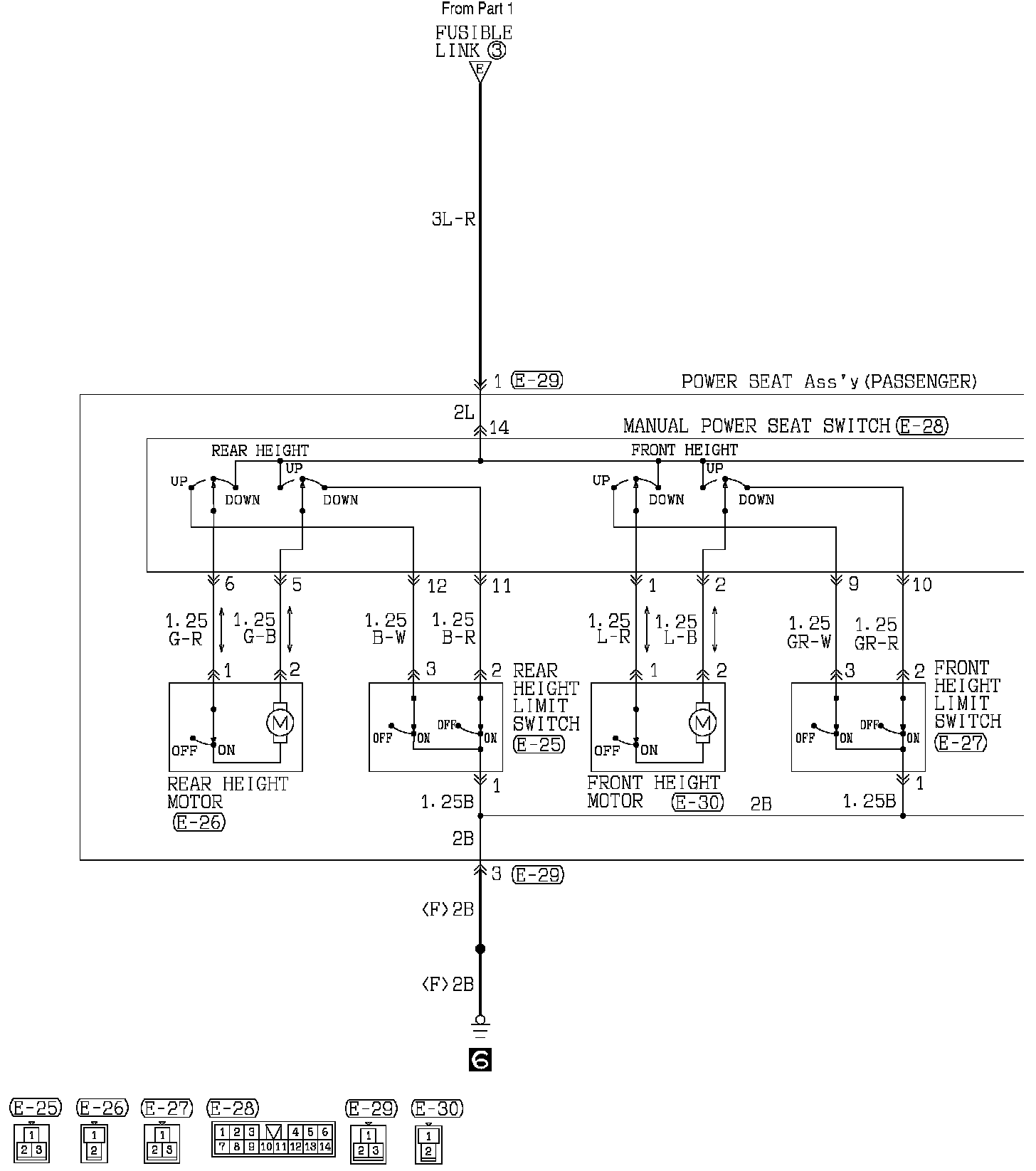

Power Seat (Passenger) Part 11:

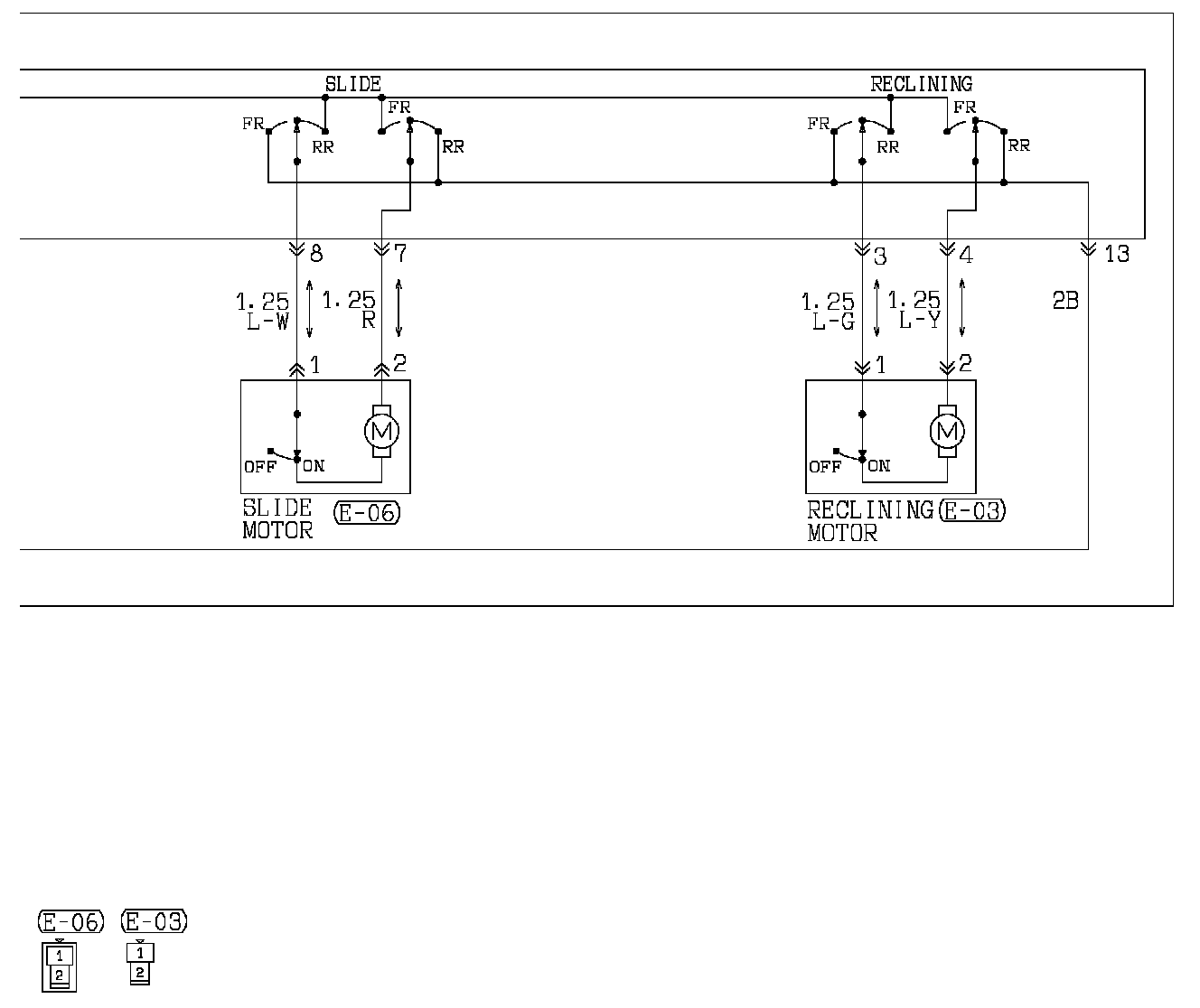

Power Seat (Passenger) Part 12:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
