Traction Control System

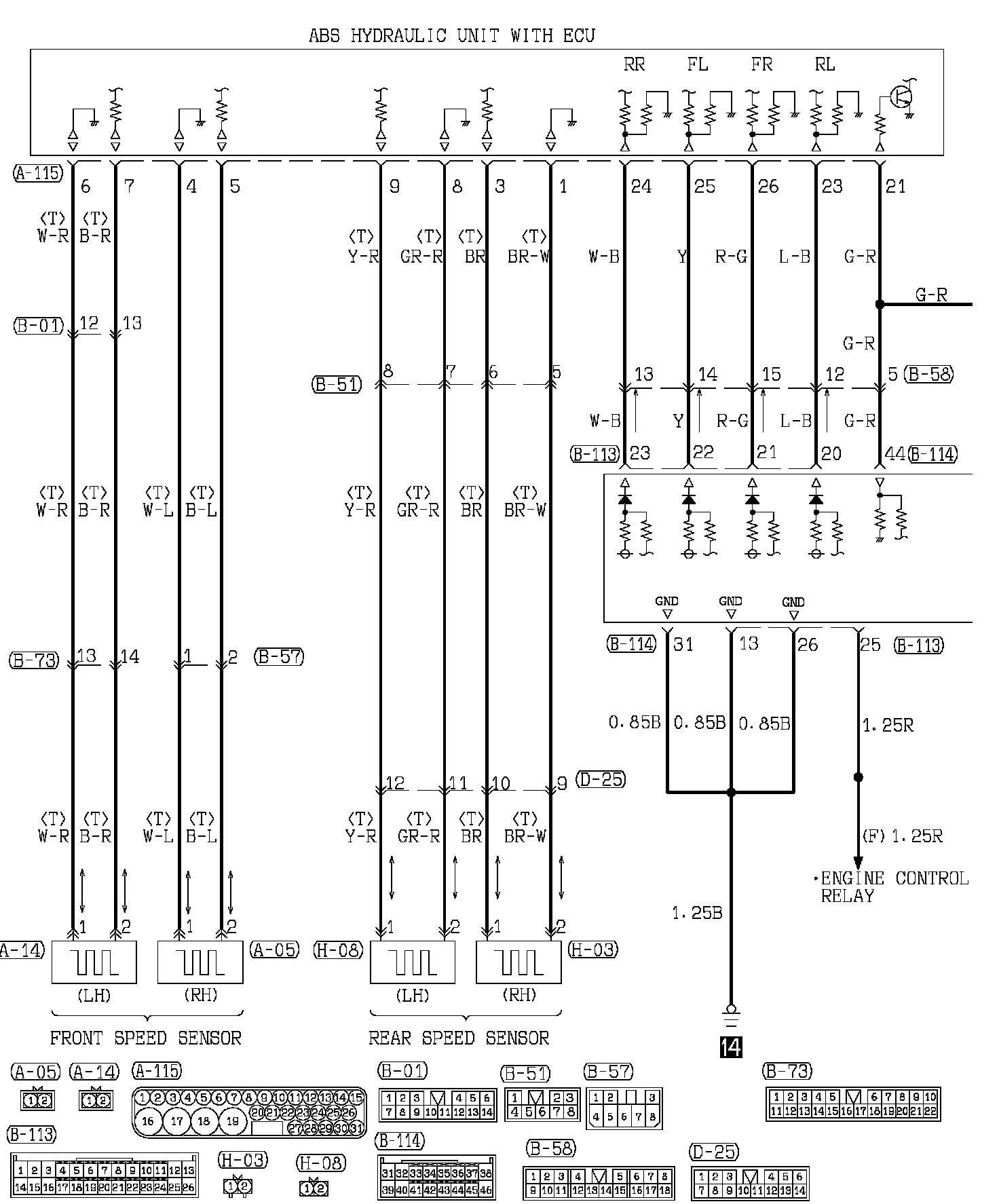

Traction Control System Part 1:

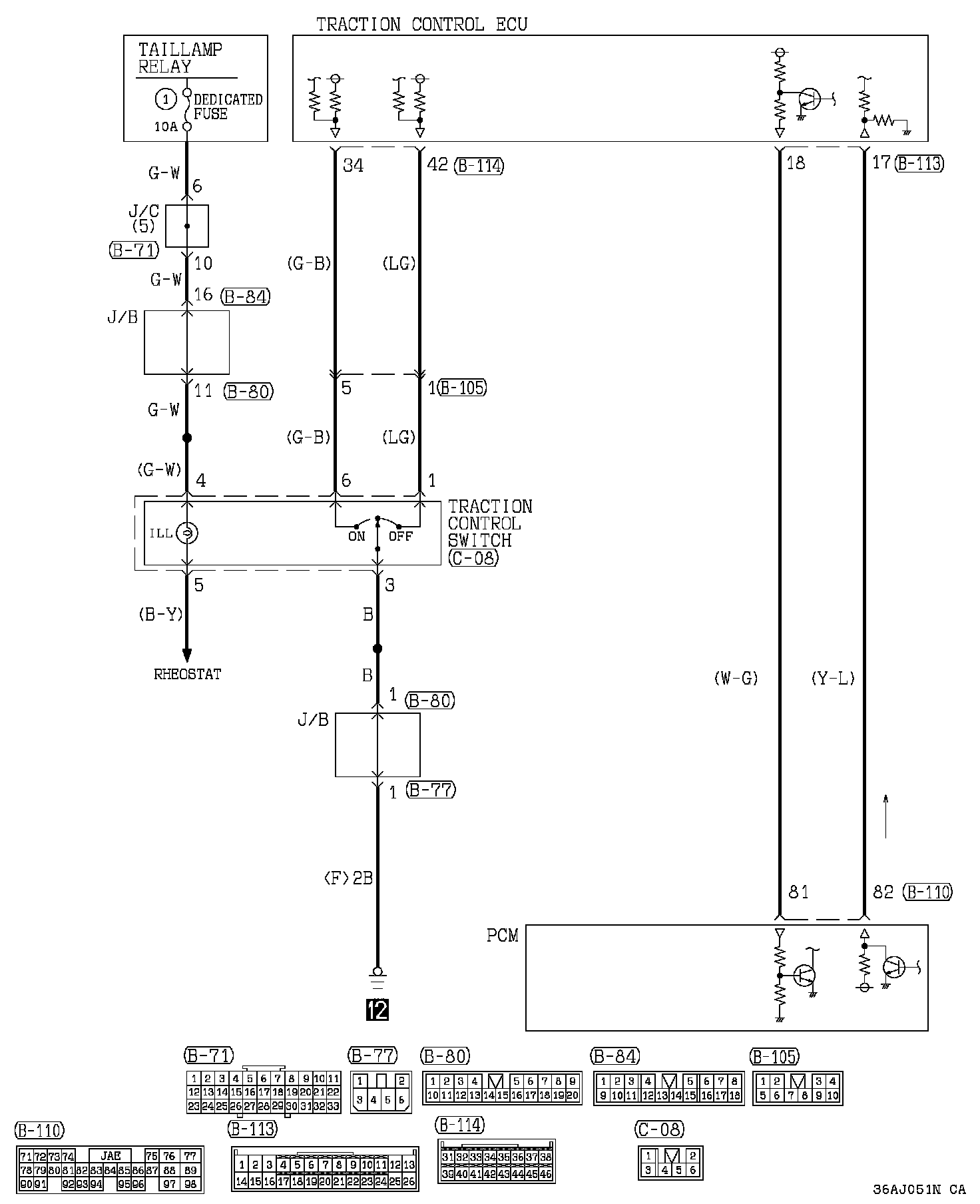

Traction Control System Part 2:

Traction Control System Part 3:

Traction Control System Part 4:

Traction Control System Part 5:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
