Vacuum Pump: Testing and Inspection

"The contents of this article/image reflects the changes called out by TSB - 03-17-006"





AUTO-CRUISE VACUUM PUMP

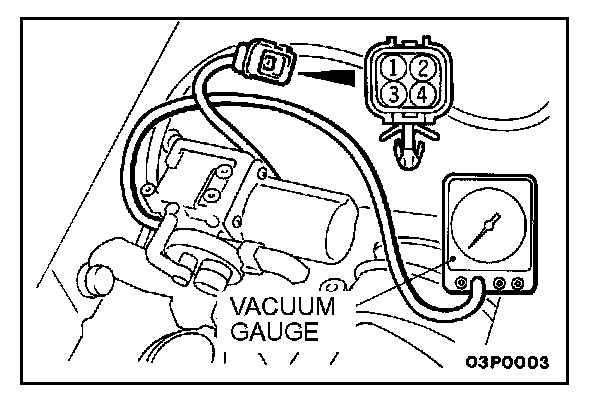

1. Disconnect the vacuum hose from the electric vacuum pump and connect a vacuum gauge to the vacuum pump.
2. Disconnect the electric vacuum pump connector.

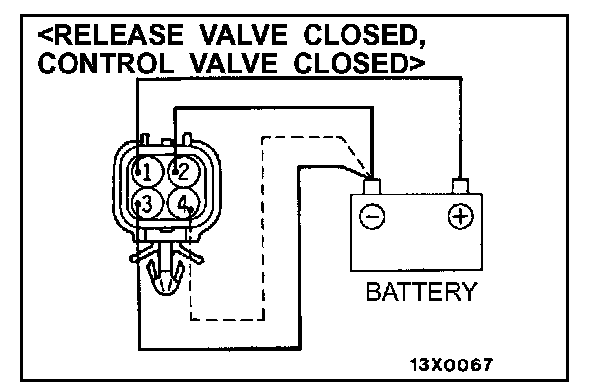

3. Connect terminal (1) to the battery (+) terminal, and connect terminals (2) and (3) to the battery (-) terminal.
4. Check to be sure that the vacuum gauge shows a reading of 27 kPa (200mmkg Hg, 7.87in Hg) or more within 3 seconds when terminal (4) is connected to the battery (-) terminal.

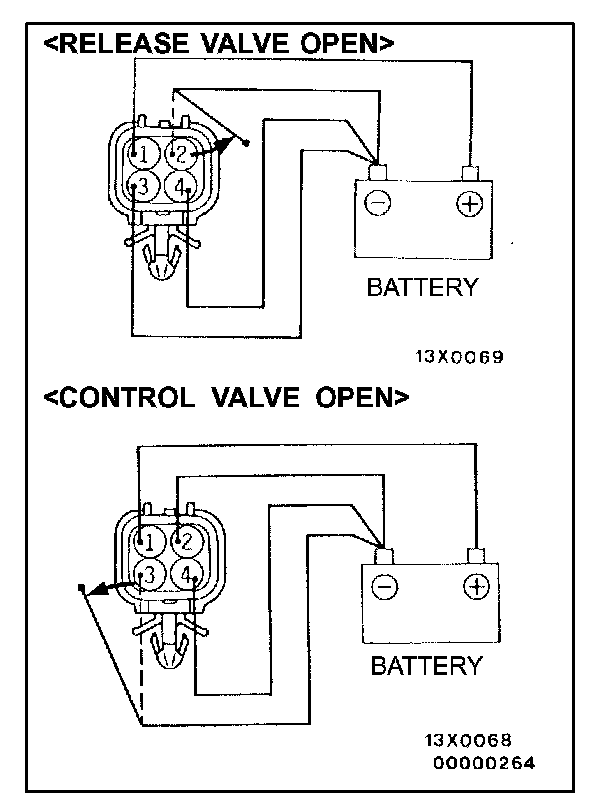

5. In this condition, check to be sure that the vacuum gauge shows a 20 kPa (150 mmHg, 6 in.Hg) or less when terminals (2) and (3) are disconnected from the battery.
