Inspection Procedure 9

Auto-cruise control indicator inside combination meter does not illuminate. (However, auto-cruise control is normal.)

Comment
The cause is probably a malfunction of bulb or a malfunction of connector or harness.

Probable cause
- Malfunction of the bulb
- Malfunction of the harness
- Malfunction of the connector
- Malfunction of the auto-cruise control-ECU
- Malfunction of the Assist-ECU

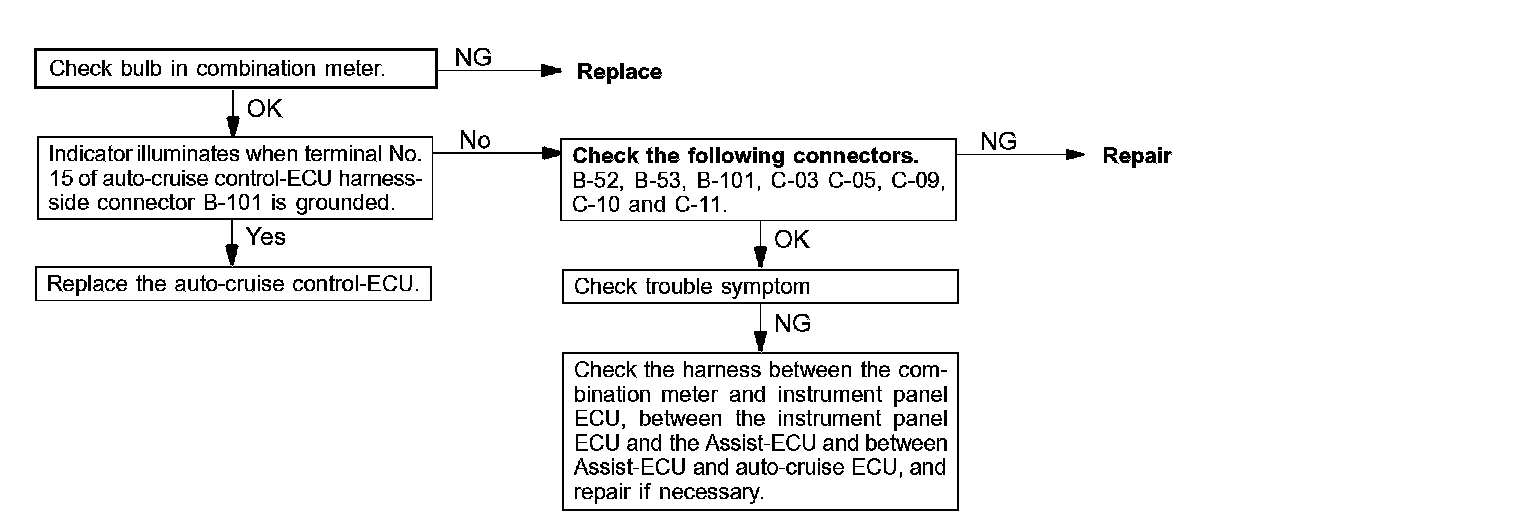

Inspection Procedure 9:
