Pinout Values and Diagnostic Parameters

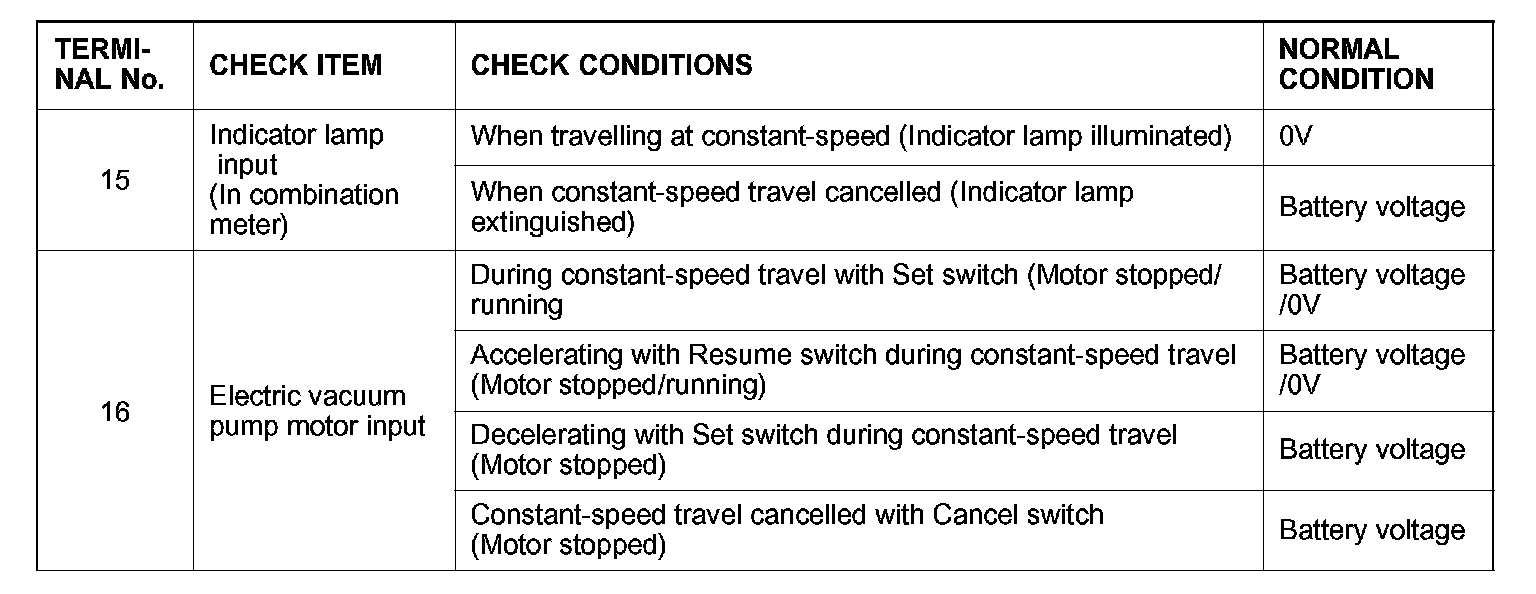

Check At ECU Terminals Part - 1:



Check At ECU Terminals Part - 2:
