Electrical Diagrams

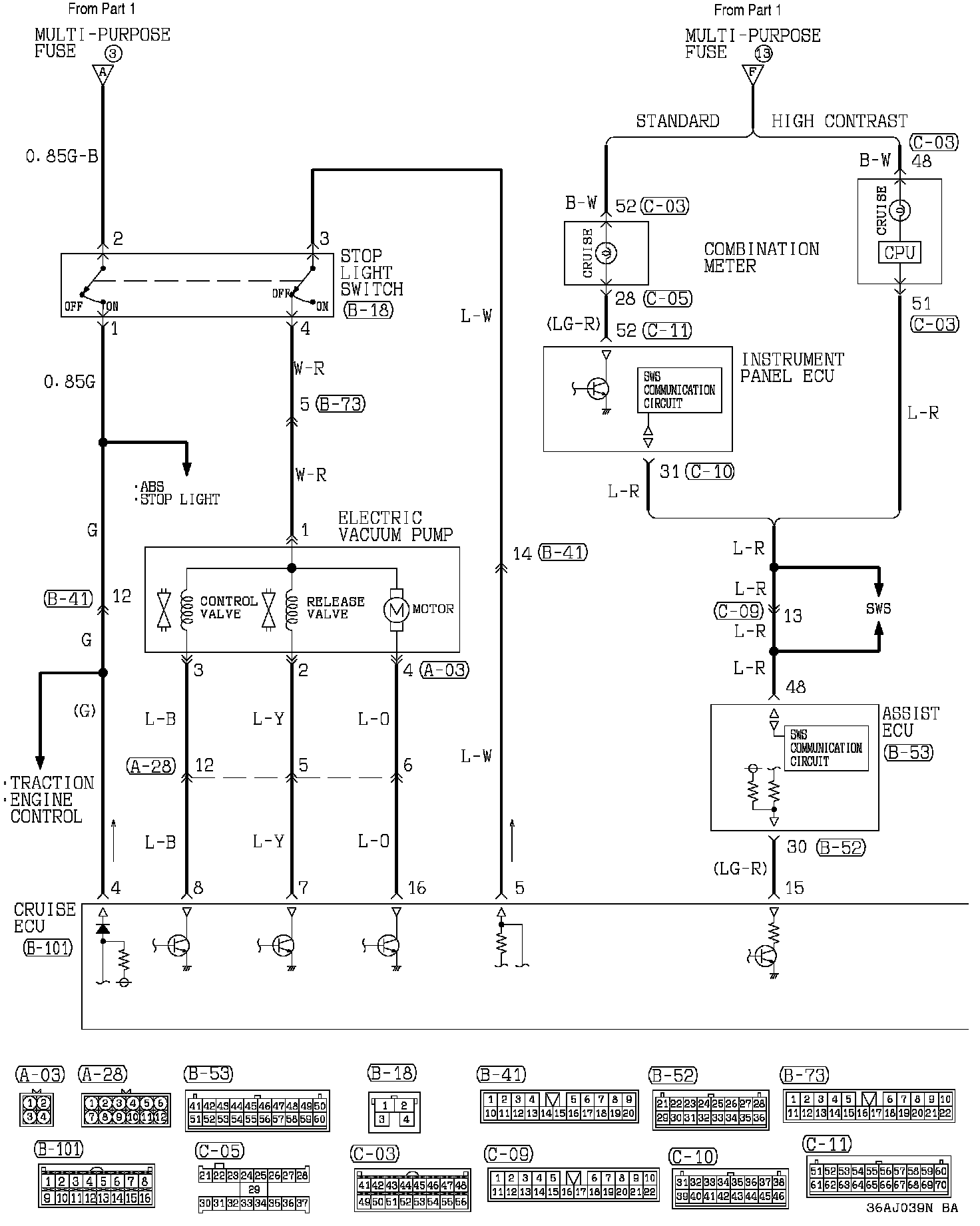

Auto-Cruise Control Part 1:

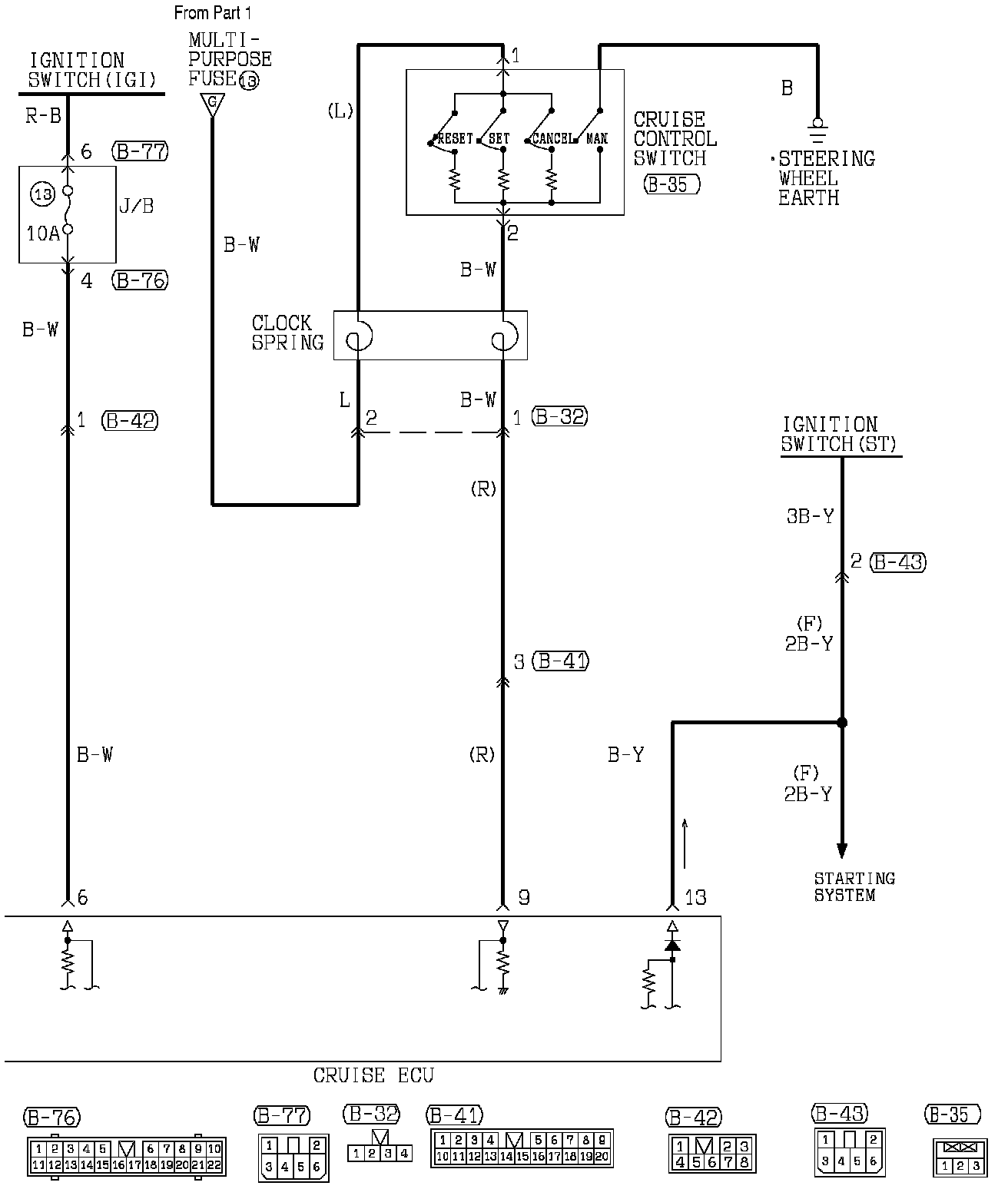

Auto-Cruise Control Part 2:

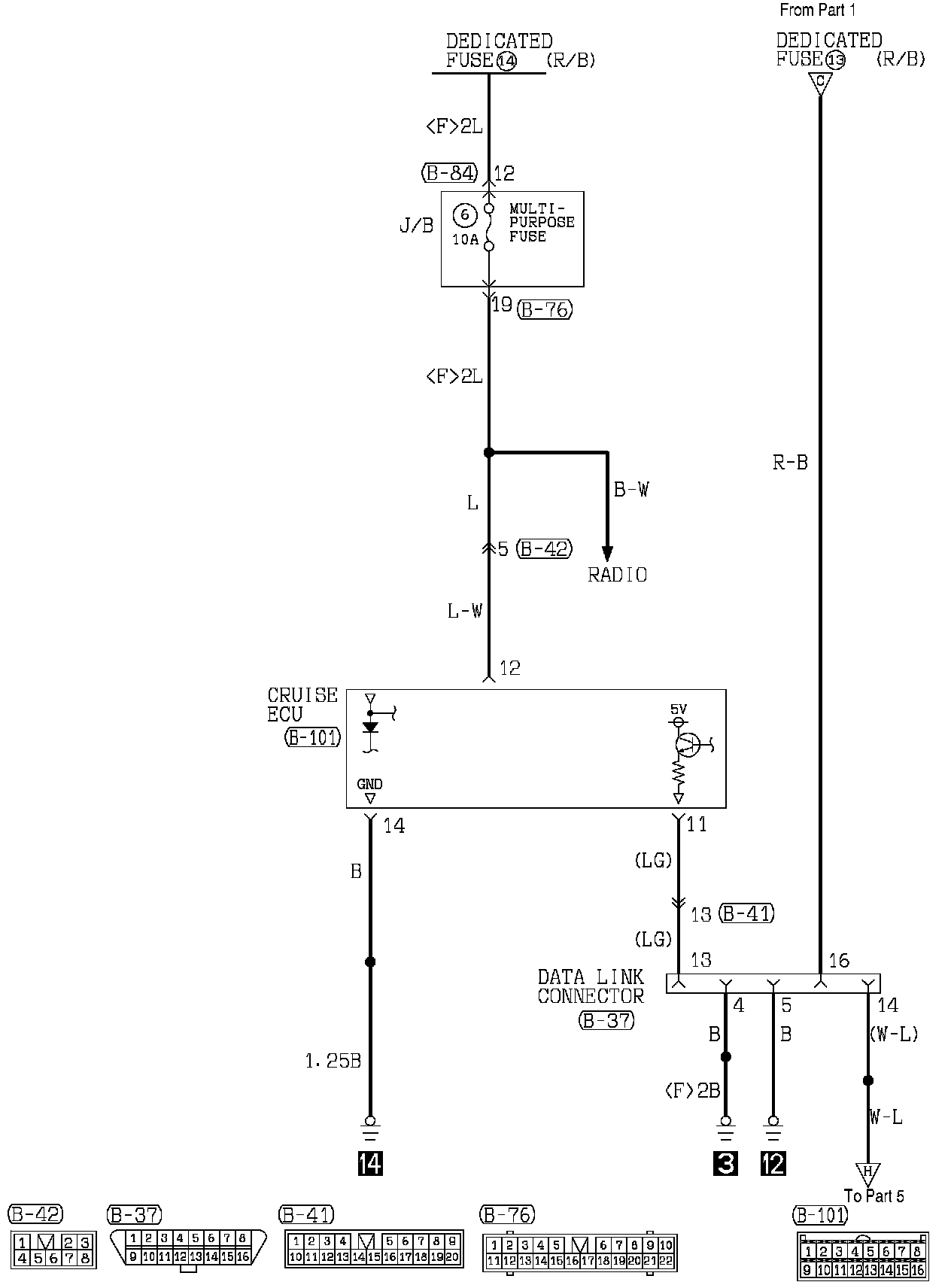

Auto-Cruise Control Part 3:

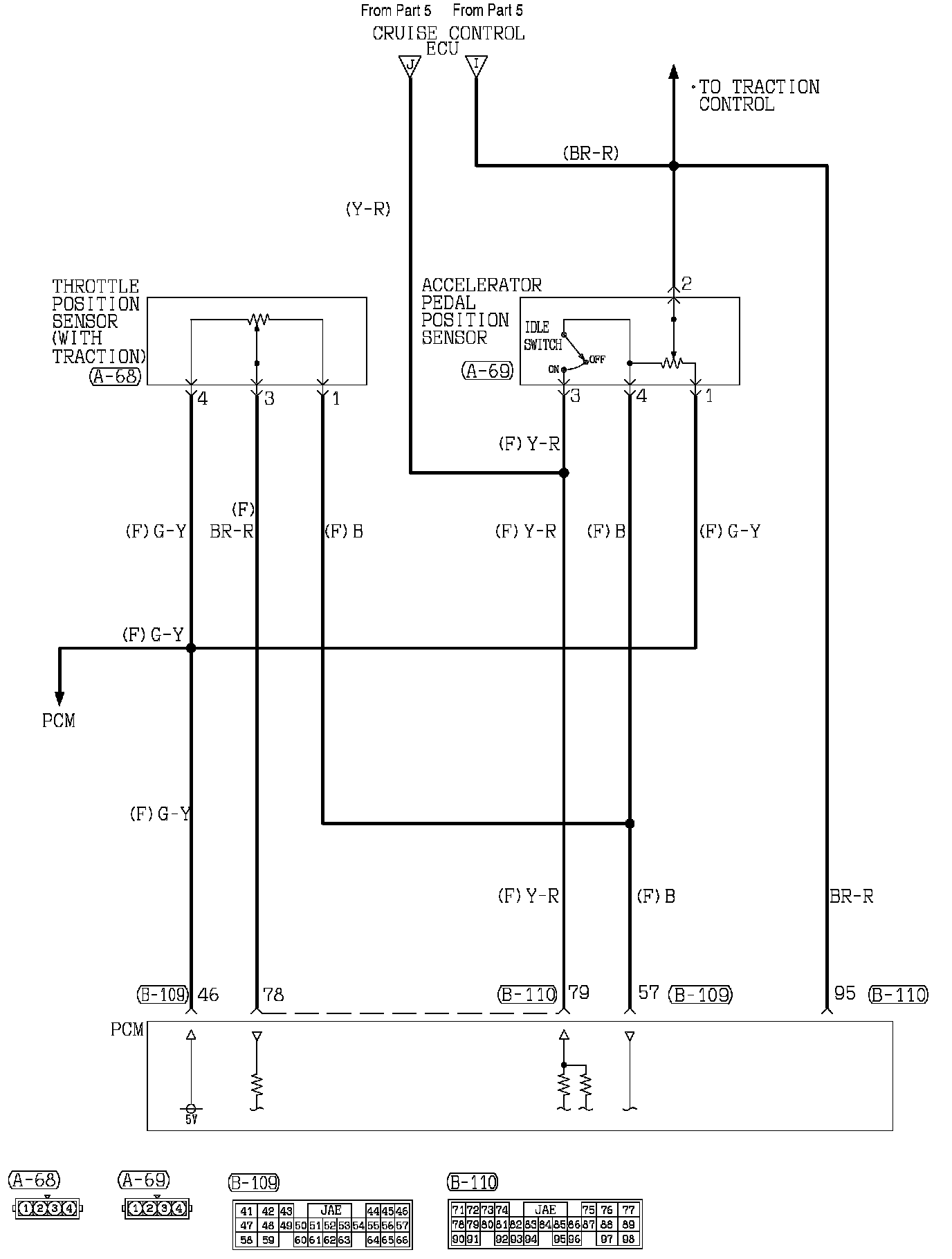

Auto-Cruise Control Part 4:

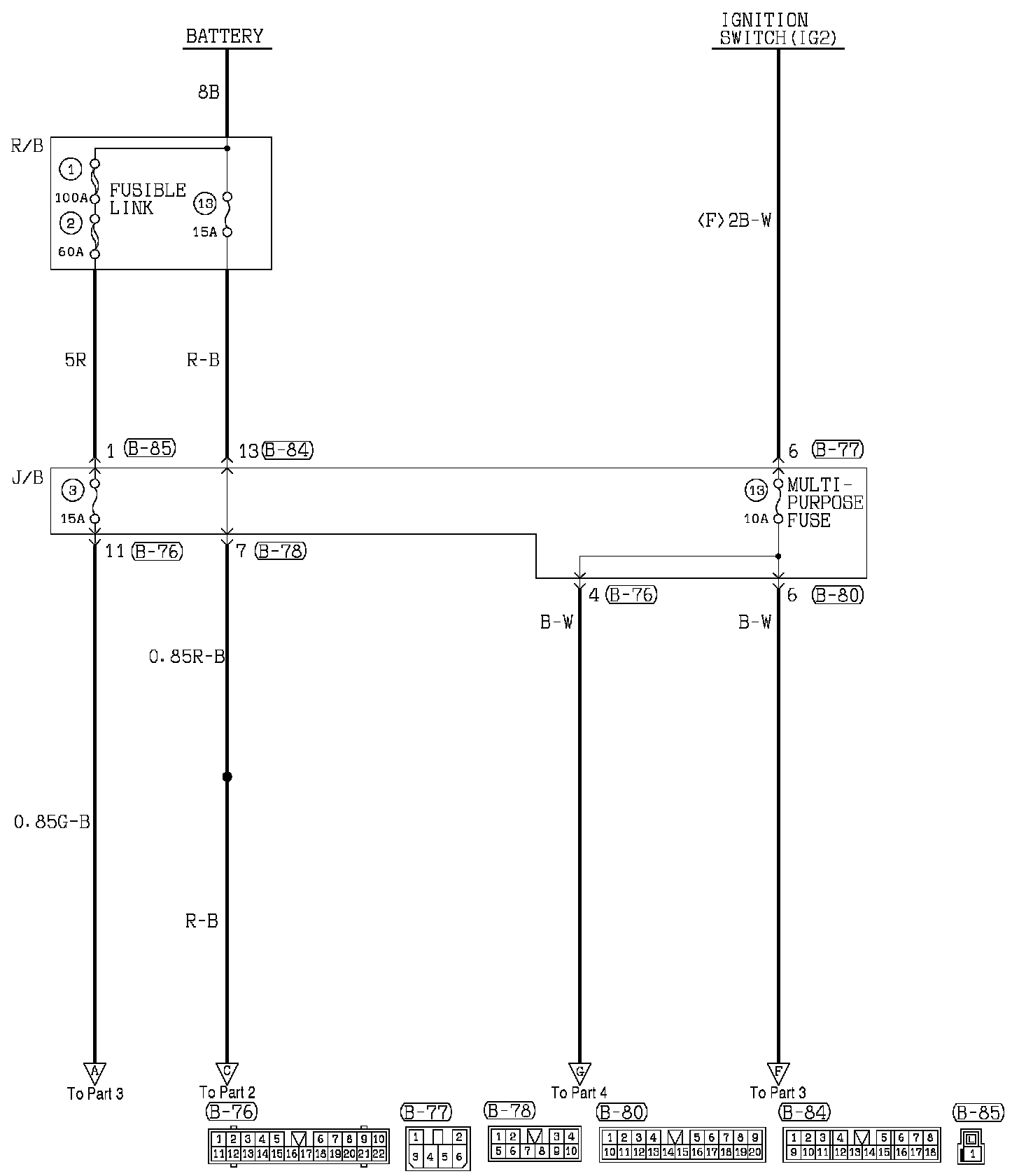

Auto-Cruise Control Part 5:

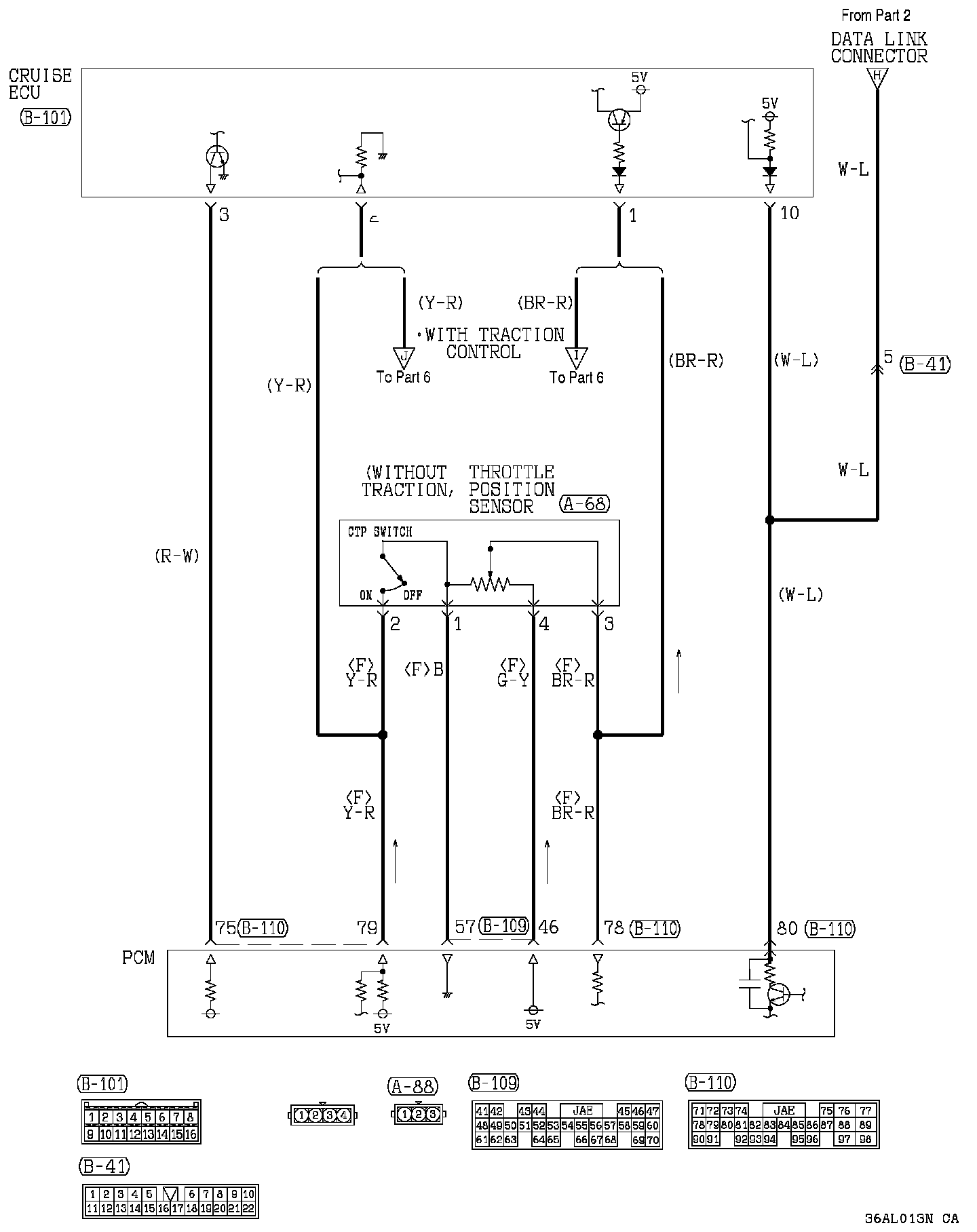

Auto-Cruise Control Part 6:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
