Brakes and Traction Control: Description and Operation

GENERAL DESCRIPTION

The brake system has high reliability and durability which maintains excellent braking performance. The main features are as follows.
^ A dual type master cylinder is equipped on all models.
^ A tandem type brake booster has been adopted.
^ Floating caliper, two-piston, ventilated disc brakes have been adopted as the front brakes.
^ Each rear disc brake is equipped with floating caliper, single piston and solid disc.

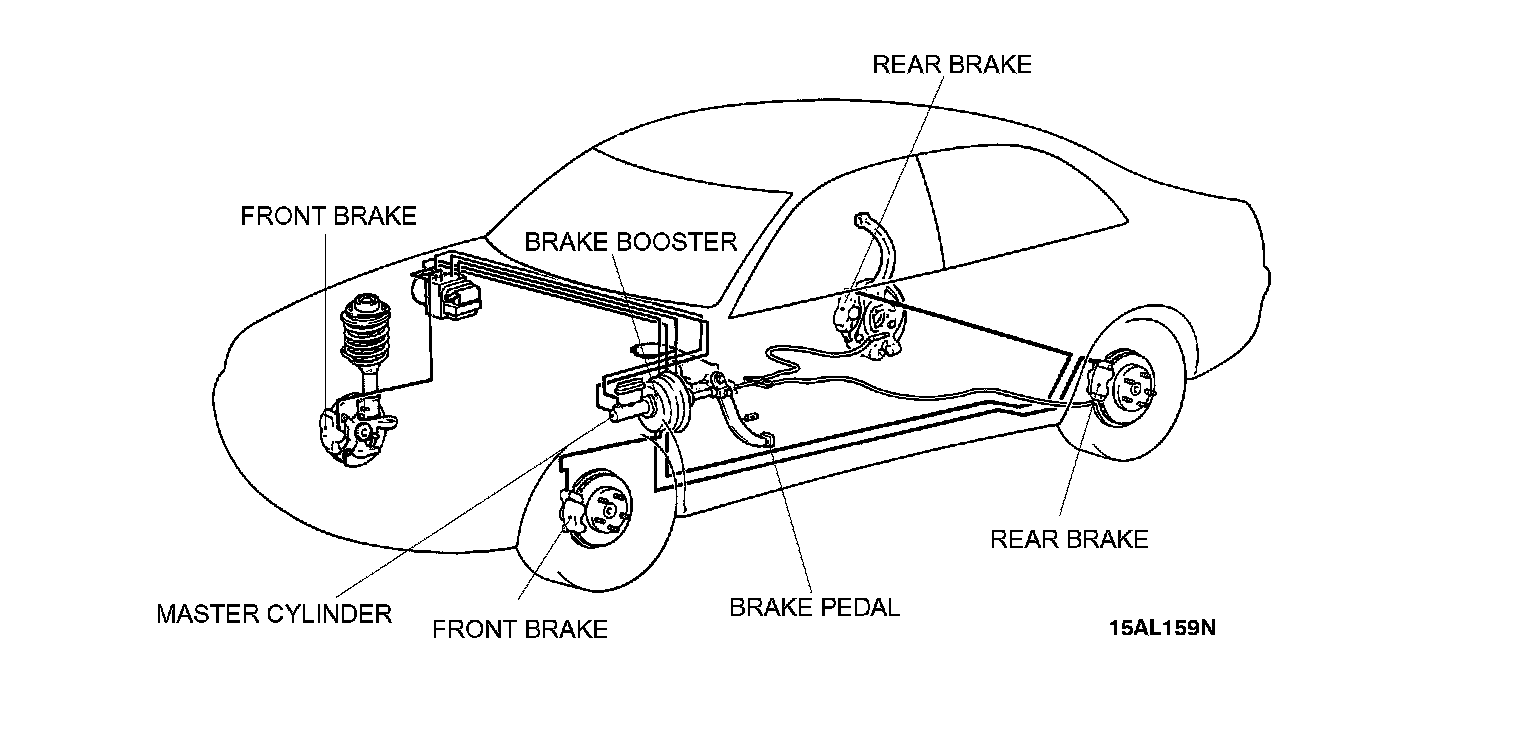

CONSTRUCTION DIAGRAM
