Body and Frame: Testing and Inspection

HOW TO LOCATE WIND NOISES

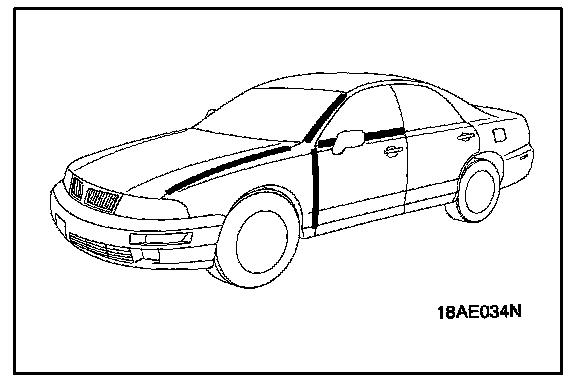

1. Attach cloth tape to every place which might conceivably be the source of wind noise, such as panel seams, projections, moulding seams, glass and body seams, etc.
2. Then make a road test in order to determine that the places not covered by tape are not sources of wind noise.

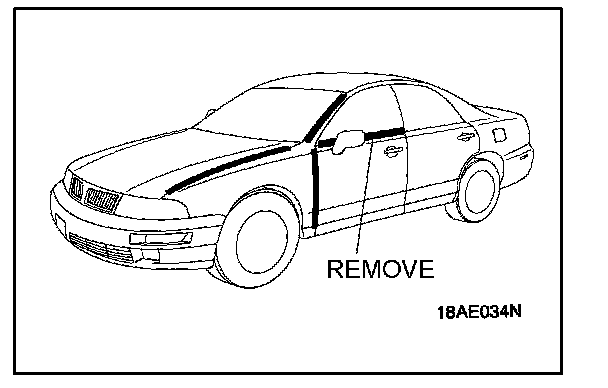

3. Then remove the strips of tape one by one, making a road test after each is removed, until a wind noise source is discovered.




4. When such a place is found, cover it again and continue with the procedure so as to determine if there are any other noise source.

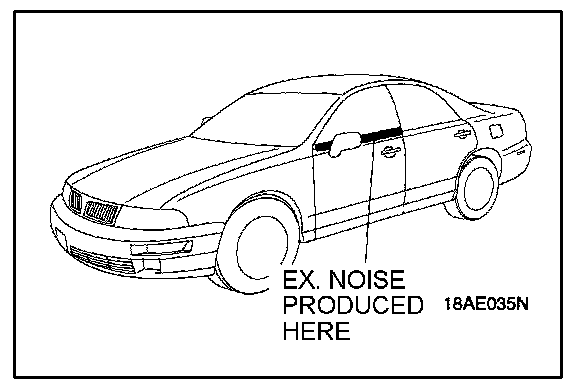

5. If no others are found, the last remaining tape is the only source.

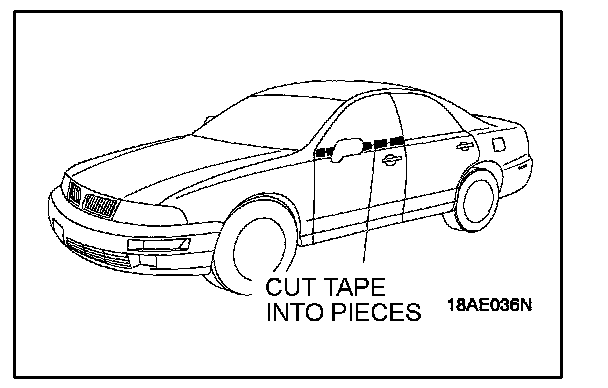

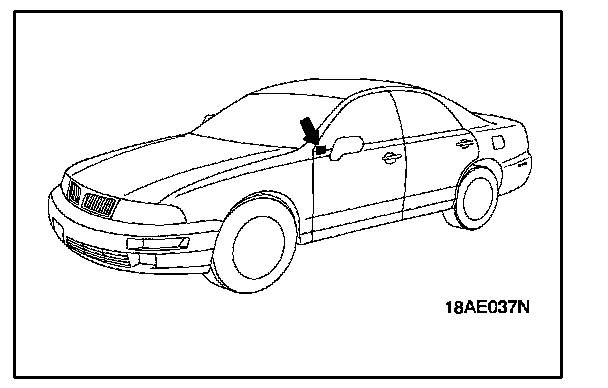

6. Cut the remaining piece of tape into smaller pieces, attach it again as it was before, and then remove the pieces one by one in the same way so as to narrow down the source.




7. Check to confirm that wind noise occurs when the last remaining tape is removed, and that noise does not occur when it is re-attached.
8. When the source(s) of the wind noise is finally located, attach butyl tape, body sealer or similar material to obstruct this source as much as possible.
