Power Seat Motor: Testing and Inspection

POWER SEAT MOTOR CHECK









Check the operation of each motor using the following procedure.

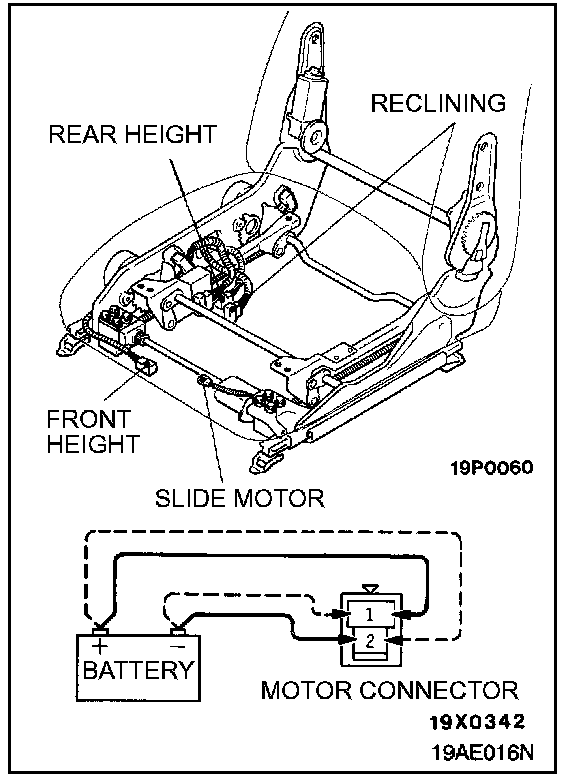

1. Disconnect the connector for each motor.

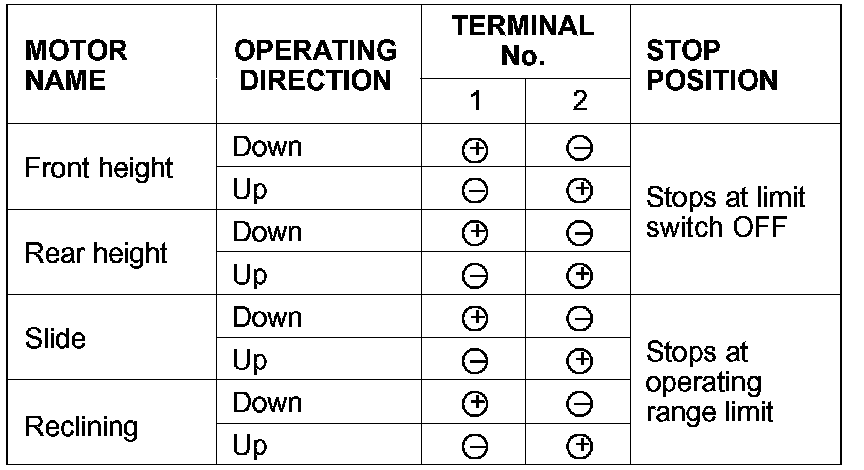

2. Check that each motor runs smoothly when the battery is directly connected to the motor terminals, and that each adjustment mechanism operates in the directions in the table.
3. If there is a problem, replace the power seat adjuster assembly.
