Component Tests and General Diagnostics

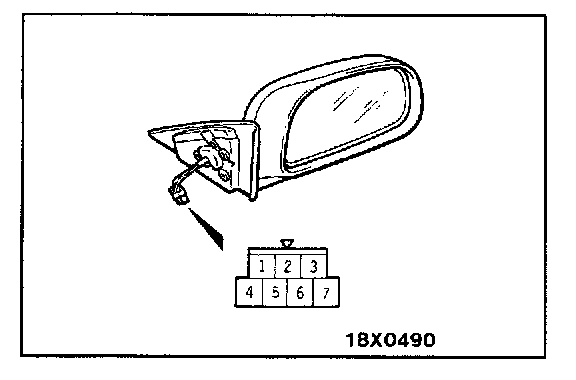

REMOTE CONTROL MIRROR ASSEMBLY CHECK

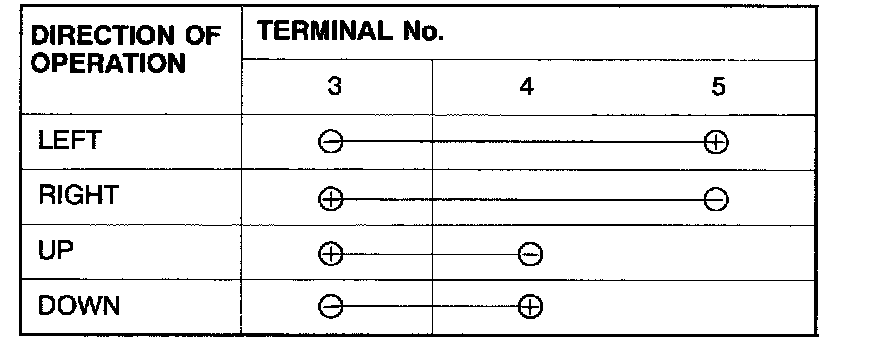

1. Check to be sure that the mirror moves as described in the table when each terminal is connected to the battery.
2. On mirrors with heater print lines, check for continuity between terminals (2) and (6).
