Removal and Replacement

INSTRUMENT PANEL

REMOVAL AND INSTALLATION

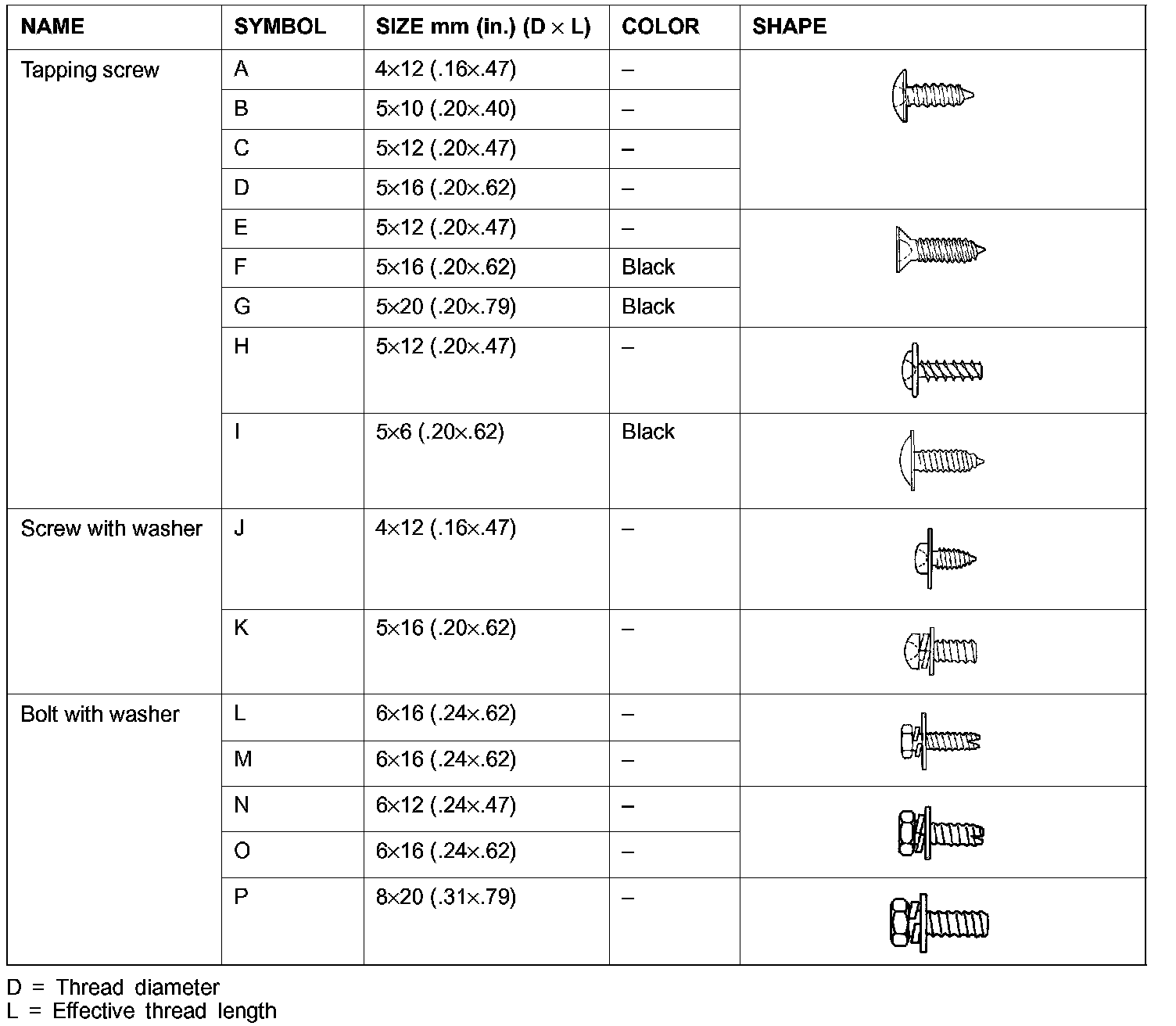

For installation of the instrument panel, the bolts and screws described below are used. They are indicated by symbols in the illustration.

Pre-Removal And Post-Installation Operation:

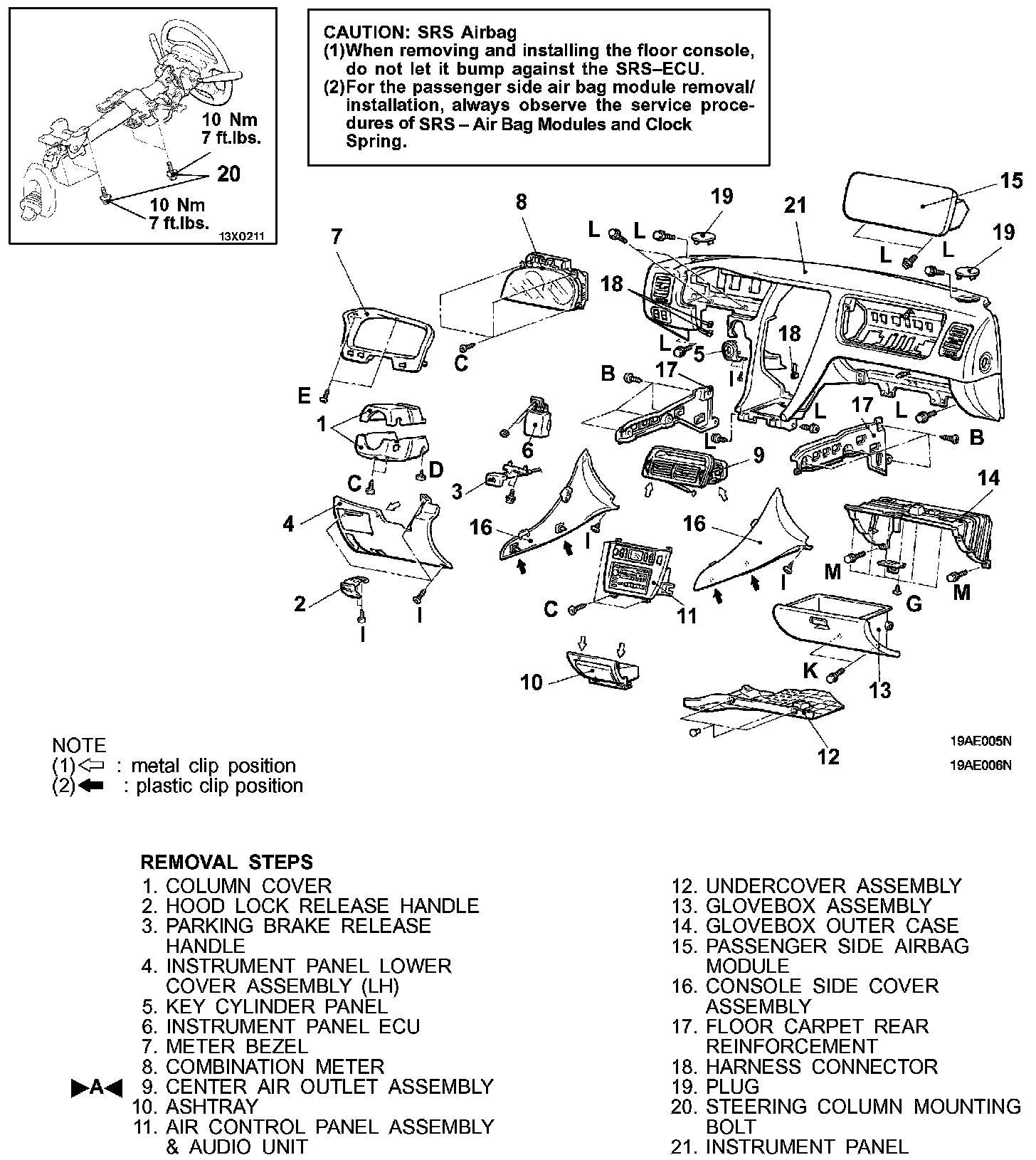

Removal Steps 1-21:

INSTALLATION SERVICE POINTS

[[A]] CENTER AIR OUTLET ASSEMBLY INSTALLATION

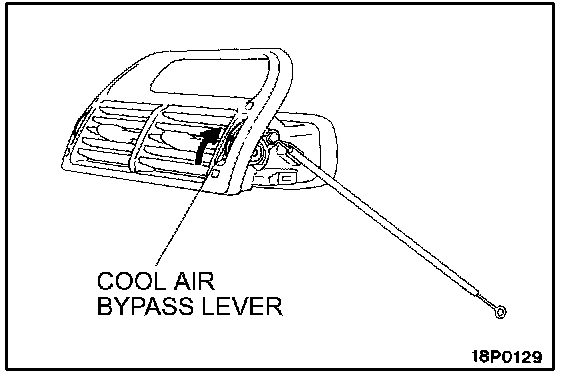

1. Turn the cool air bypass lever of the air outlet center panel assembly fully upward.






2. Turn the cool air bypass damper lever at the heater unit side fully downward, and install the cool air bypass lever cable.
