Grille: Service and Repair

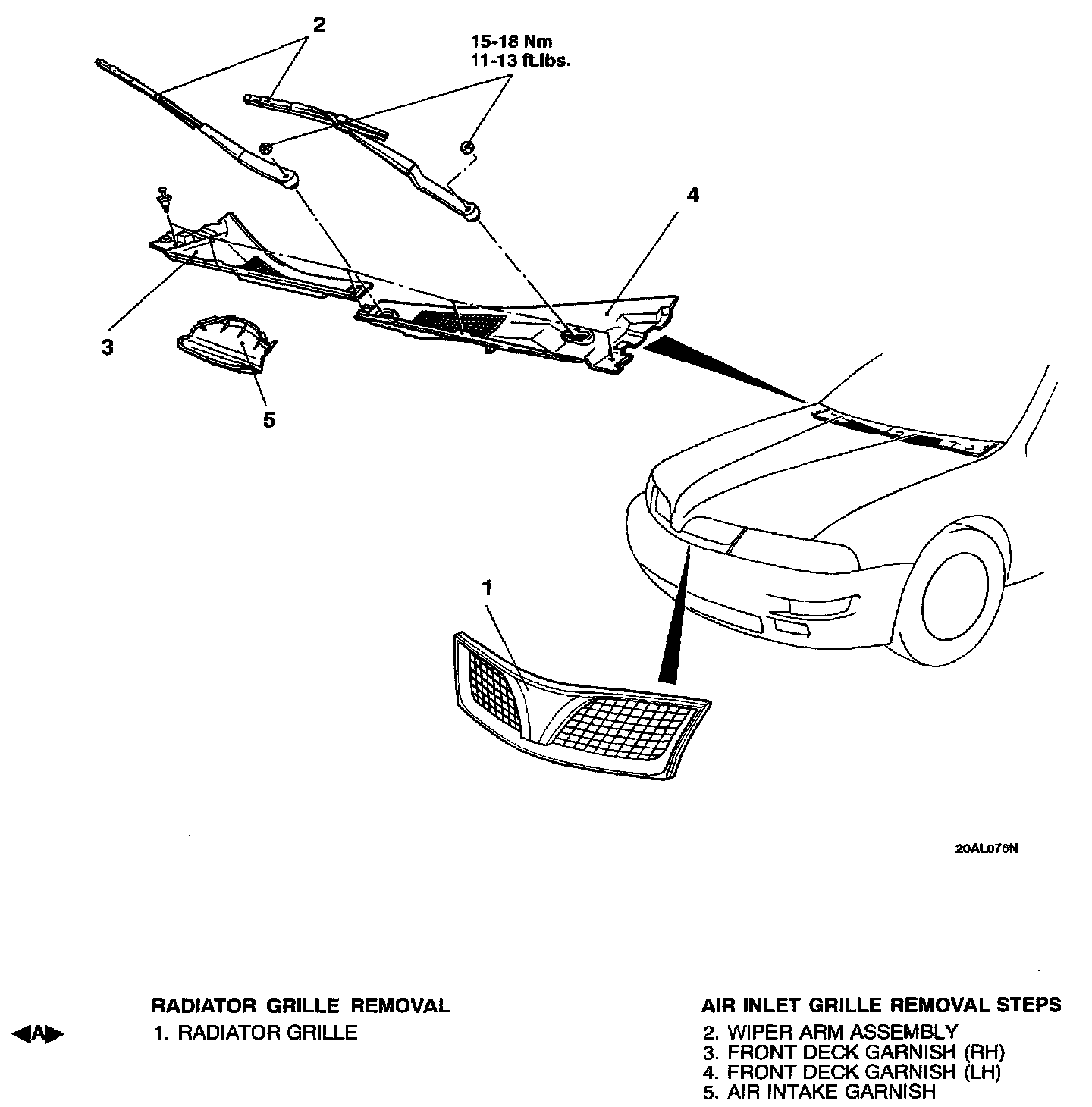

Grilles And Garnishes:
REMOVAL SERVICE POINT

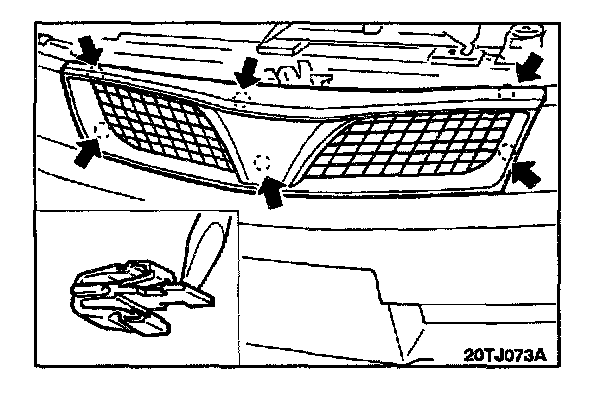

RADIATOR GRILLE REMOVAL
While gently pulling the radiator grille towards you, use a flat-bladed screwdriver to push the clip catches in the direction indicated by the arrows.
