Home >> Mitsubishi >> 2003 >> Diamante V6-3.5L SOHC >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Switch >> Testing and Inspection

Trunk / Liftgate Switch: Testing and Inspection

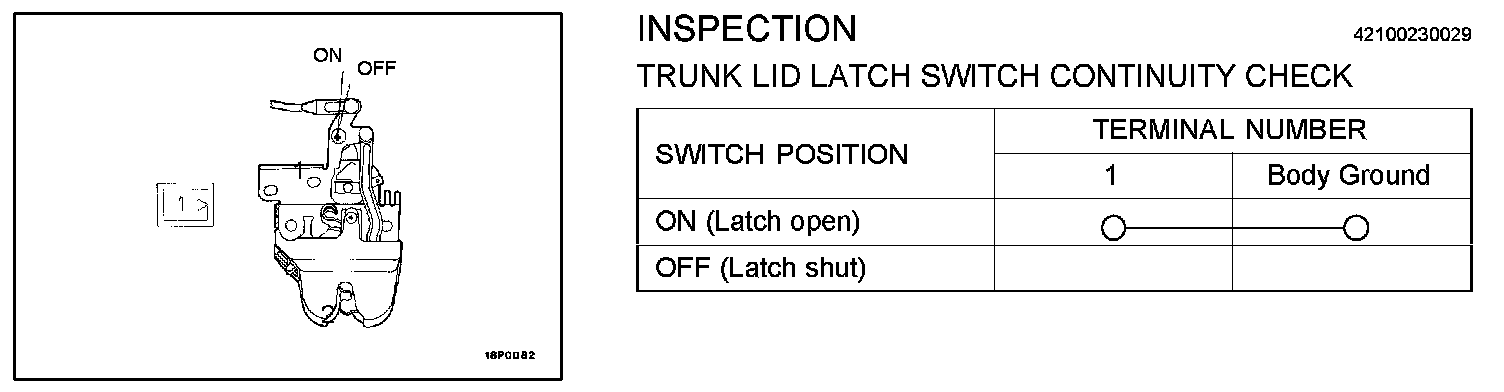

Trunk Lid Latch Switch Continuity Check:

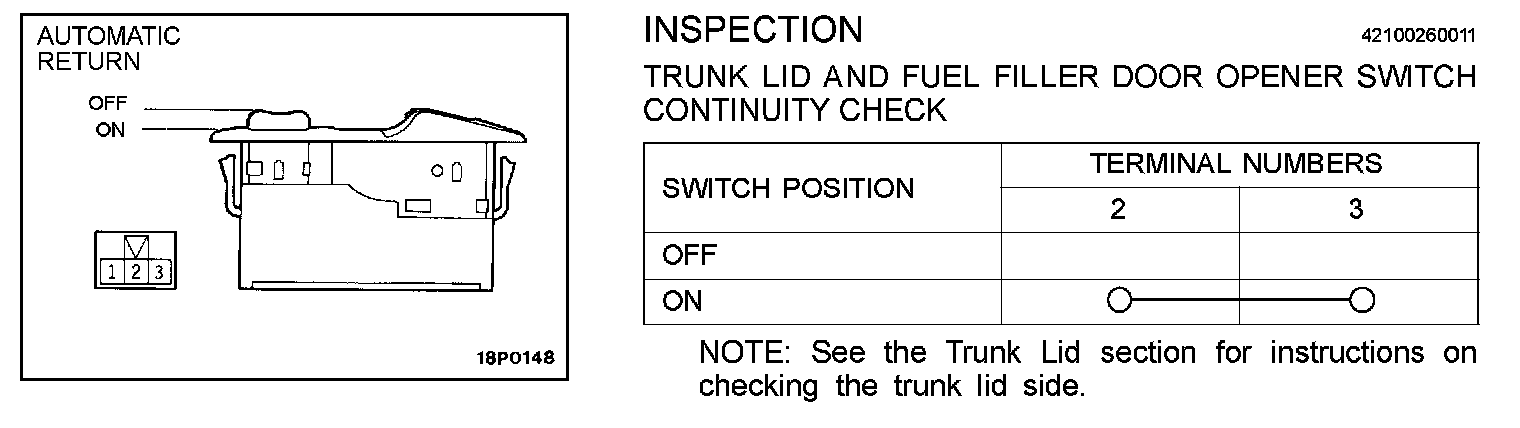

Trunk Lid And Fuel Filler Door Opener Switch Continuity Check:

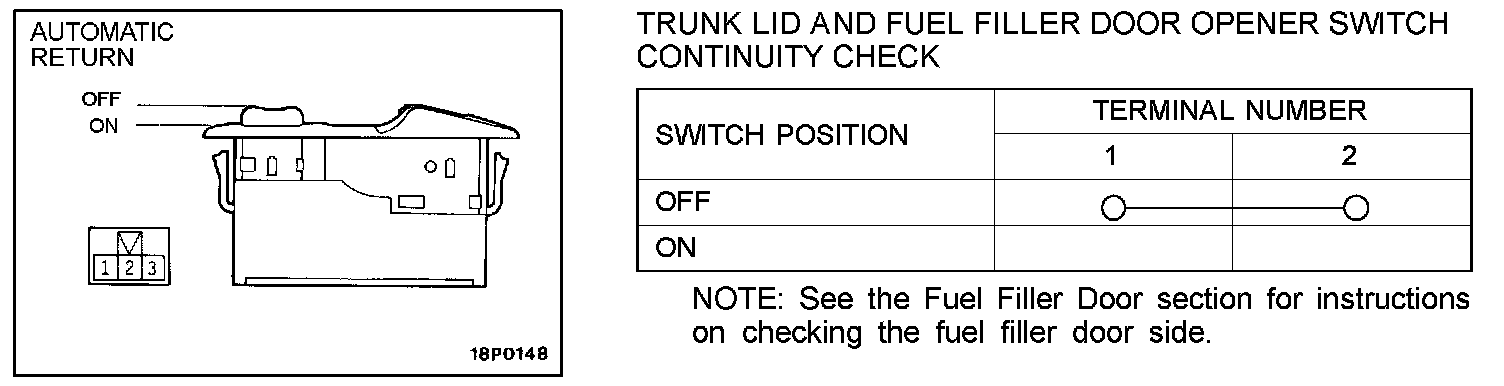

Trunk Lid And Fuel Filler Door Opener Switch Continuity Check:
