Power Trunk / Liftgate Lock Actuator: Testing and Inspection

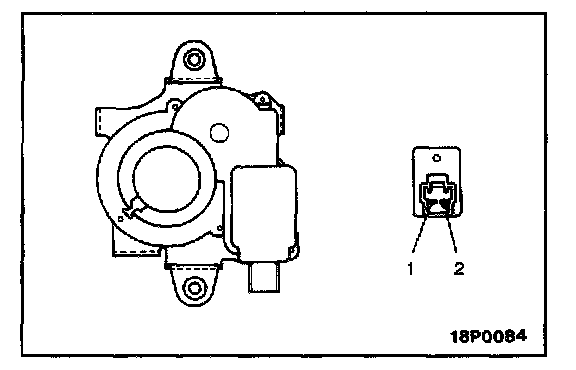

TRUNK LID AND FUEL FILLER DOOR OPENER ACTUATOR
1. Connect a battery directly to the actuator terminals and check that the motor rotates smoothly.
2. Check that the motor rotates in the reverse direction when the polarity of the battery is reversed.
