Trunk / Liftgate: Locations

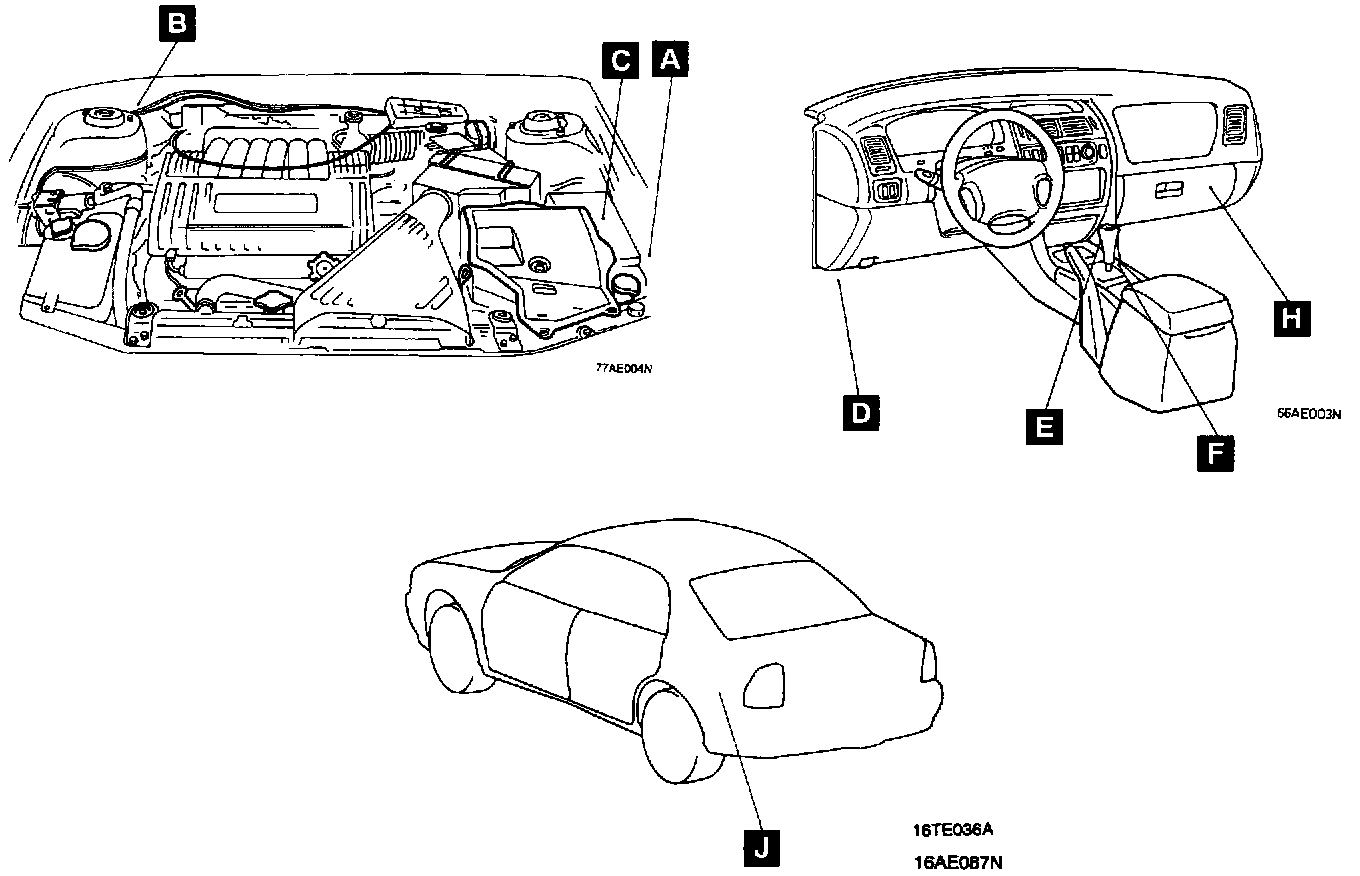

Relay Location Overall View:

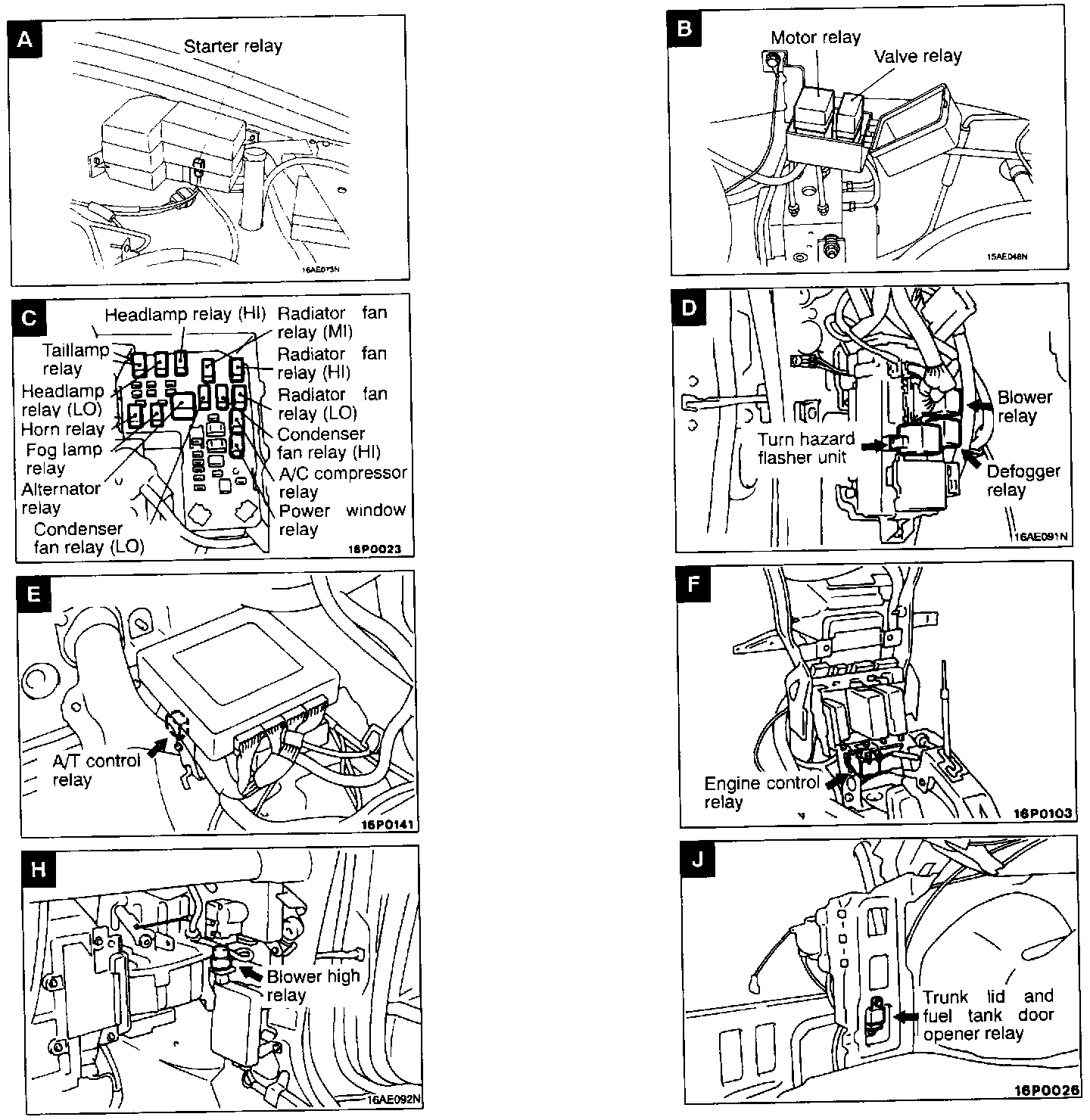

Relay Location View A - J:






RELAY VIEW
Trunk Lid and Fuel J
Door Opener Relay
