Back Window Glass: Service and Repair

Rear Window Glass:

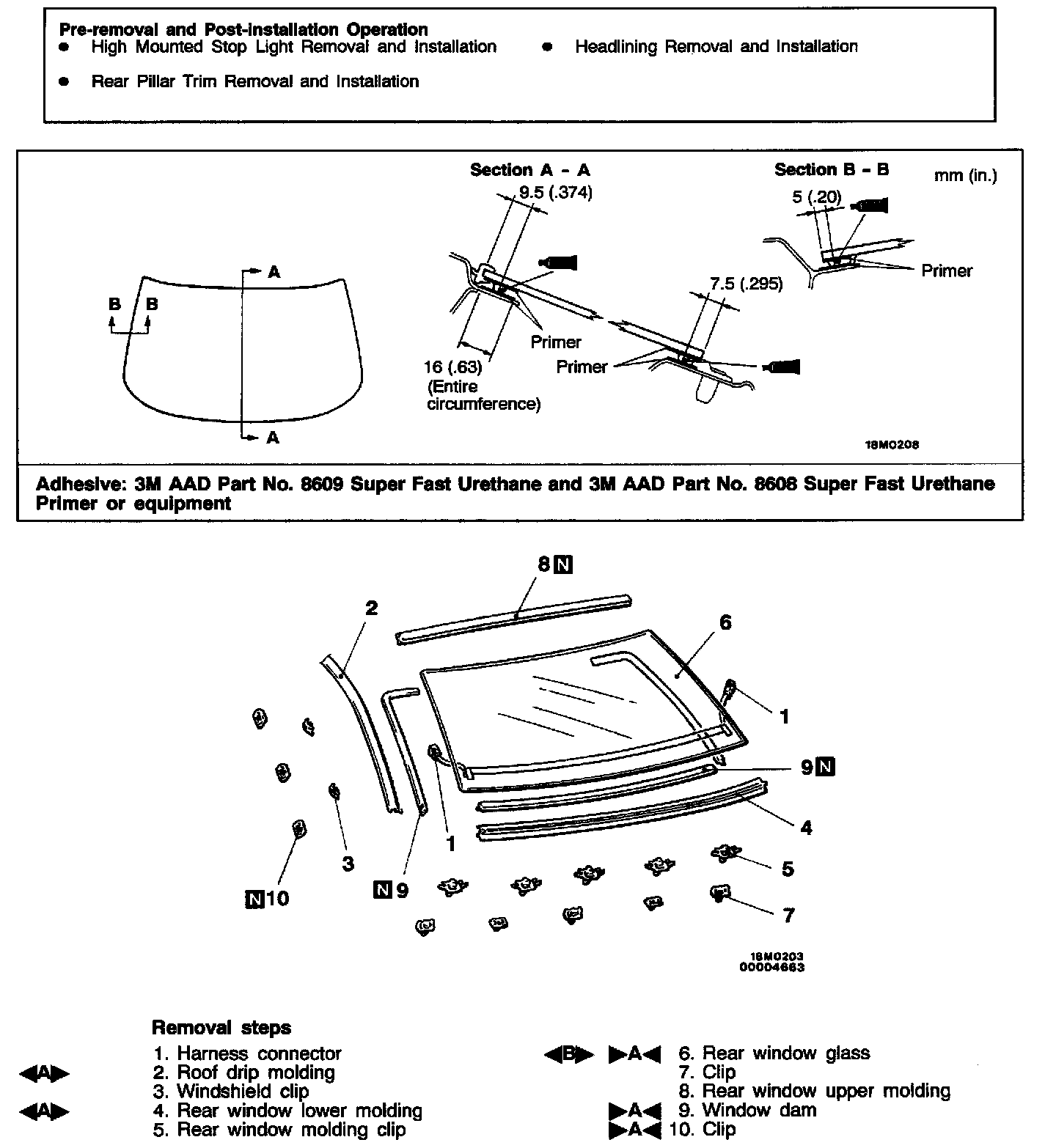

REMOVAL SERVICE POINTS




[A] ROOF DRIP MOLDING/REAR WINDOW LOWER MOLDING REMOVAL
Use the special tool to lever out the molding.

CAUTION: If the molding has become warped, it should not be reused.

[B] REAR WINDOW GLASS REMOVAL
Remove the rear window glass by the same procedure as for the windshield.

INSTALLATION SERVICE POINT

]A[ CLIP/WINDOW DAM/REAR WINDOW GLASS INSTALLATION
1. Use 3M AAD Part No.8609 or equivalent to degrease the inside and outside edges of the rear window glass and the surface of the body flange.

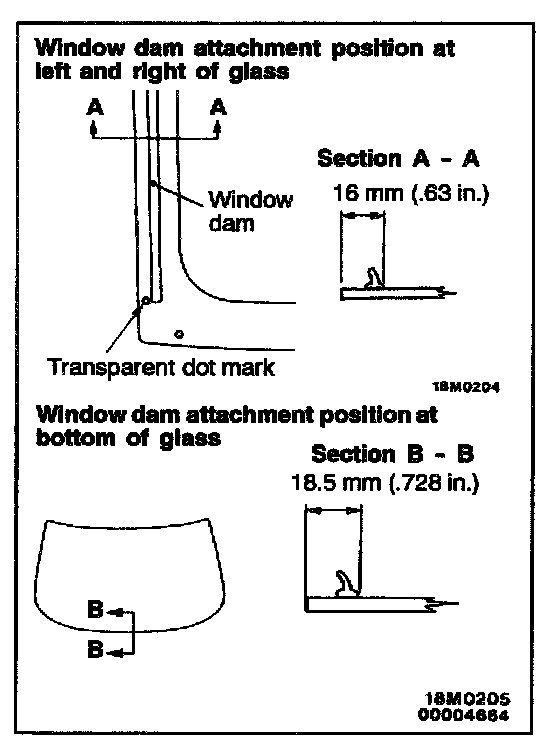

2. Attach the window dam in the specified positions so that there are no bends or lifts on the inside of the rear window glass.

NOTE: Attach the dam at the bottom of the glass so that the clearance at both left and right will be the same during installation.




3. Place the clips onto the clip studs.
4. Apply primer and adhesive.
5. Install the glass in the same way as for the windshield.
