Transaxle Case

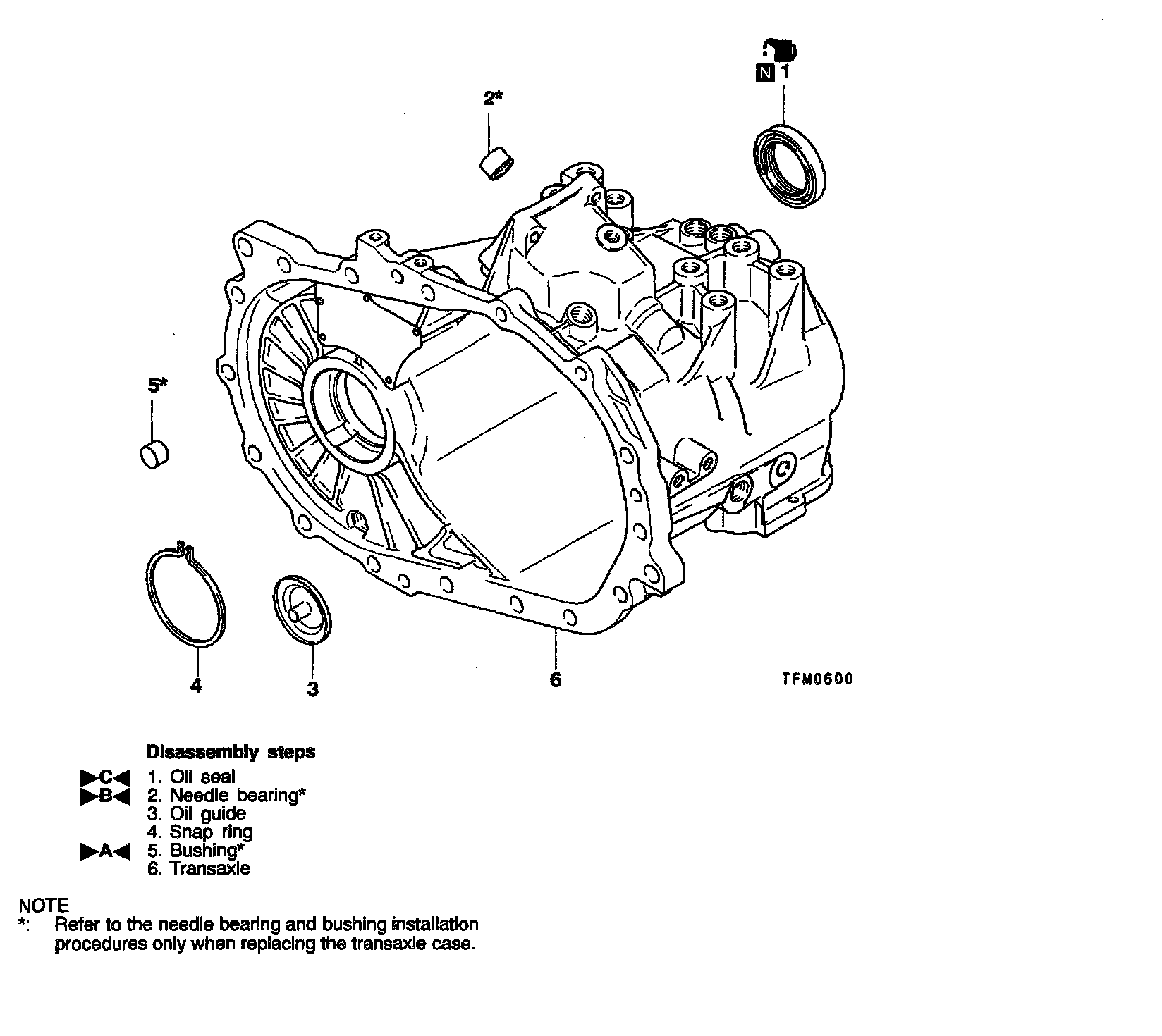

DISASSEMBLY AND REASSEMBLY

NOTE: Refer to the needle bearing and bushing installation procedures only when replacing the transaxle case.

REASSEMBLY SERVICE POINTS
>A< BUSHING INSTALLATION

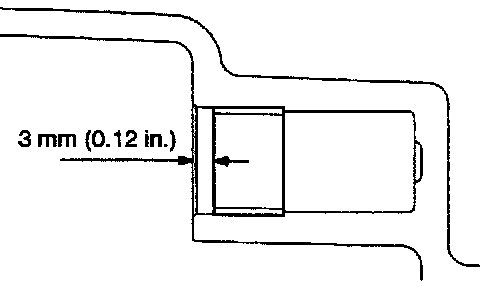

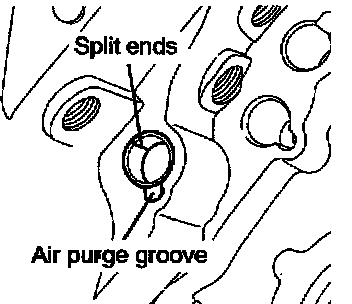

Press fit the bushing up to the illustrated position, while making sure that the split ends of the bushing do not coincide with the air purge groove.

>B< NEEDLE BEARING INSTALLATION

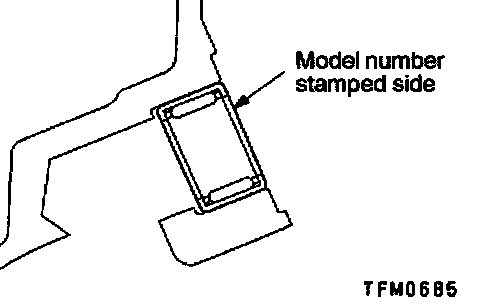

Press fit the needle bearing until it is flush with the case, while making sure that the model number stamped side faces the direction shown.

>C< OIL SEAL INSTALLATION

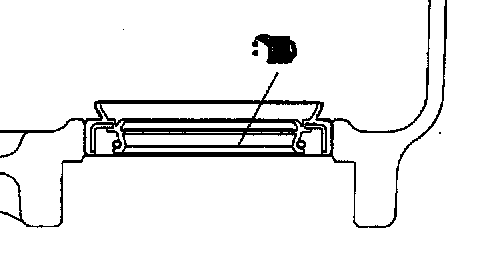

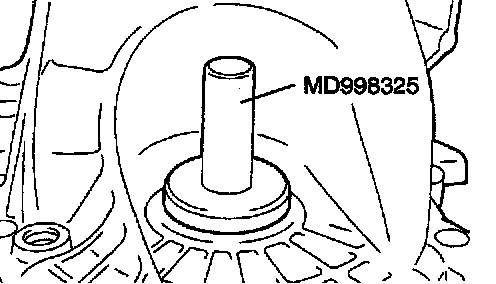

Apply transmission oil to the oil seal lip area.
Specified oil: Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4
