Control Housing Disassembly and Reassembly

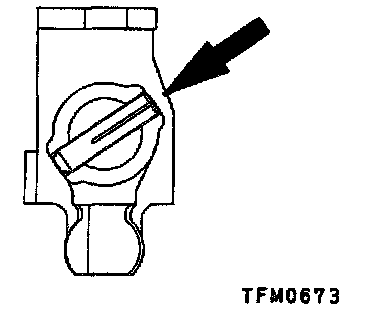

Drive the lock pin out of position from the direction shown.

REASSEMBLY SERVICE POINTS
>A< BEARING INSTALLATION

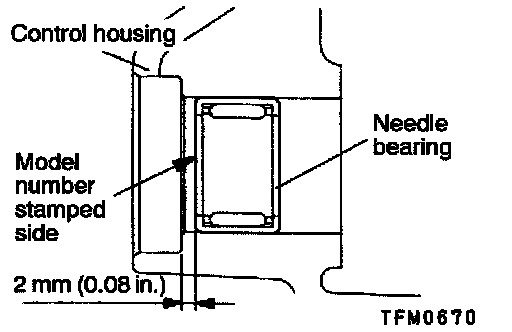

Press fit the needle bearing up the illustrated dimension, while making sure that the model number stamped side is oriented towards the control housing side.

>B< OIL SEAL INSTALLATION

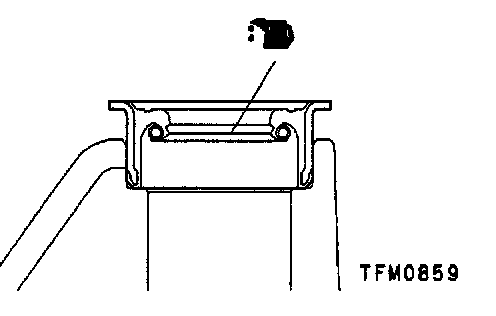

Apply transmission oil to the oil seal up area.
Specified oil: Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4

>C< AIR BREATHER INSTALLATION

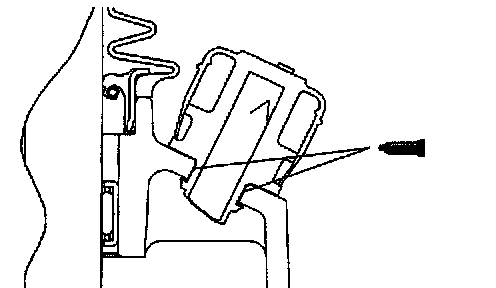

1. Apply sealant to the inserting portion of the air breather.
Specified sealant: 3M TM AAD Part No. 8001 or equivalent

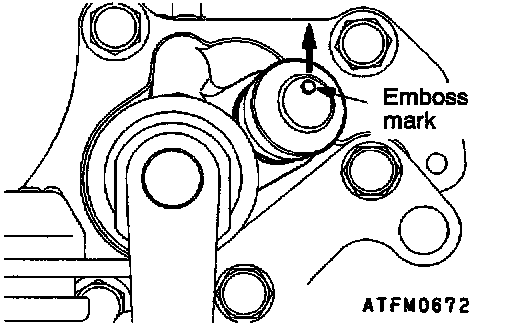

2. Install the air breather so that the emboss mark is oriented in the direction shown.

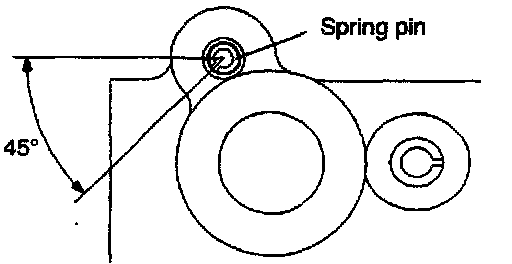

>D< SPRING PIN INSTALLATION

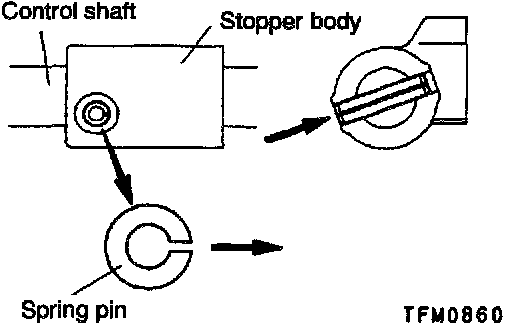

>E< SPRING PIN INSTALLATION

>F< LOCK PIN INSTALLATION

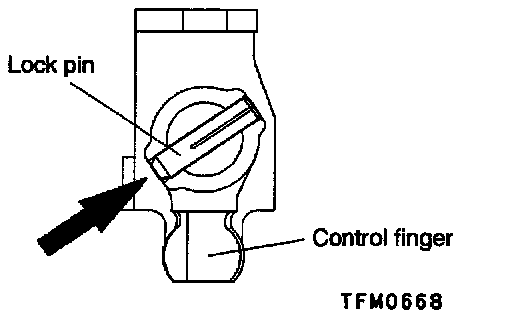

Knock the lock pin in from the direction shown in the illustration.
