Overdrive Planetary Carrier Assembly

DISASSEMBLY AND REASSEMBLY

REASSEMBLY SERVICE POINTS

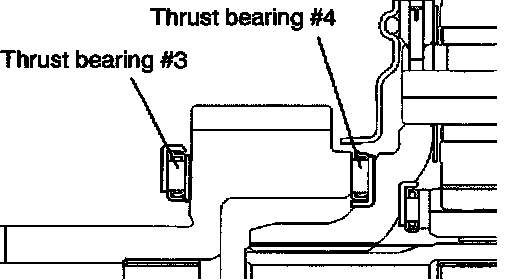

>A< THRUST BEARING #4 AND THRUST BEARING #3 INSTALLATION





Check the installation direction of thrust bearings #3 and 4, and install them.
Be careful about the installation direction of the thrust bearings.

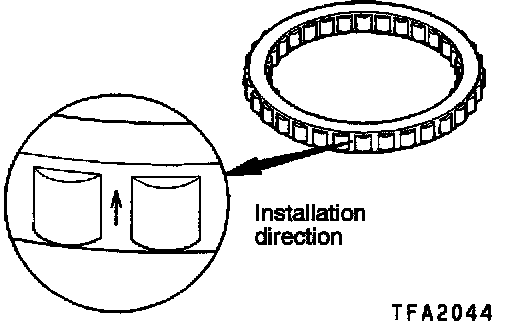

>B< ONE-WAY CLUTCH INSTALLATION





Insert the one-way clutch into the overdrive annulus gear so that the arrow points to the output planetary carrier side.
