Automatic Transmission/Transaxle: Adjustments

LINE PRESSURE ADJUSTMENT





1. Discharge the automatic transmission fluid, and then remove the valve body cover.

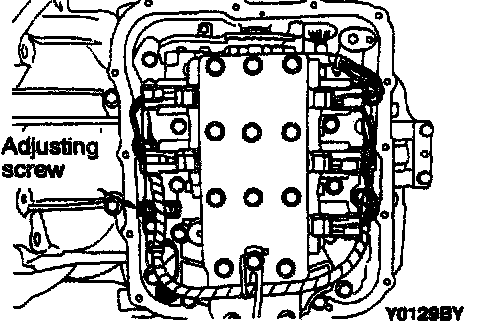

2. Turn the adjusting screw at counterclockwise to adjust the underdrive pressure to the standard valve.
The pressure increases when the screw is turned to the counterclockwise.

NOTE: When adjusting the underdrive pressure, adjust to the middle of the standard value range.

Standard value: 1.01 - 1.05 MPa (147 - 152 psi)
Change in pressure for each turn of the adjusting screw: 0.035 MPa (5.1 psi)
3. Install the valve body cover, and pour in the standard volume of automatic transmission fluid.
4. Carry out a hydraulic pressure test. Readjust the line pressure if necessary.
