Overhaul

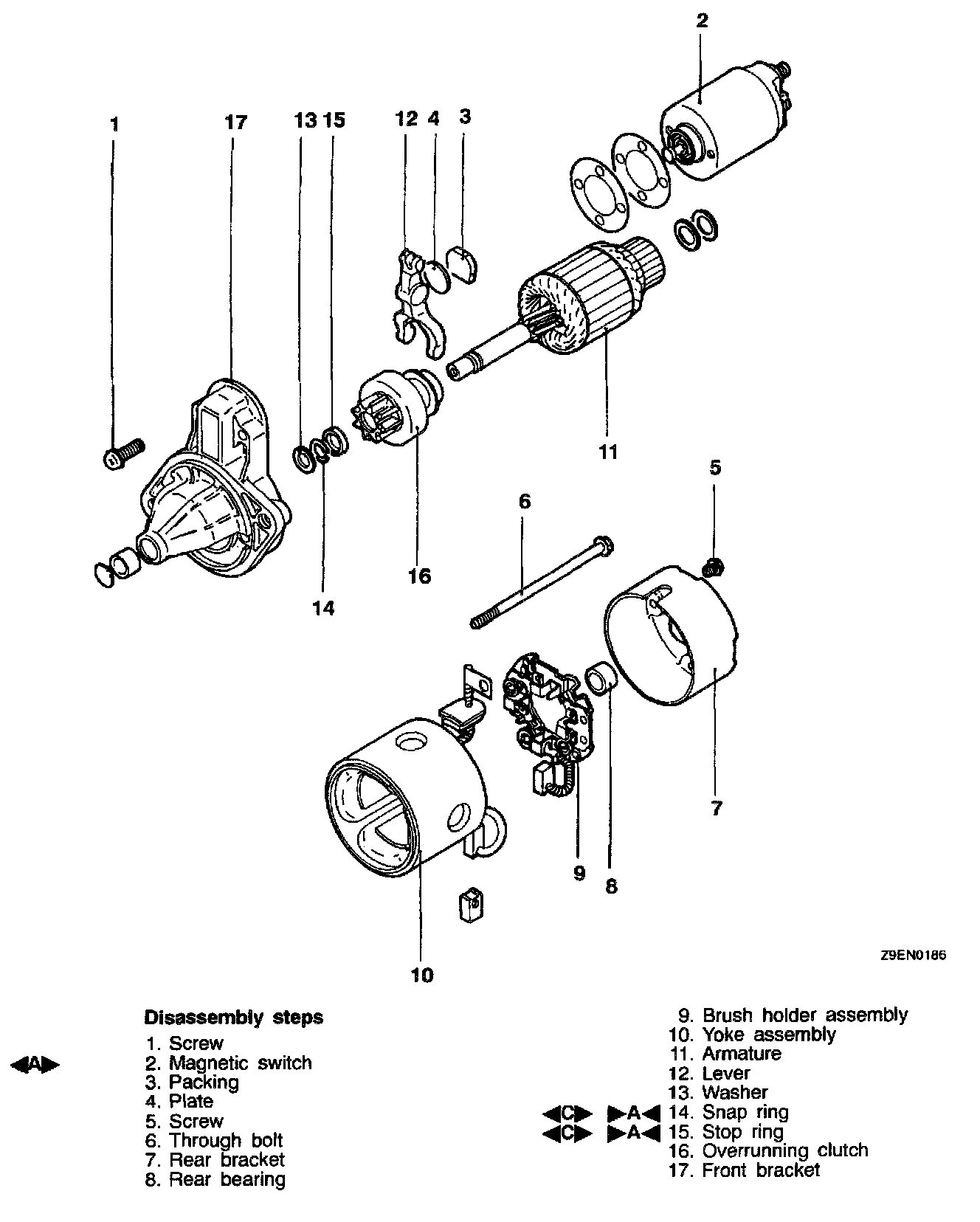

<Direct Drive Type>:

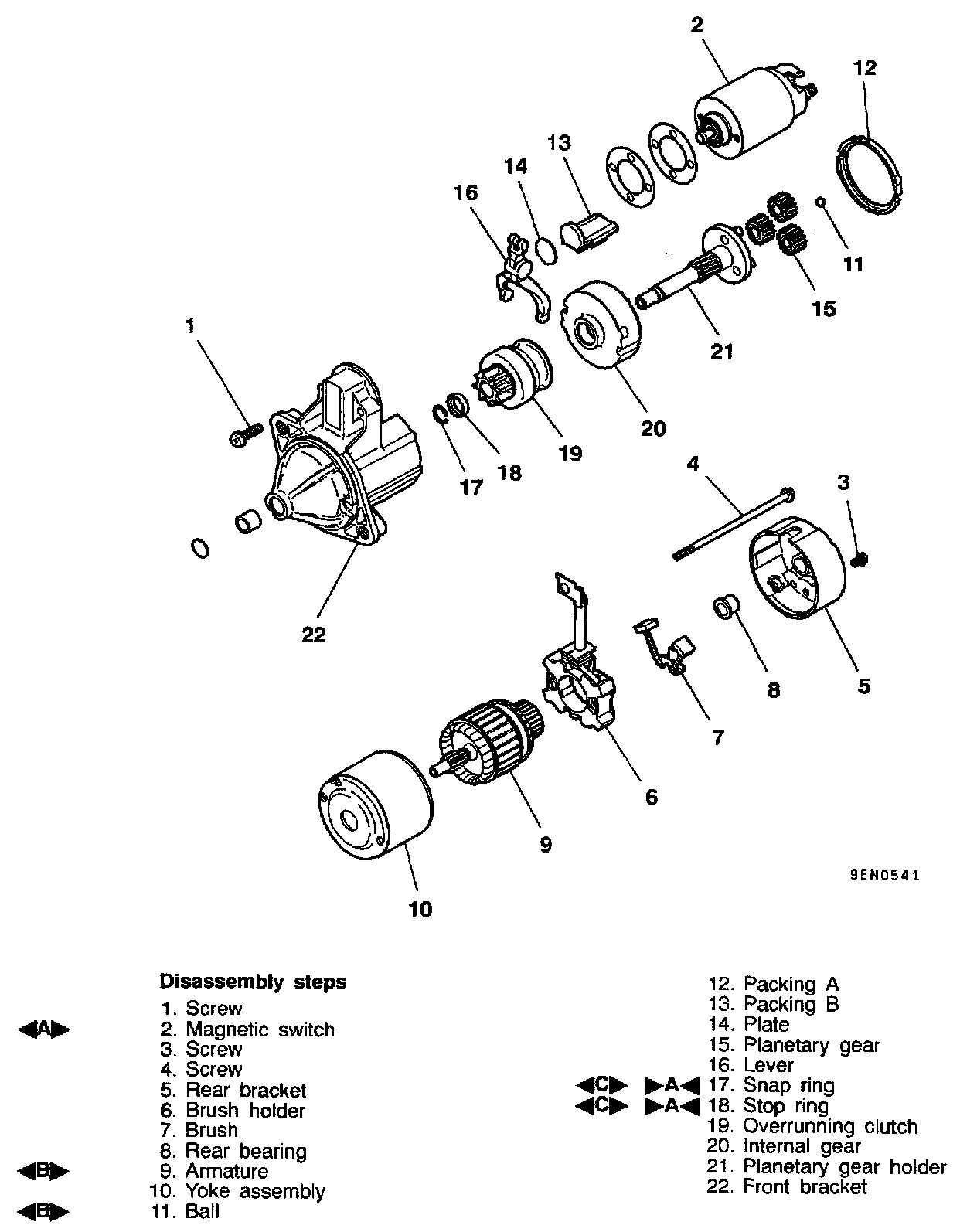

<Reduction Drive Type>:

Disconnect field coil wire from "M" terminal of magnetic switch.

ARMATURE/BALL REMOVAL

CAUTION: When removing the armature, take care not to lose the ball (which is used as a bearing) in the armature end.

SNAP RING/STOP RING REMOVAL

1. Using an appropriate long socket wrench, tap the stop ring to remove it from the pinion gear side.

2. Remove snap ring with snap ring pliers and then remove stop ring and overrunning clutch.

REASSEMBLY SERVICE POINTS

>A< STOP RING/SNAP RING INSTALLATION
Using a suitable pulling tool, pull overrunning clutch stop ring over snap ring.
