Clutch Switch: Adjustments

INTERLOCK SWITCH CHECK AND ADJUSTMENT





1. Adjust the clutch pedal.
2. Check to be sure that the interlock switch is as shown in the illustration when the clutch pedal is depressed at its full stroke [143 mm (5.6 inch)]. If necessary, loosen the lock nut and adjust.

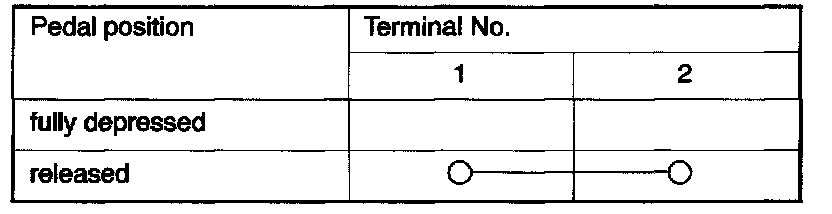

3. Connect an ohmmeter to the interlock switch connector, and then check for continuity when the clutch pedal is fully depressed and when it is released outward.
