Symptom Related Diagnostic Procedures

1. Charging warning light does not go on when the ignition switch is turned to "ON" before the engine starts.
- Check the bulb.

2. Charging warning light fails to go off once the engine starts.
- Check the IC voltage regulator (located inside the generator).

3. Discharged or overcharged battery.
- Check the IC voltage regulator (located inside the generator).

4. The charging warning light illuminates dimly.
- Check the diode (within the combination meter) for a short-circuit.

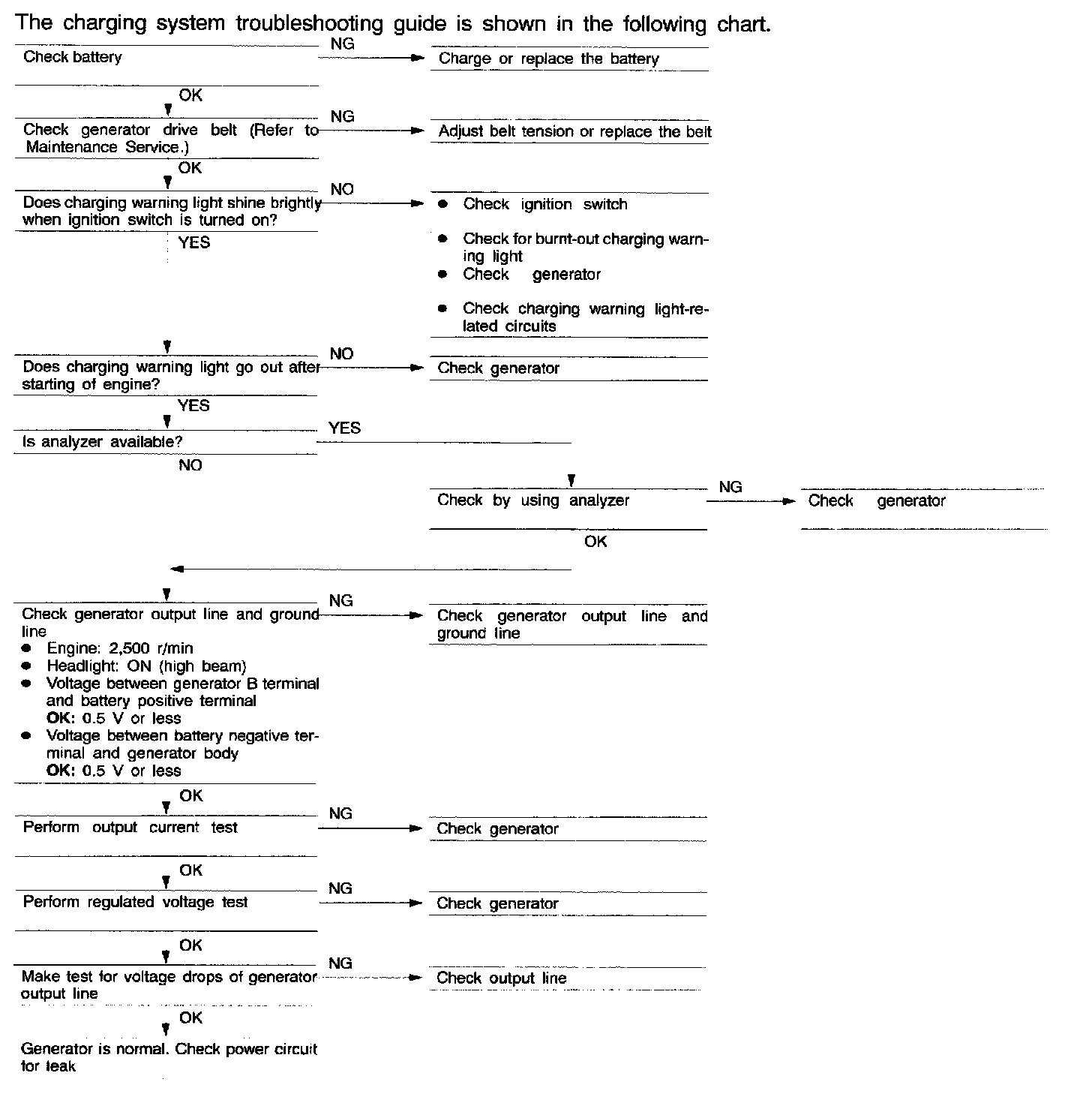

Troubleshooting Guide:
