Fusible Link: Locations
Fusible Link Location Index:

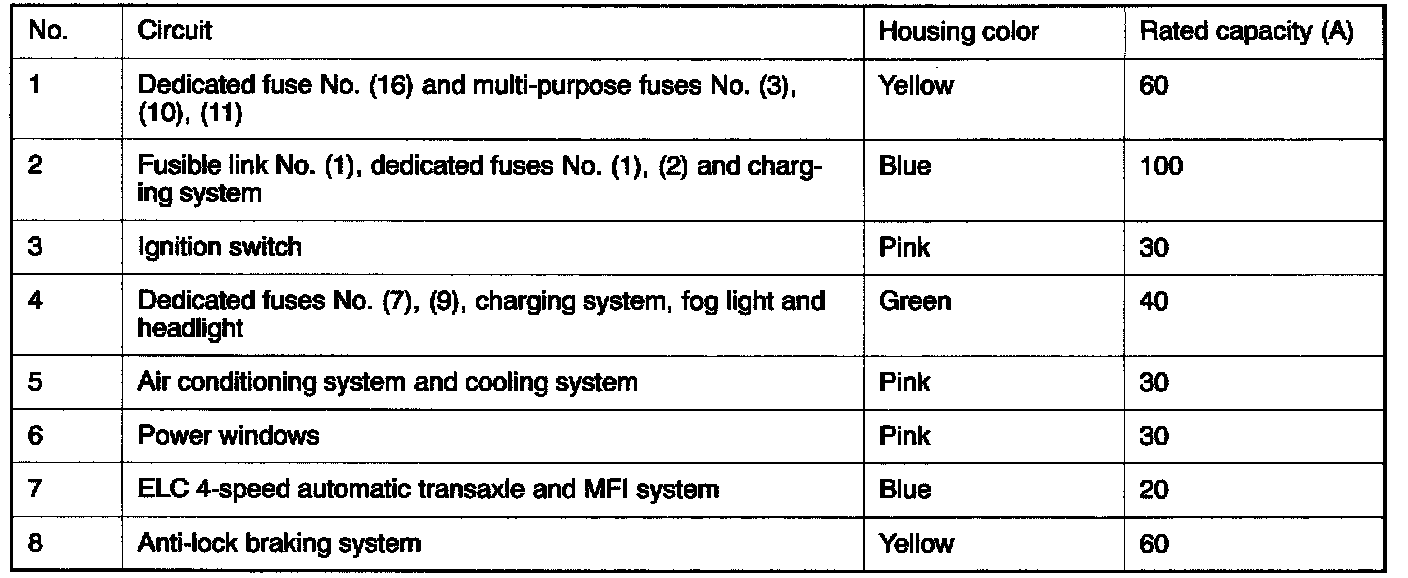

Fusible Link 1 - 7 (Relay Box In Engine Compartment):

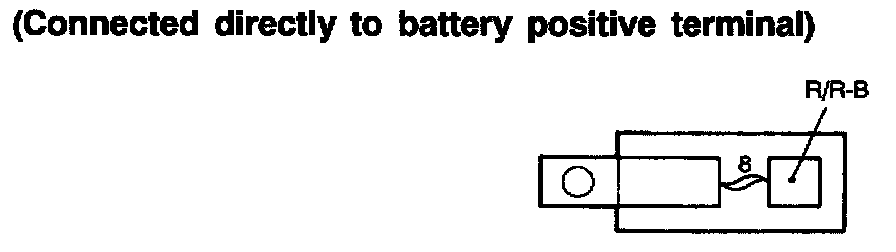

Fusible Link 8 (At Battery Positive Terminal):
