Dedicated Fuse (Engine Compartment)
Dedicated Fuse (Engine Compartment)

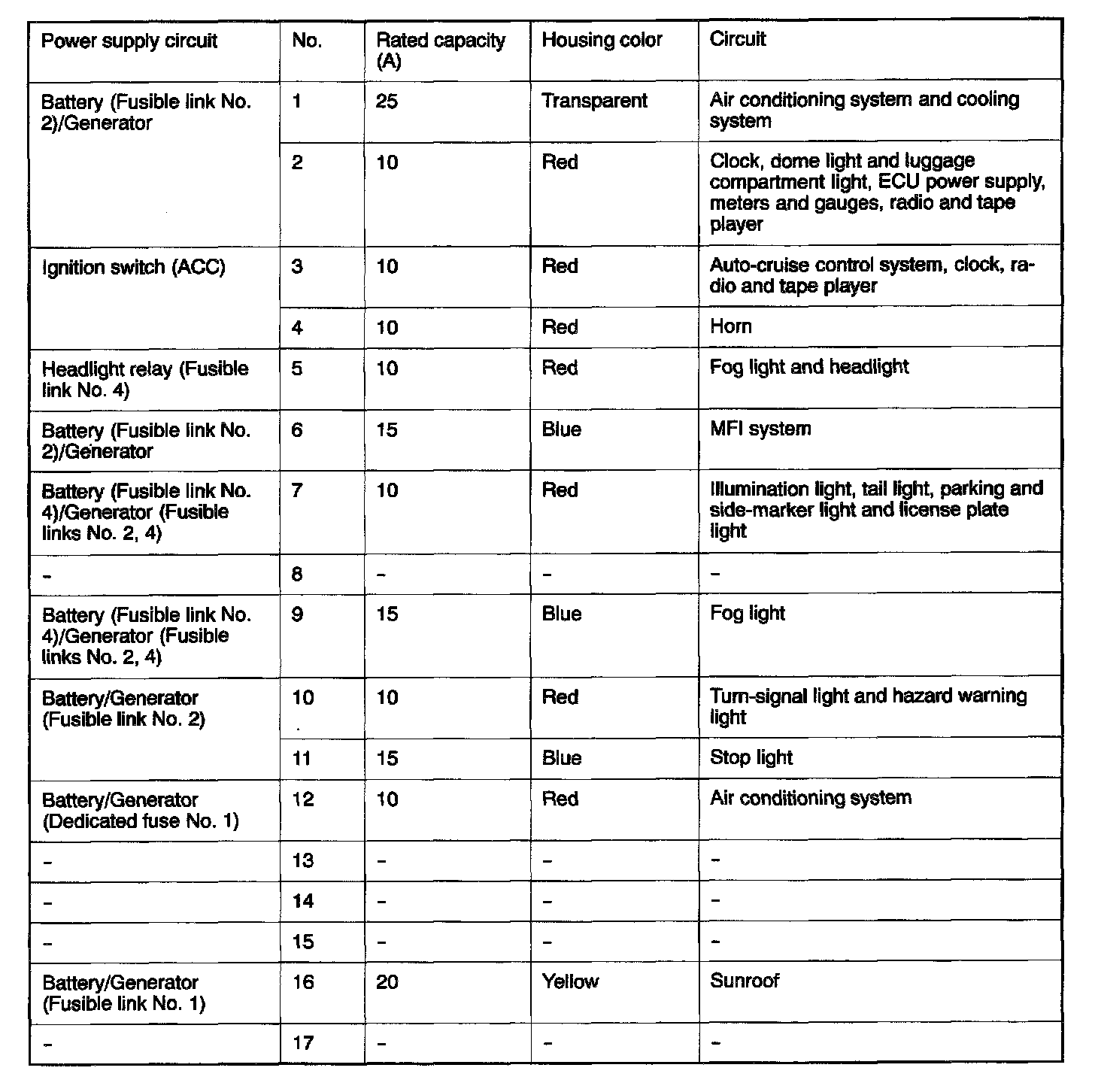

Dedicated Fuse Location Index:

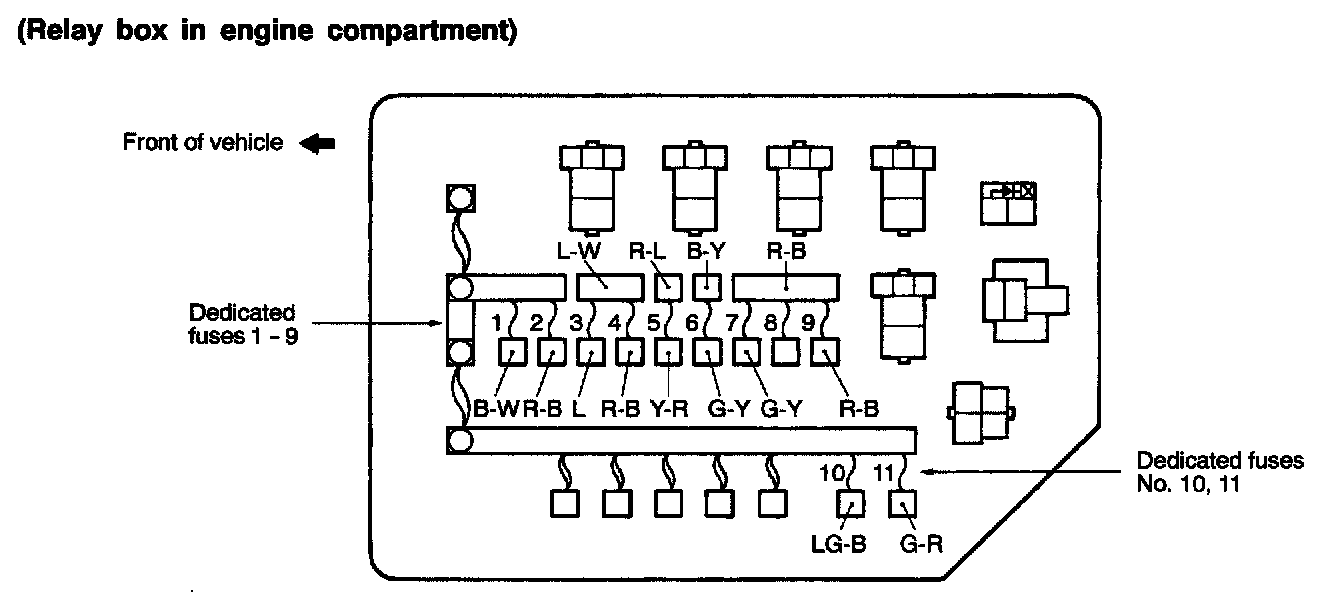

Fuse 1 - 11 (Relay Box In Engine Compartment):
Fuse 12 - 15 (A/C Relay Box In Engine Compartment):

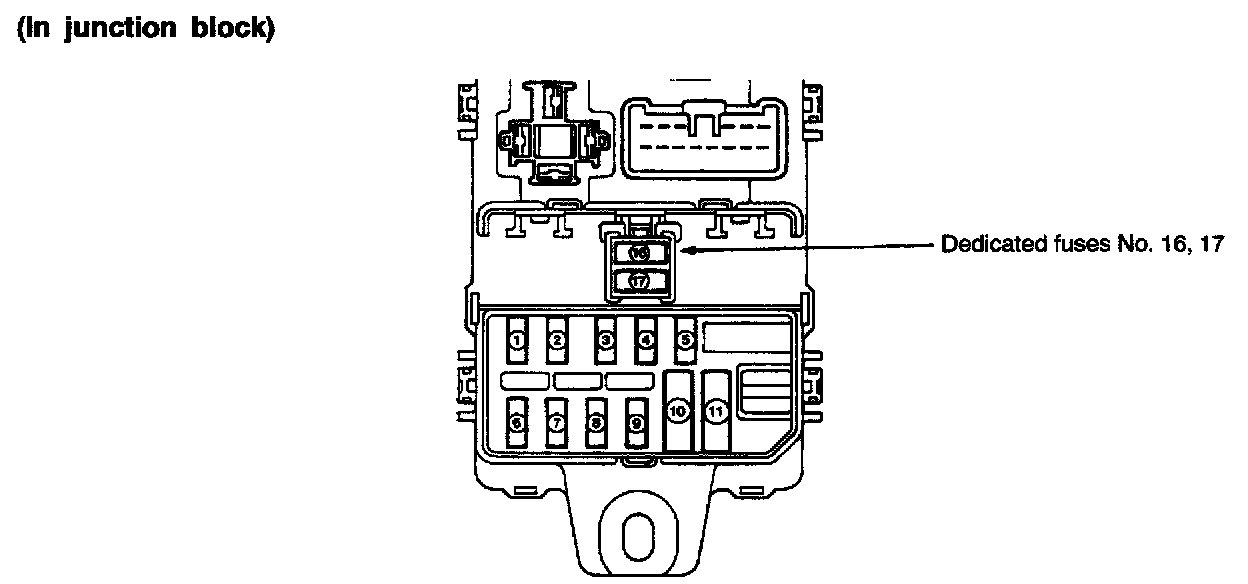

Fuse 16 - 17 (In Junction Block):
