Power Steering Line/Hose: Service and Repair

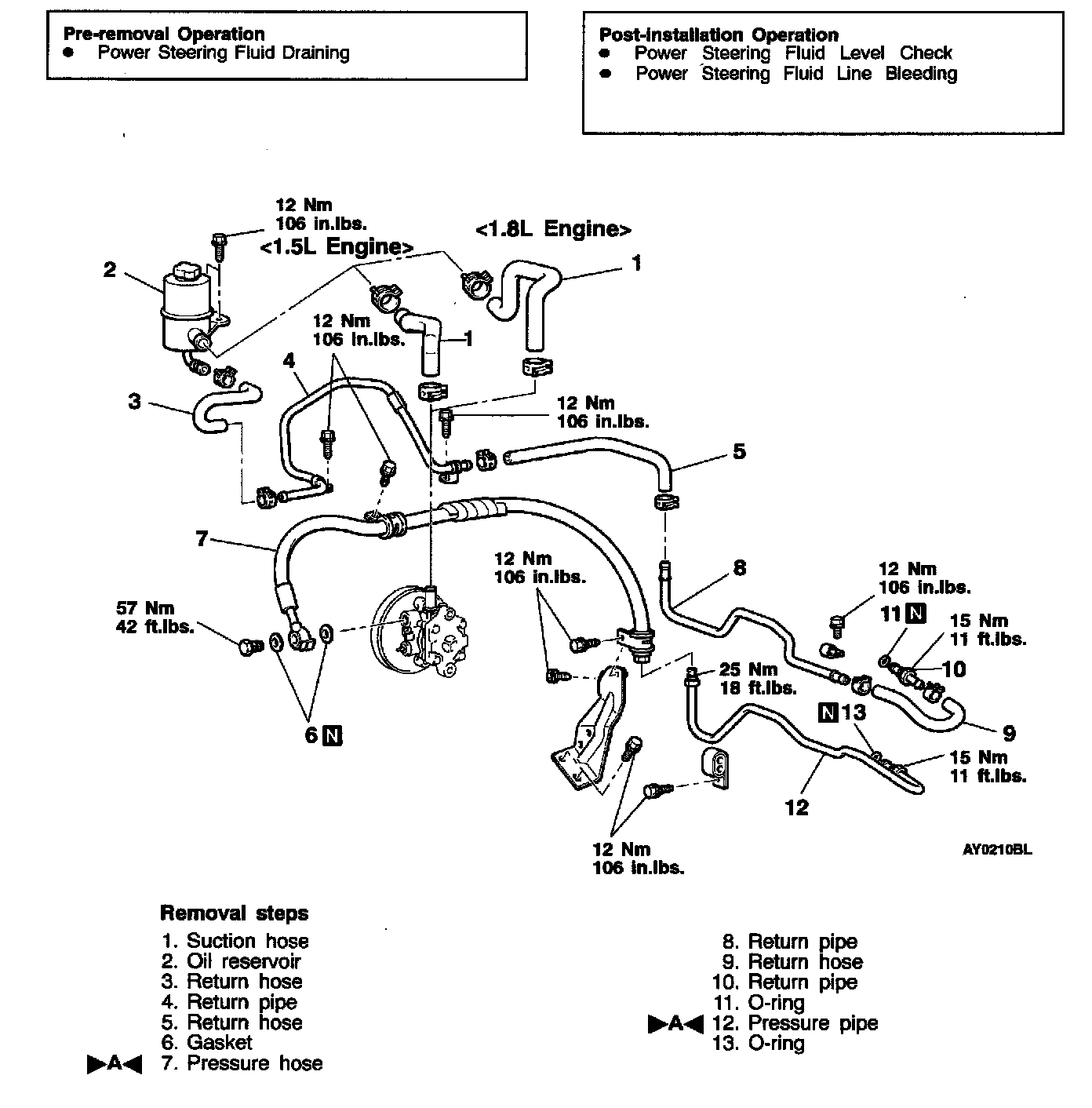

REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINT
]A[ PRESSURE HOSE/PRESSURE PIPE INSTALLATION

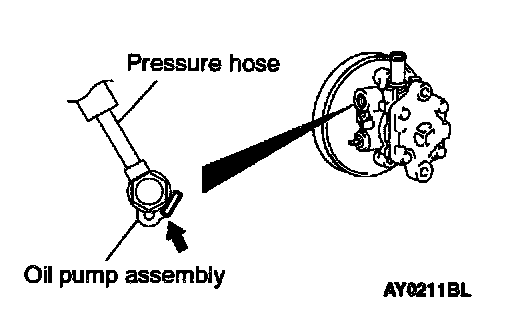

1. The pressure hose should be installed.

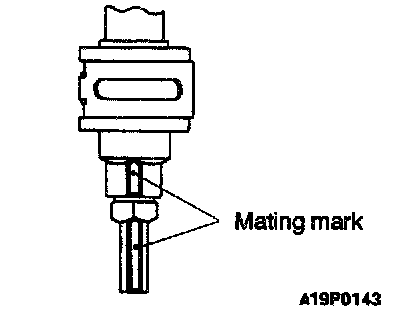

2. Align the mating marks on the pressure hose and pressure tube, and install the pressure hose.
