Fluid - M/T: Service and Repair
MANUAL TRANSAXLE
Change oil

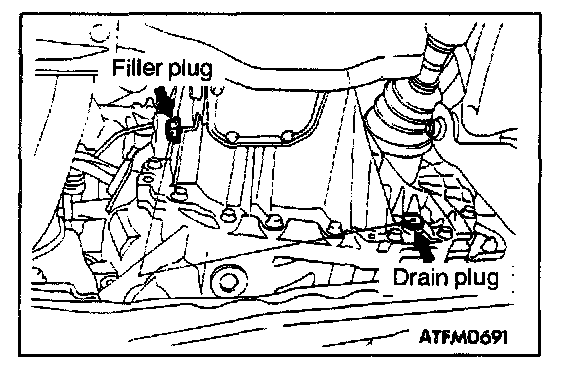

1. Remove transaxle drain plug.
2. Drain oil.
3. Tighten drain plug to specified torque.
Tightening torque: 32 Nm (24 ft.lbs.)
4. Remove filler plug and fill with specified oil till the level comes to the lower portion of filler plug hole.
Specified oil:
Hypoid gear oil SAE 75W - 90 or 75W - 85W conforming to API classification GL-4
Quantity:
5. Tighten filler plug to specified torque.
Tightening torque: 32 Nm (24 ft.lbs.)
