Splice Locations

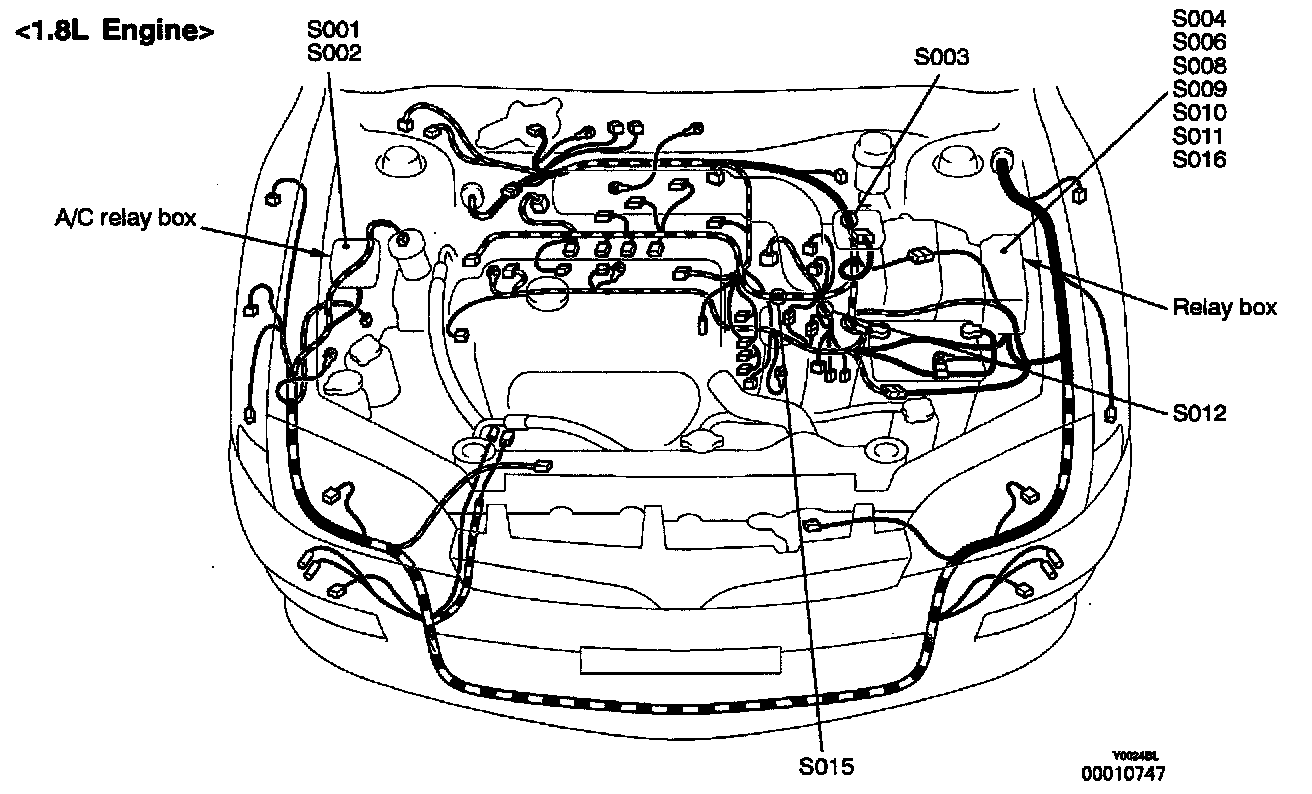

Engine Compartment (S001 - S004, S006, S008 - S012 And S015 - S016):

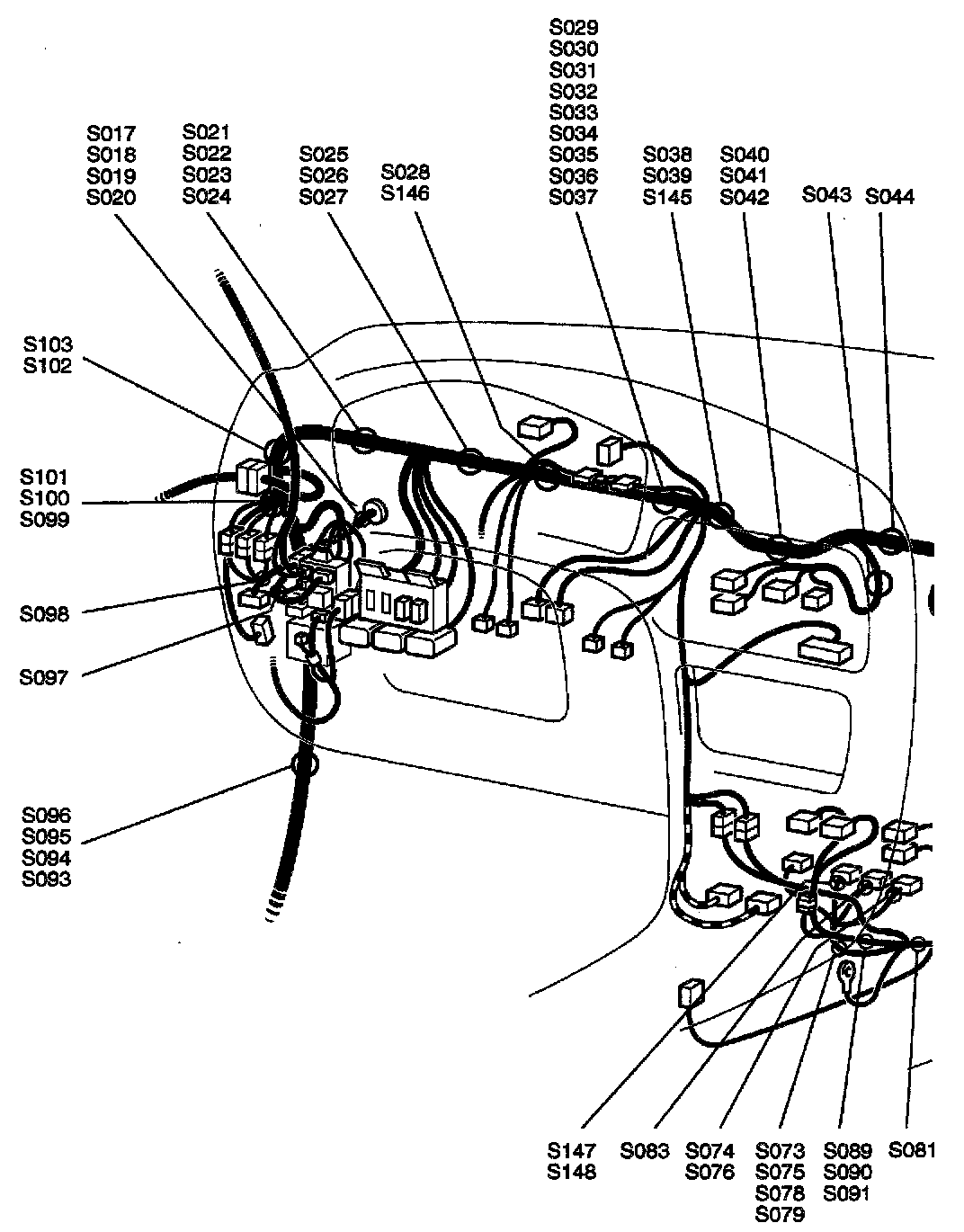

Dash Panel (S017 - S044, S073 - S076, S078 - S079, S081, S083, S089 - S091, S093 - S103 And S145 - S148):

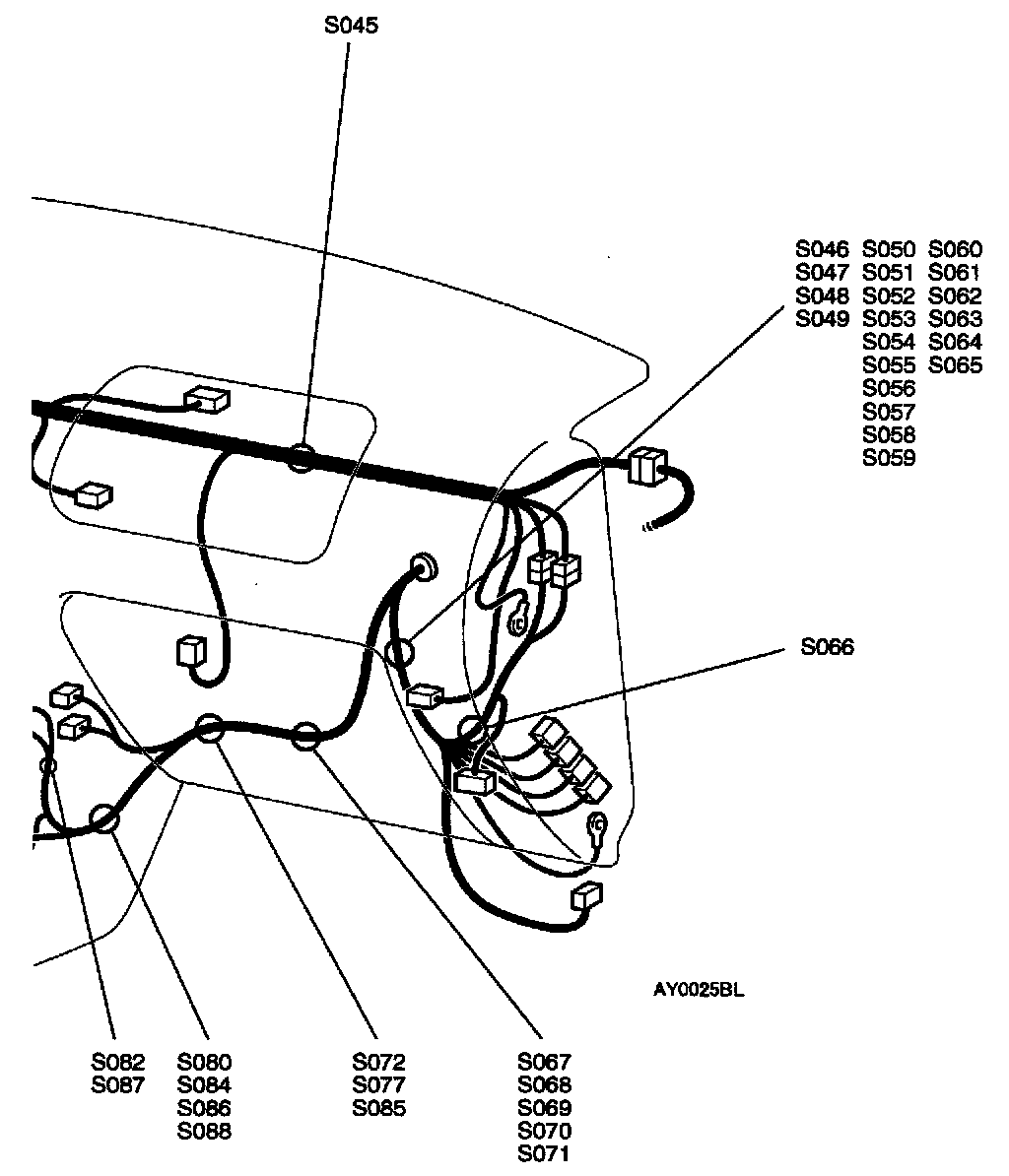

Dash Panel (S045 - S072, S077, S080, S082 And S084 - S088):

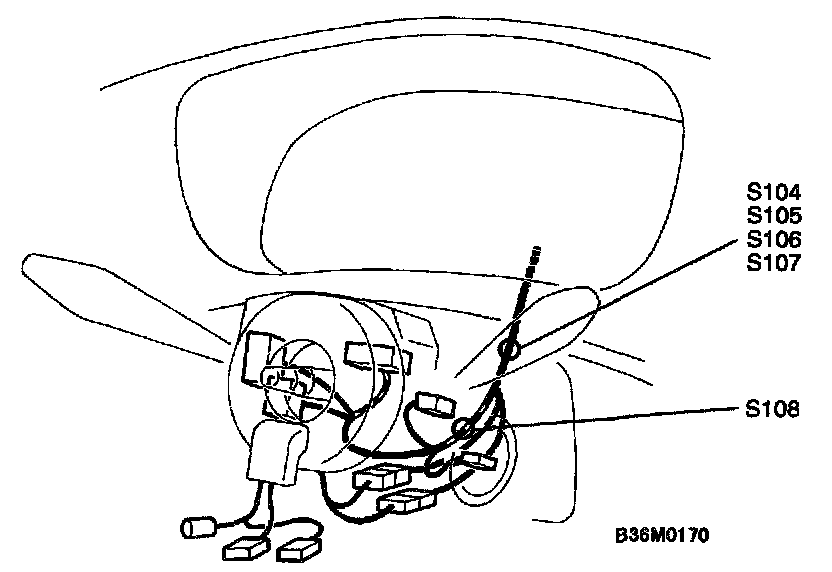

Steering Column (S104 - S108):

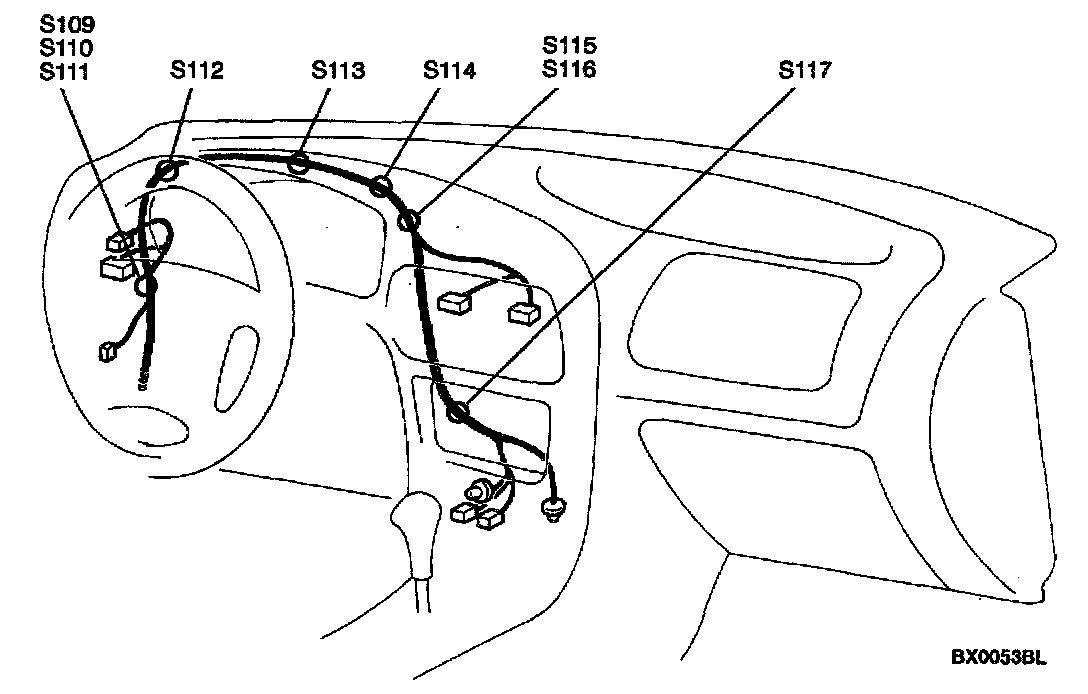

Instrument Panel (S109 - S117):

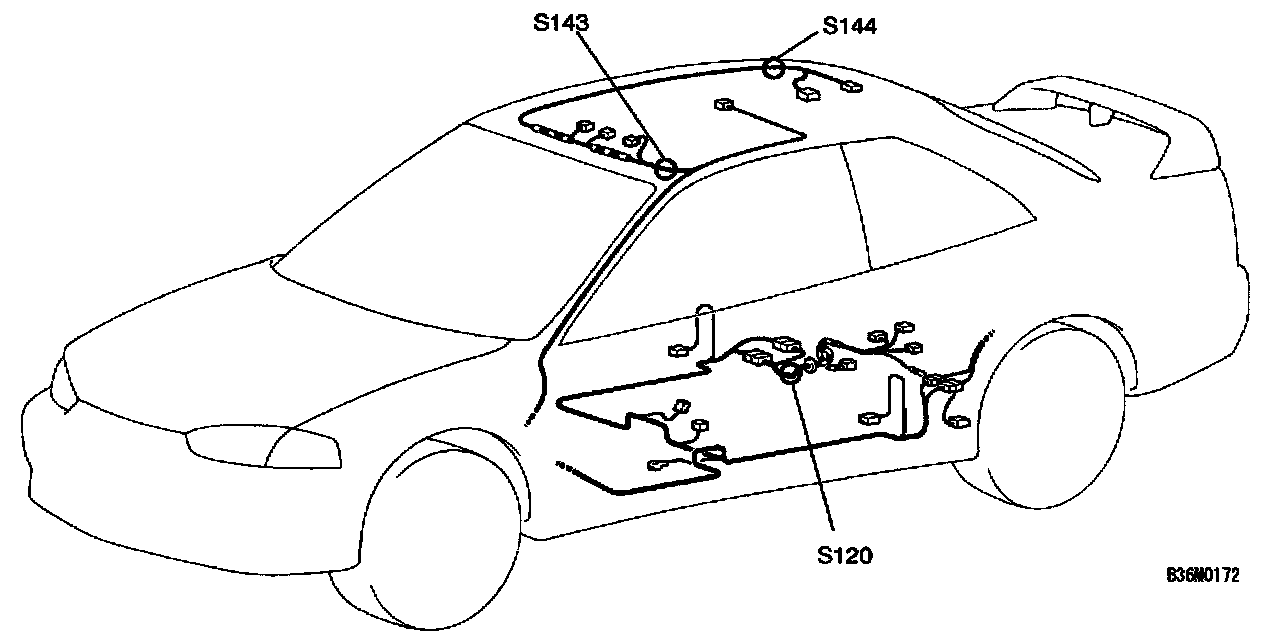

Interior (S120 And S143 - S144):

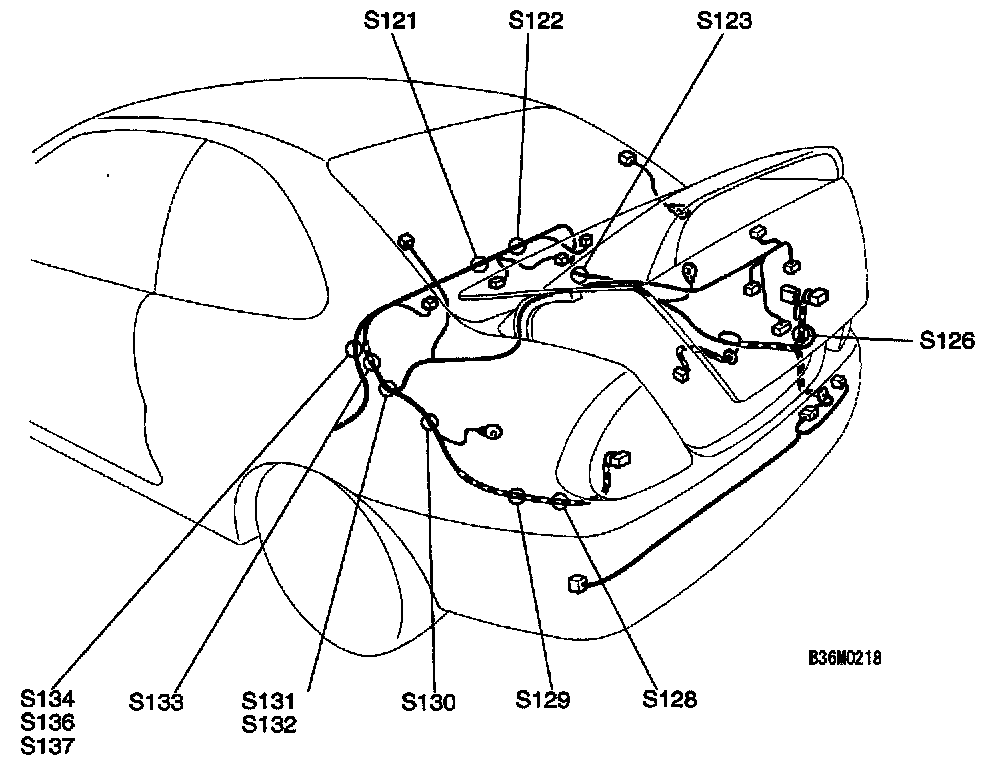

Luggage Compartment (S121 - S123, S126, S128 - S134 & S136 - S137):

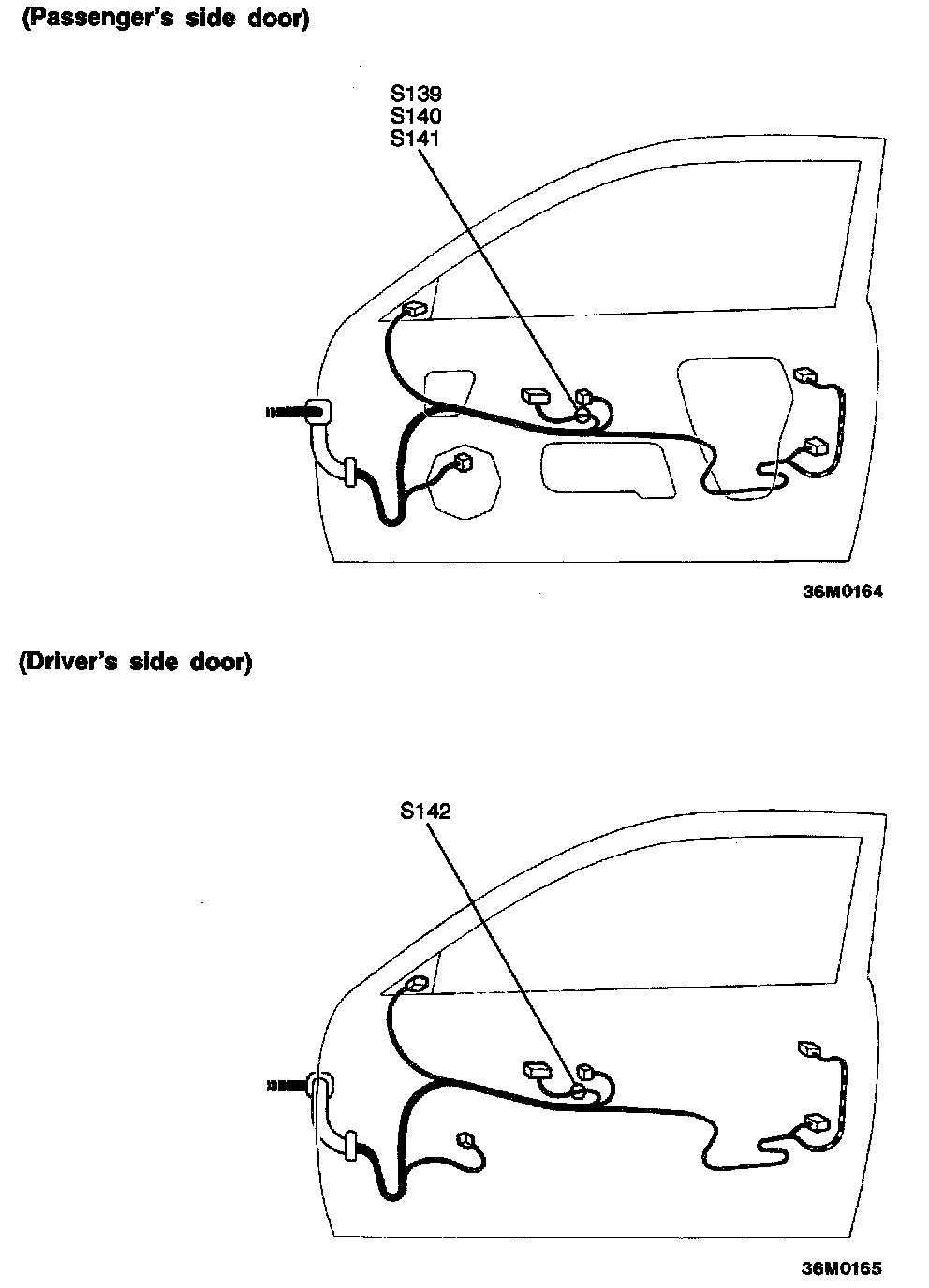

Door (S139 - S142):
