Heater Core: Service and Repair

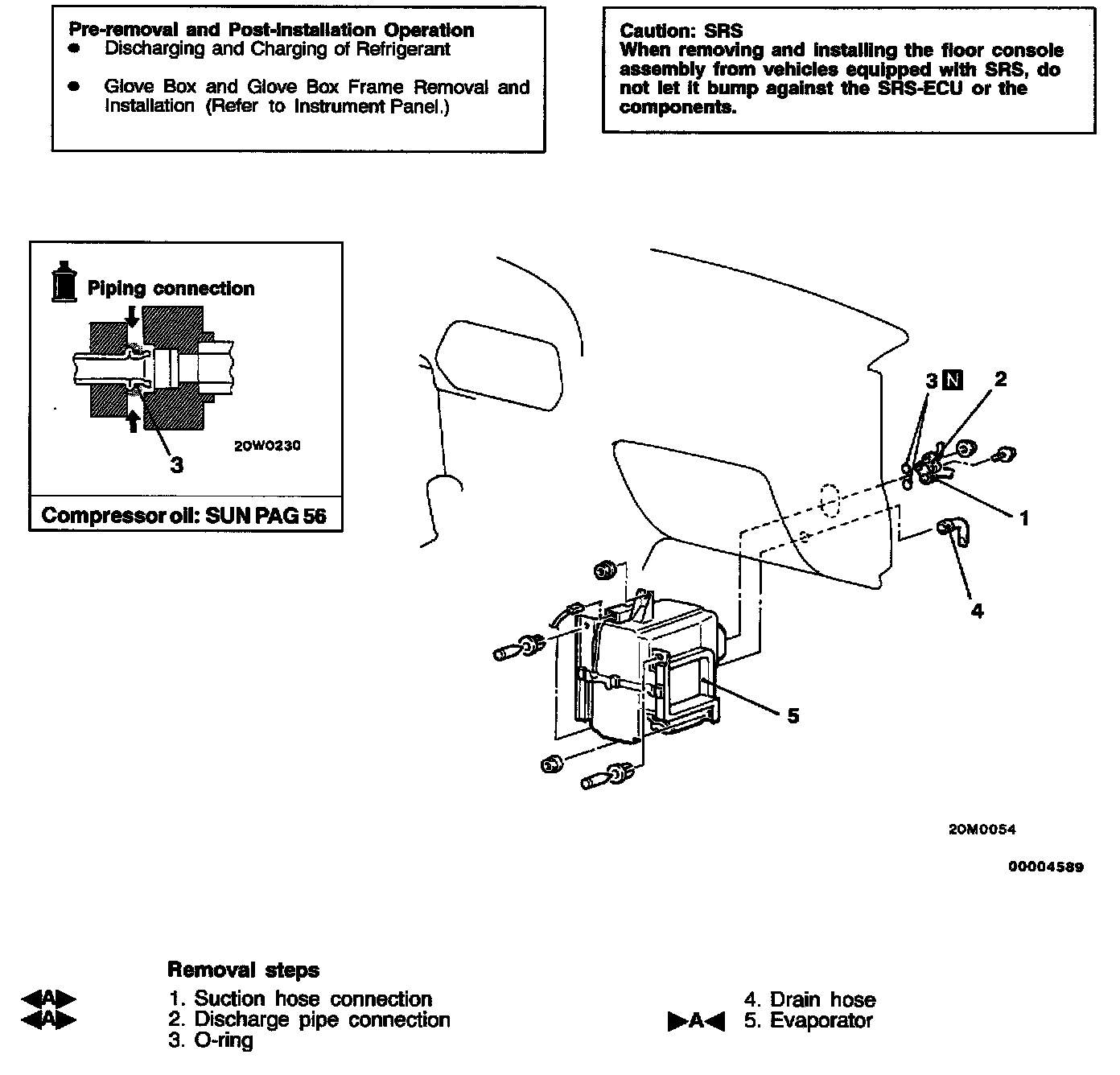

EVAPORATOR






REMOVAL SERVICE POINT

SUCTION HOSE, DISCHARGE PIPE DISCONNECTION
Plug the disconnected hose and the evaporator nipple not to let foreign matter get into them.

CAUTION: Seal the hoses completely, otherwise the compressor oil and receiver will absorb water vapor easily.

INSTALLATION SERVICE POINT

>A< EVAPORATOR INSTALLATION
When replacing the evaporator, refill it with a specified amount of compressor oil and install it (to the vehicle).

Compressor oil: SUN PAG 56
Quantity: 60 cu.cm (2.0 fl.oz.)
