Home >> Mitsubishi >> 2002 >> Mirage Coupe LS L4-1834cc 1.8L SOHC MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Duct >> Service and Repair

Air Duct: Service and Repair

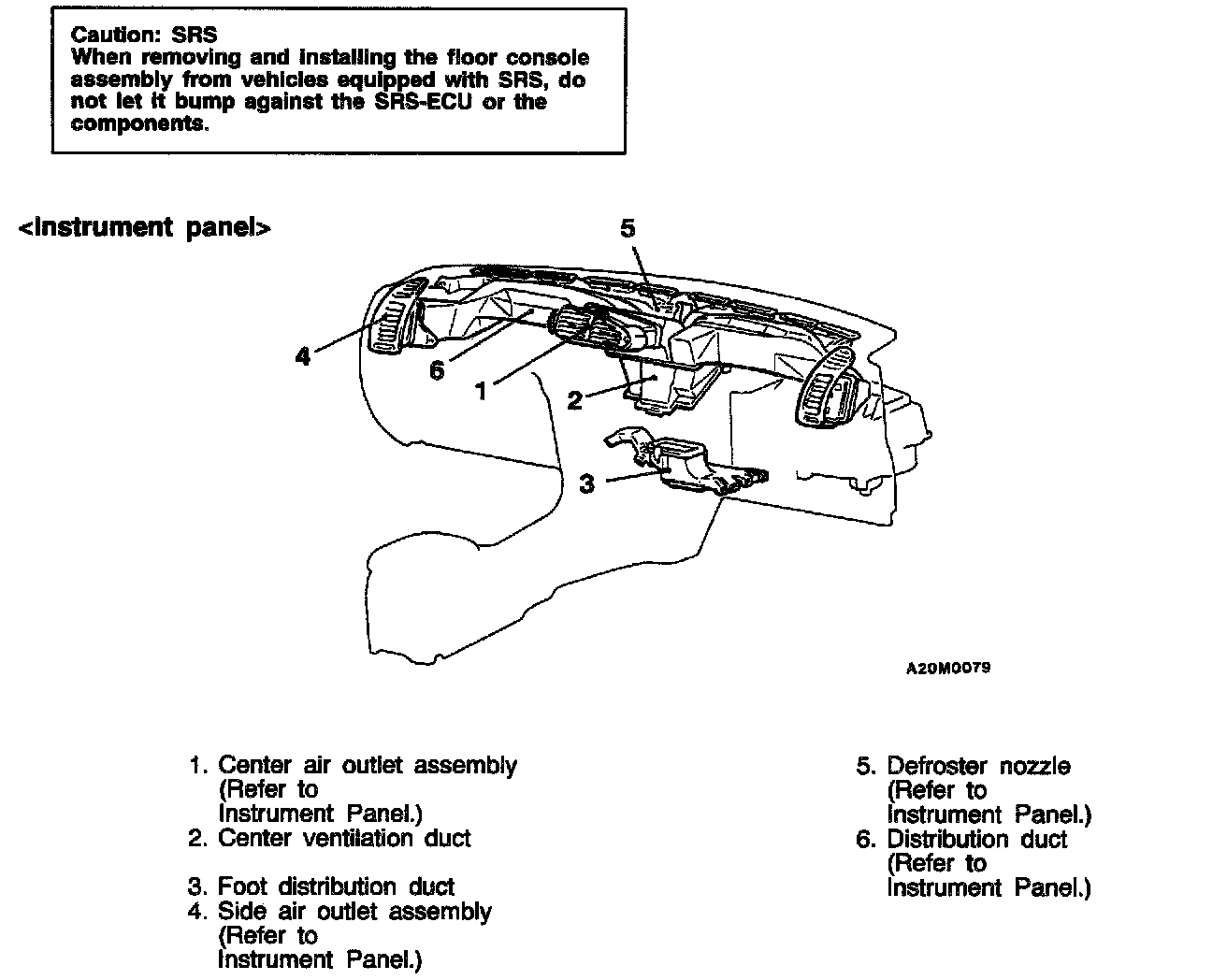

<Instrument Panel>:

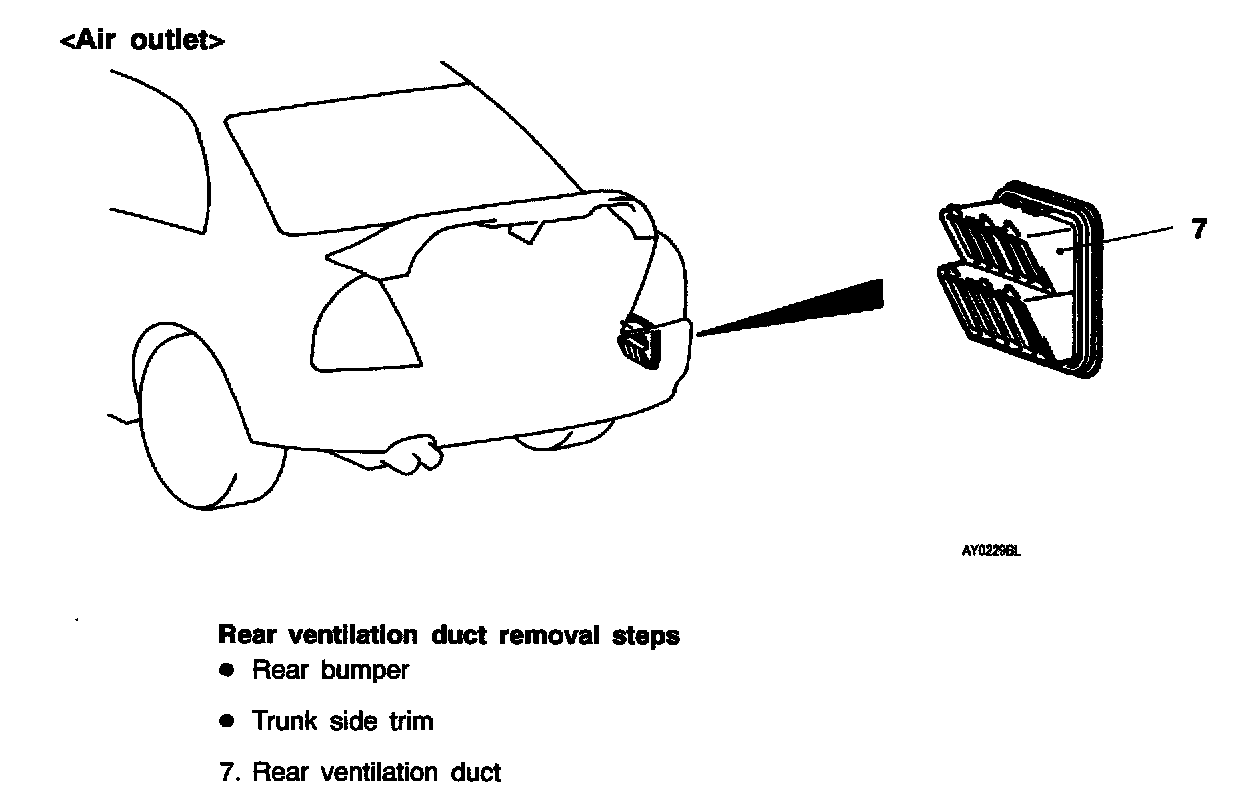

Air Outlet:
