Generator and Ignition System

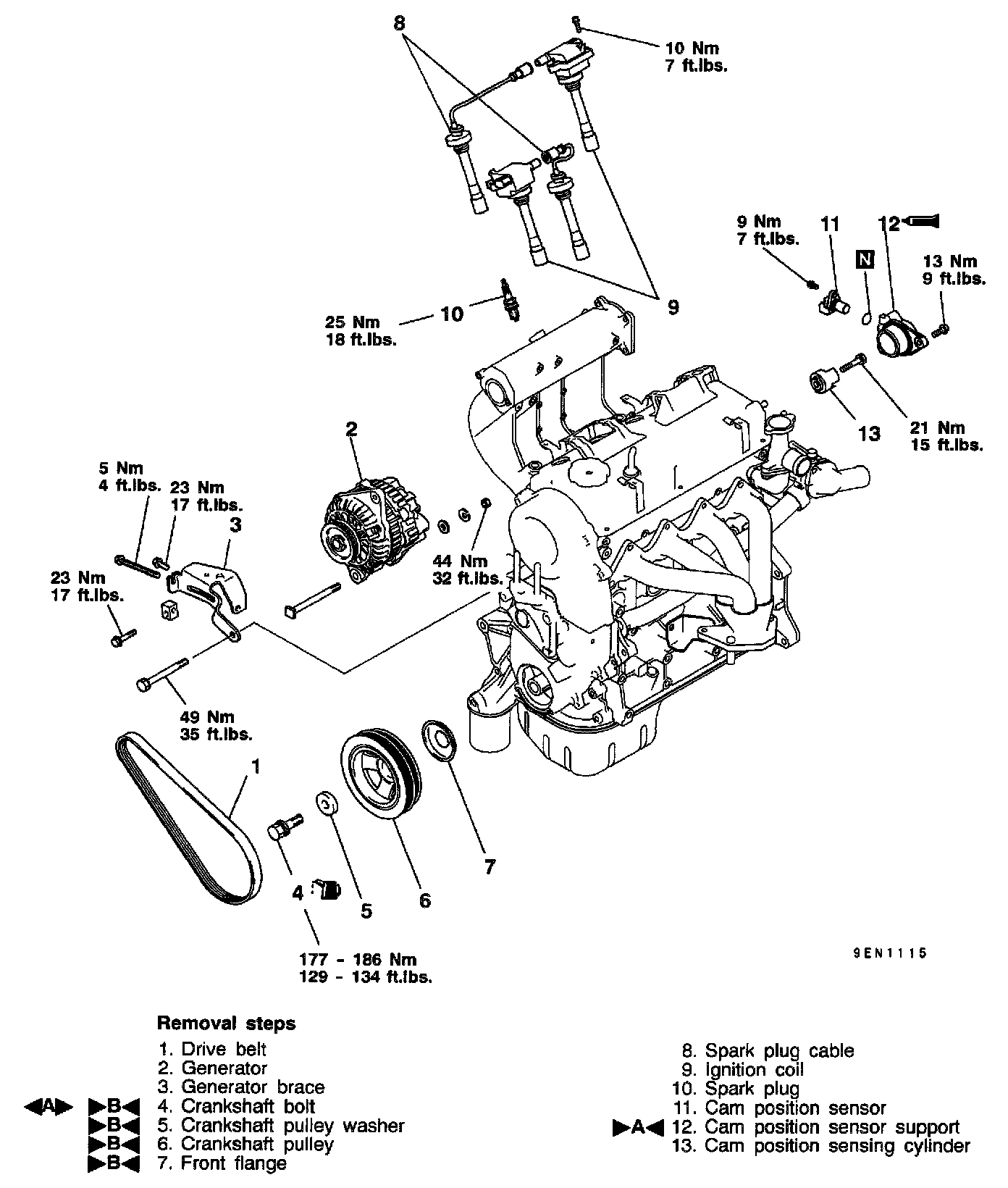

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[A] CRANKSHAFT BOLT REMOVAL

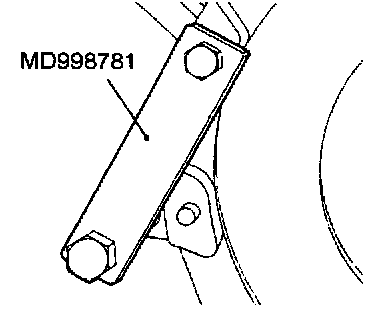

1. Lock the flywheel or drive plate in position using the special tool shown in the illustration, then loosen the crankshaft bolt.

INSTALLATION SERVICE POINTS
]A[ CAM POSITION SENSOR SUPPORT INSTALLATION
1. Clean the sealant application surfaces of cam position sensor support and cylinder head.

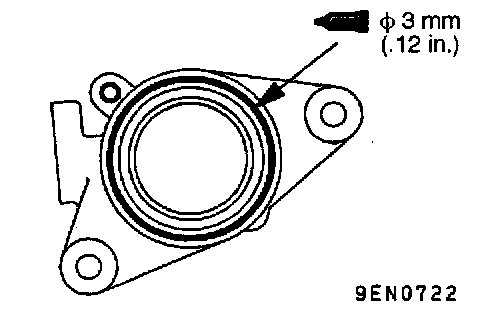

2. Apply a 3 mm (0.12 inch) diameter bead of sealant to the area shown in the illustration. Be sure to install the sensor support with in 15 minutes after applying sealant.
Specified sealant: Mitsubishi Genuine Part No. MD970389 or equivalent.
3. After installation, wait at least one hour. Never start the engine or let engine oil touch the adhesion surface during that time.

]B[ CRANKSHAFT BOLT INSTALLATION

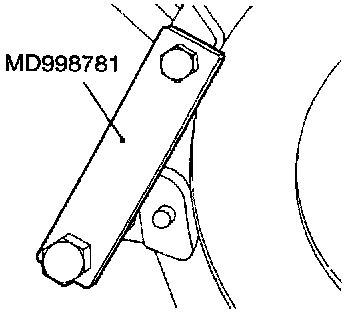

1. Lock the flywheel or drive plate in position using the special tool shown in the illustration.

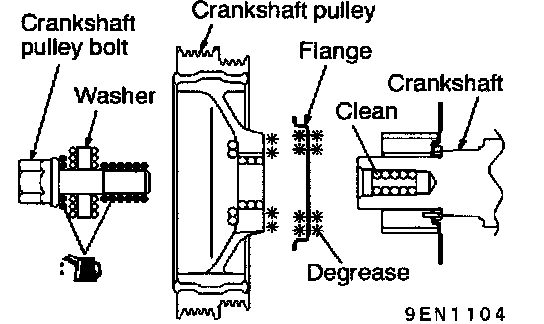

2. Clean the bolt hole in crankshaft, crankshaft bolt and crankshaft pulley's seating surface.
3. Degrease the cleaned seating surface of the crankshaft pulley.
4. Install the crankshaft pulley.
5. Apply oil to the threads of crankshaft bolt and the outer surface of washer.
6. Tighten the crankshaft bolt to the specified torque of 177 - 186 Nm (129 - 134 ft. lbs.).
