Automatic Transmission/Transaxle

HYDRAULIC CIRCUIT

[TRANSAXLE]

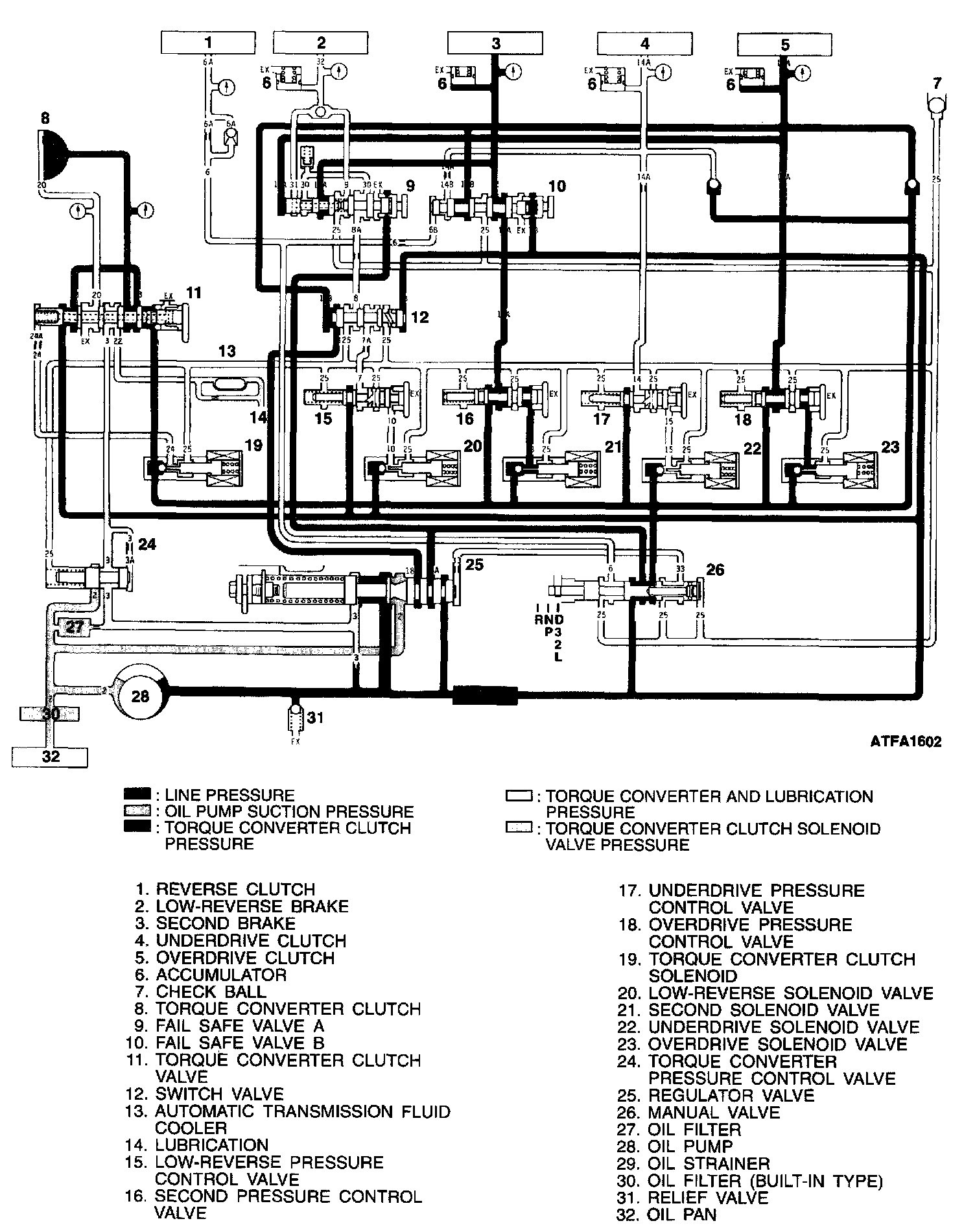

PARKING AND NEUTRAL

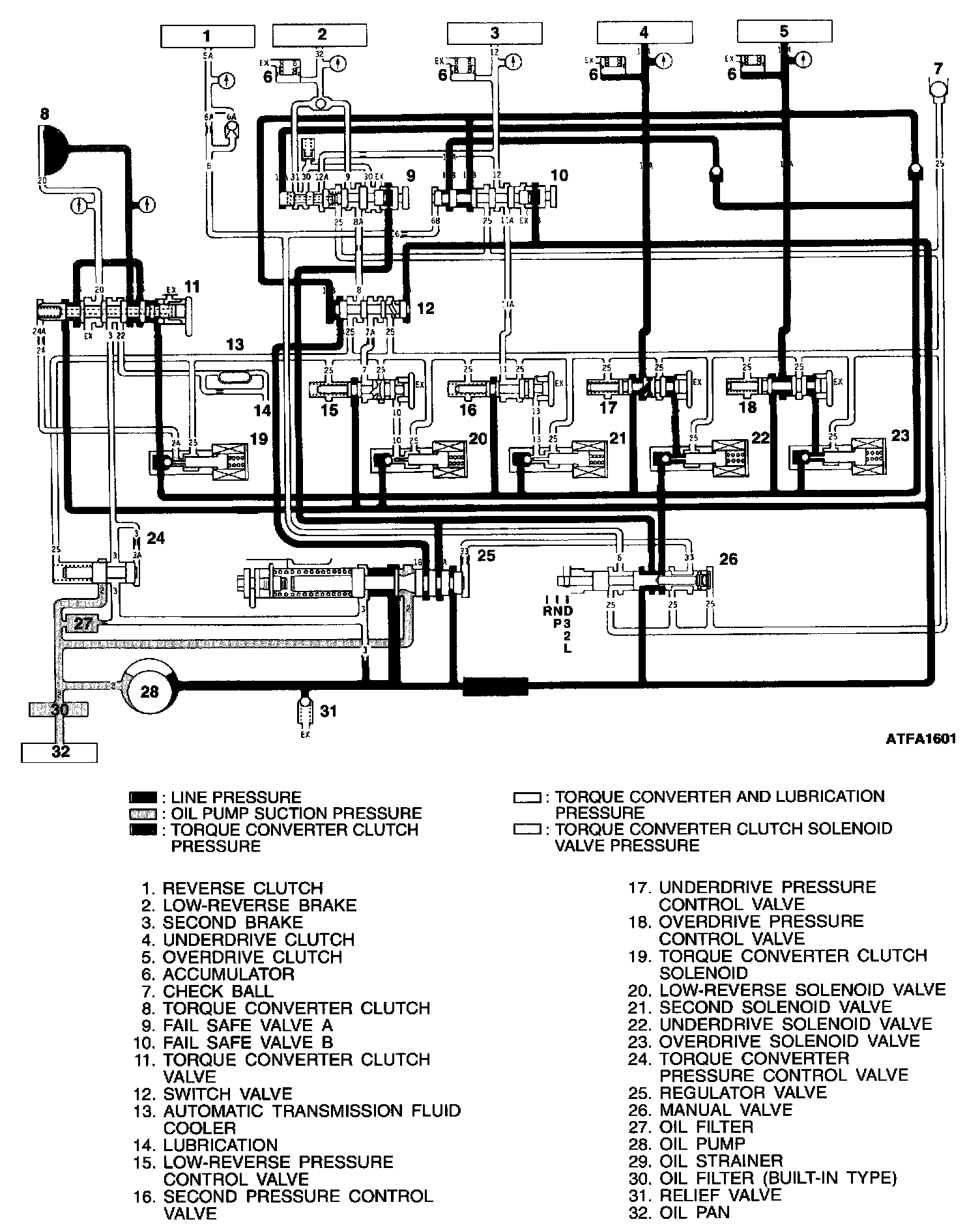

1ST GEAR

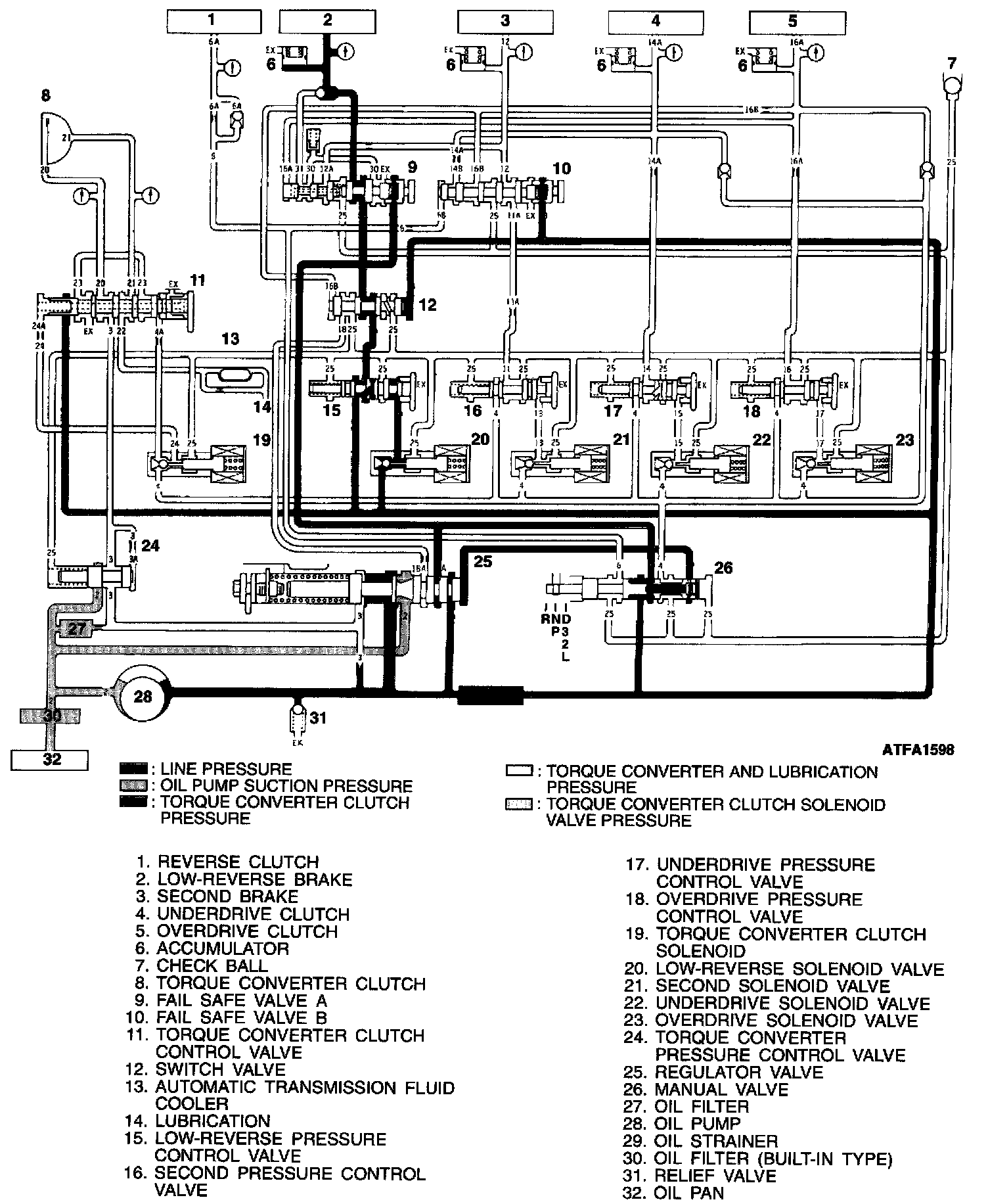

2ND GEAR

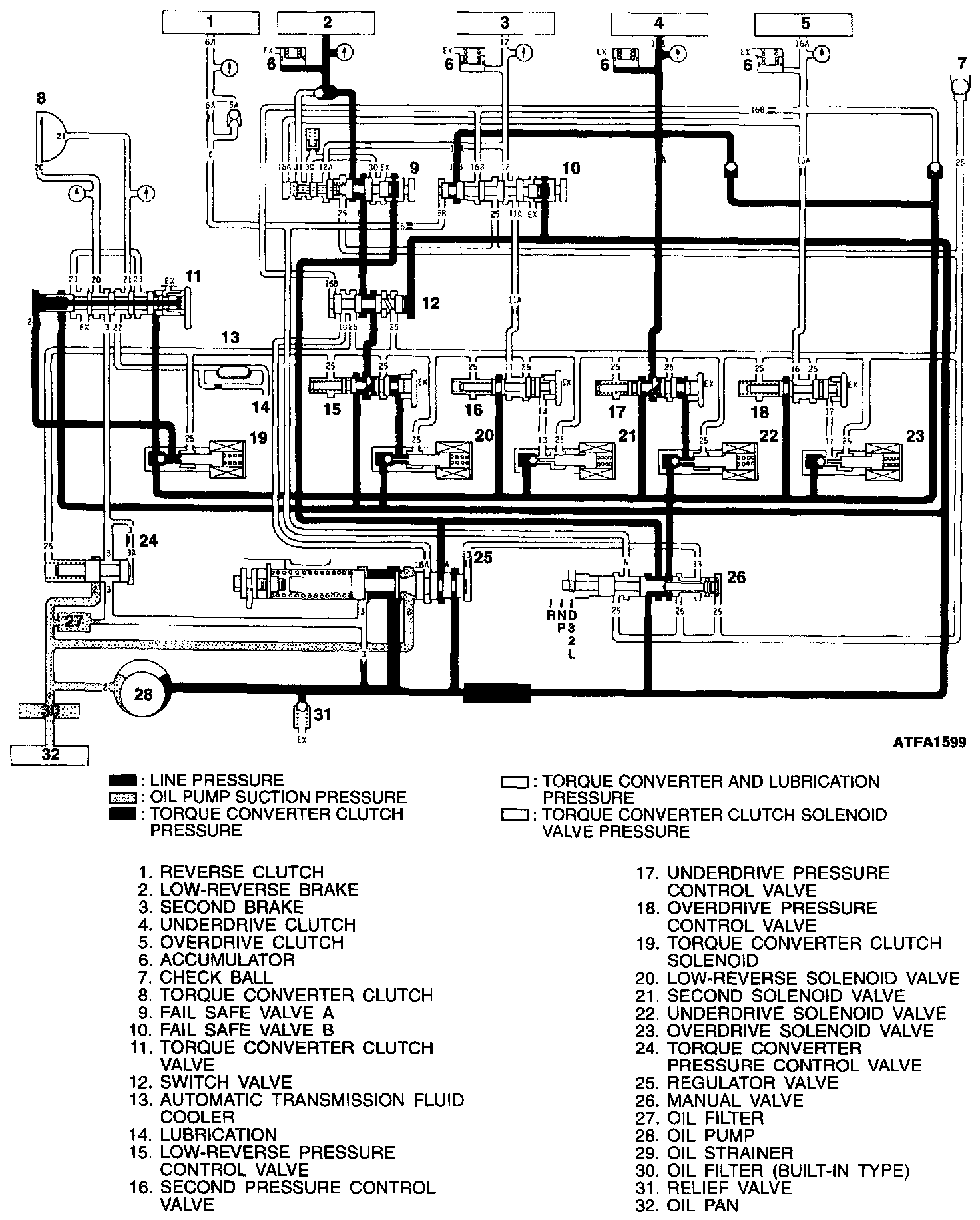

3RD GEAR

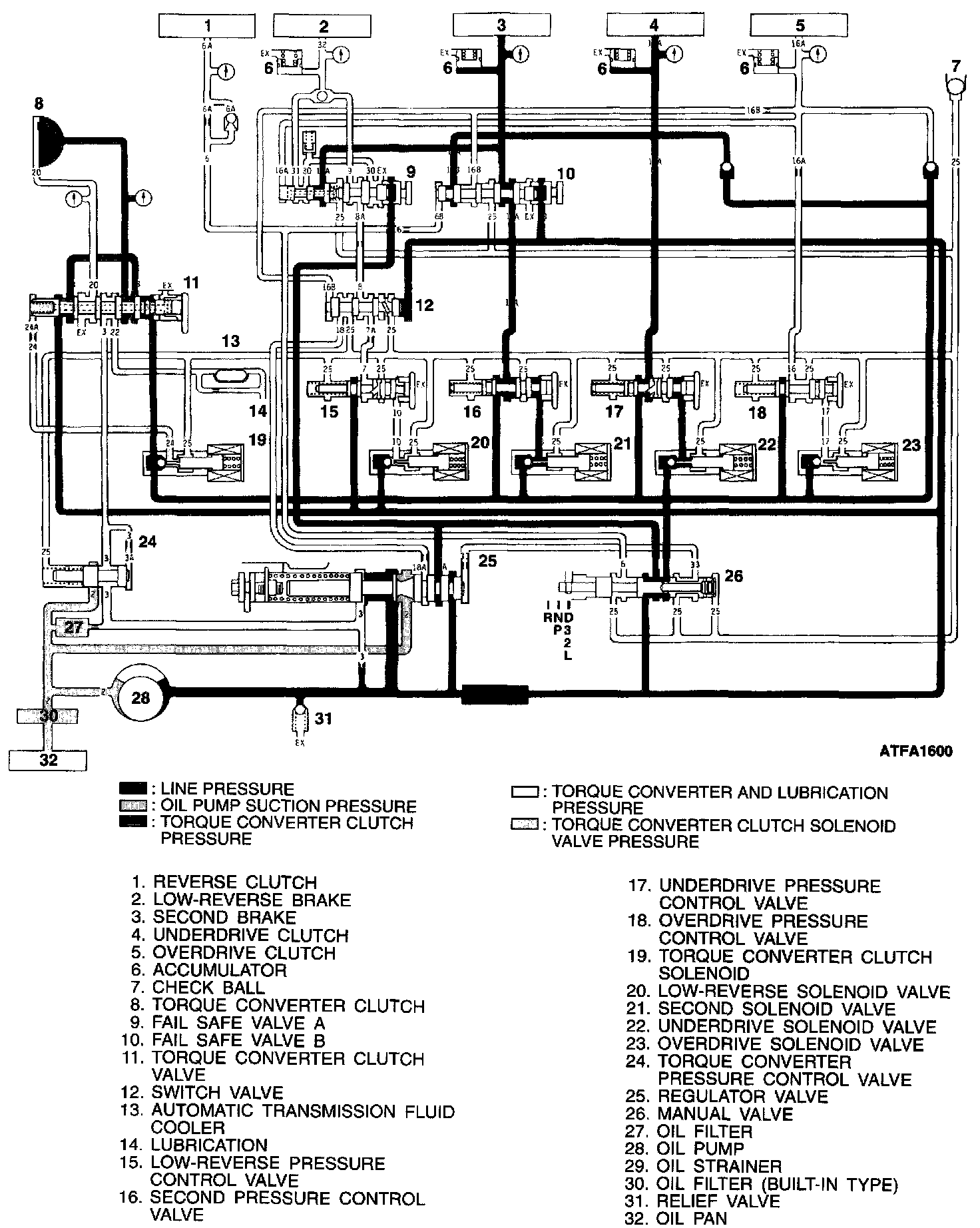

4TH GEAR





REVERSE

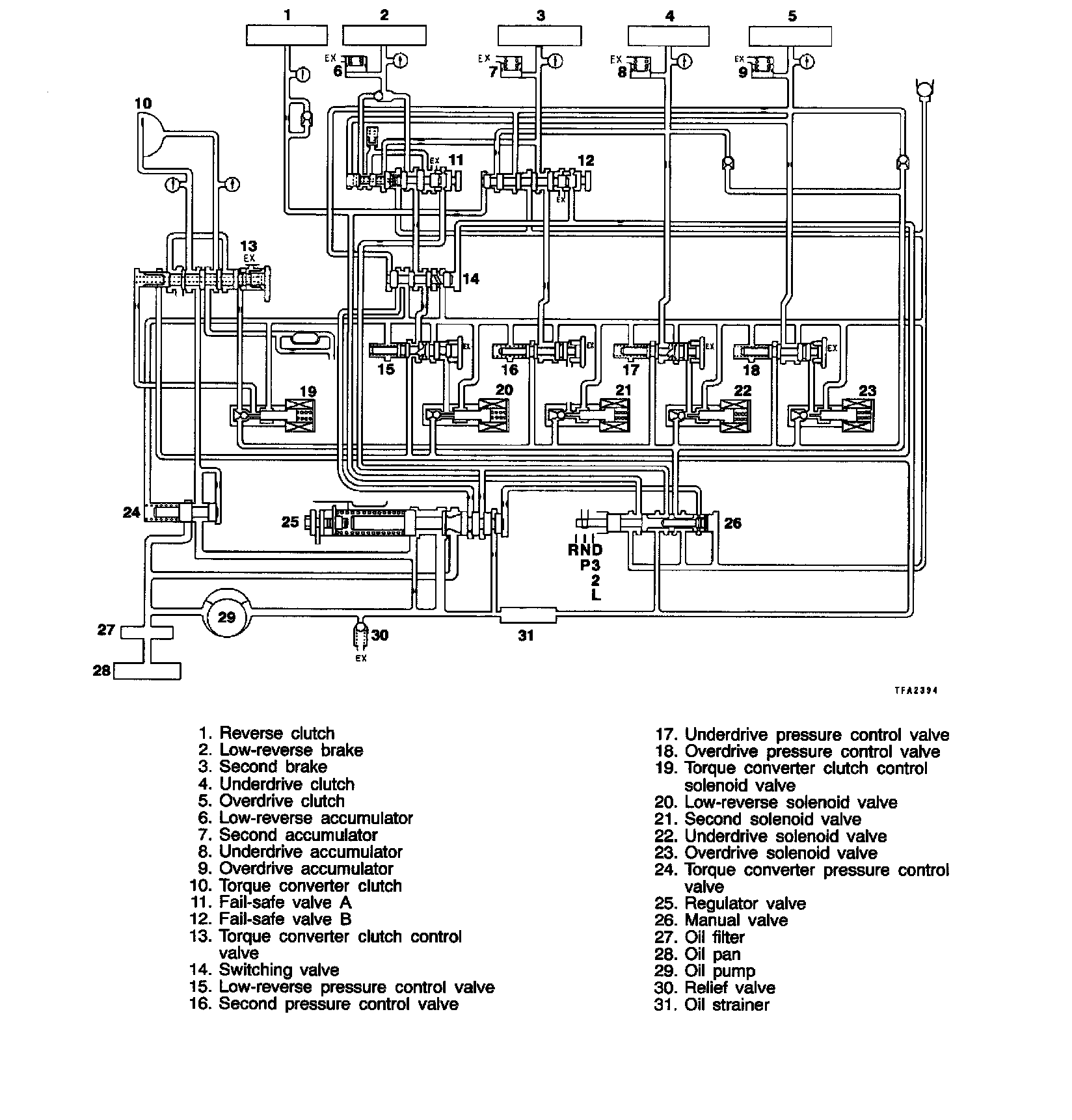

[TRANSAXLE OVERHAUL]
