Multiple Junction Connector
Multiple Junction Connector

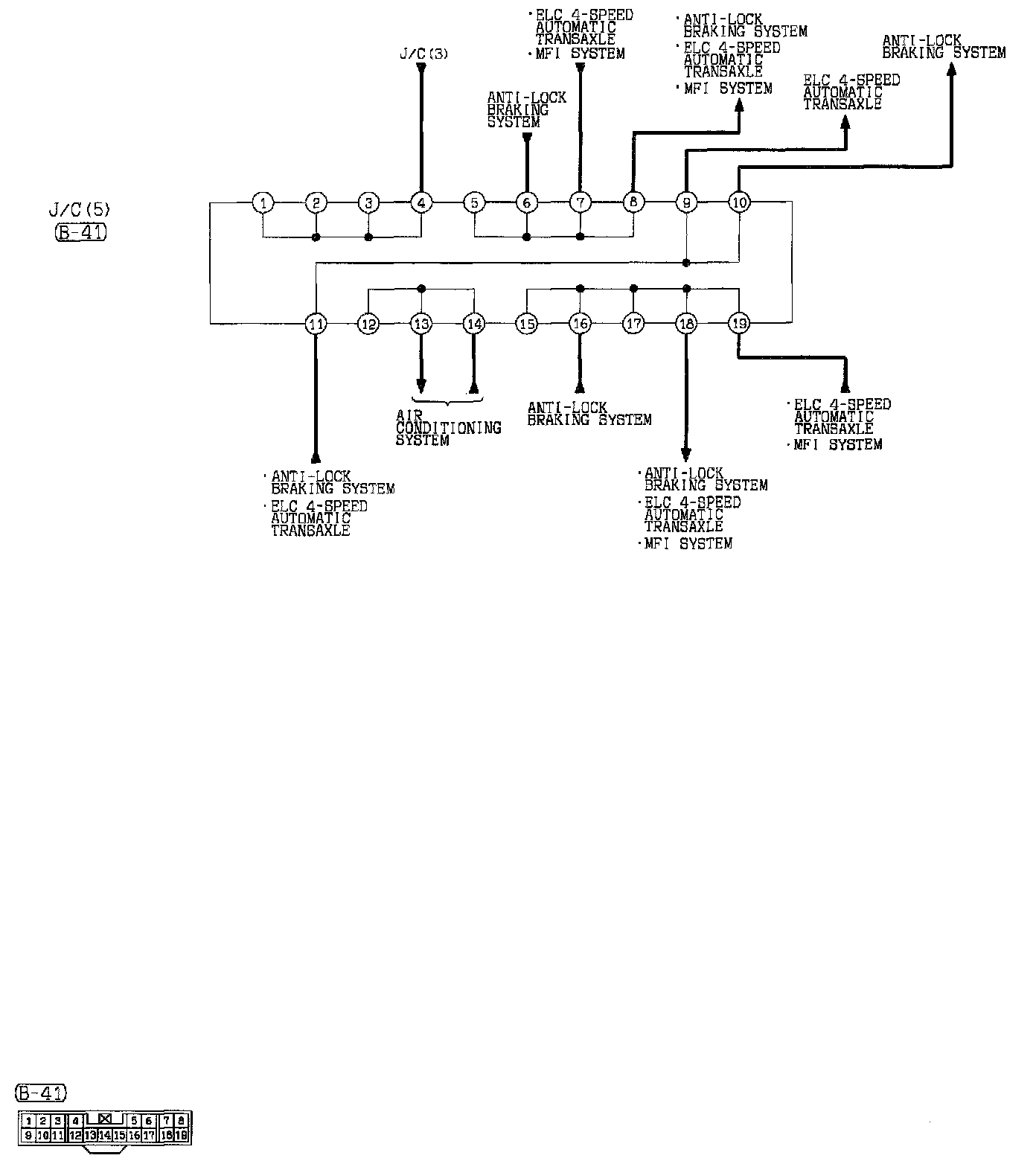

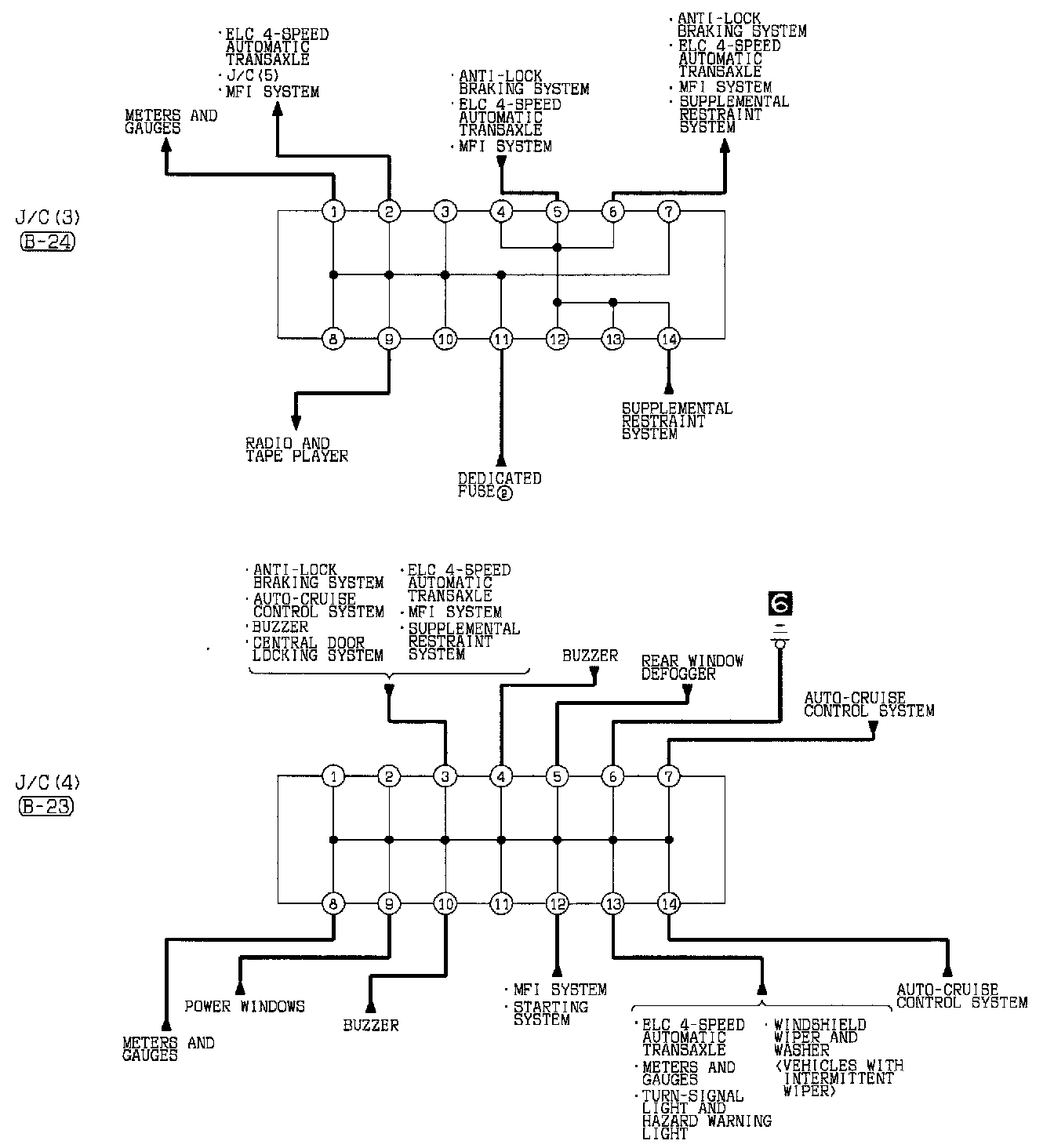

Joint Connector (J/C) Part 1:
Part 2:
Part 3:
