Home >> Mitsubishi >> 2002 >> Mirage Coupe LS L4-1834cc 1.8L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Components >> Sensors

Sensors

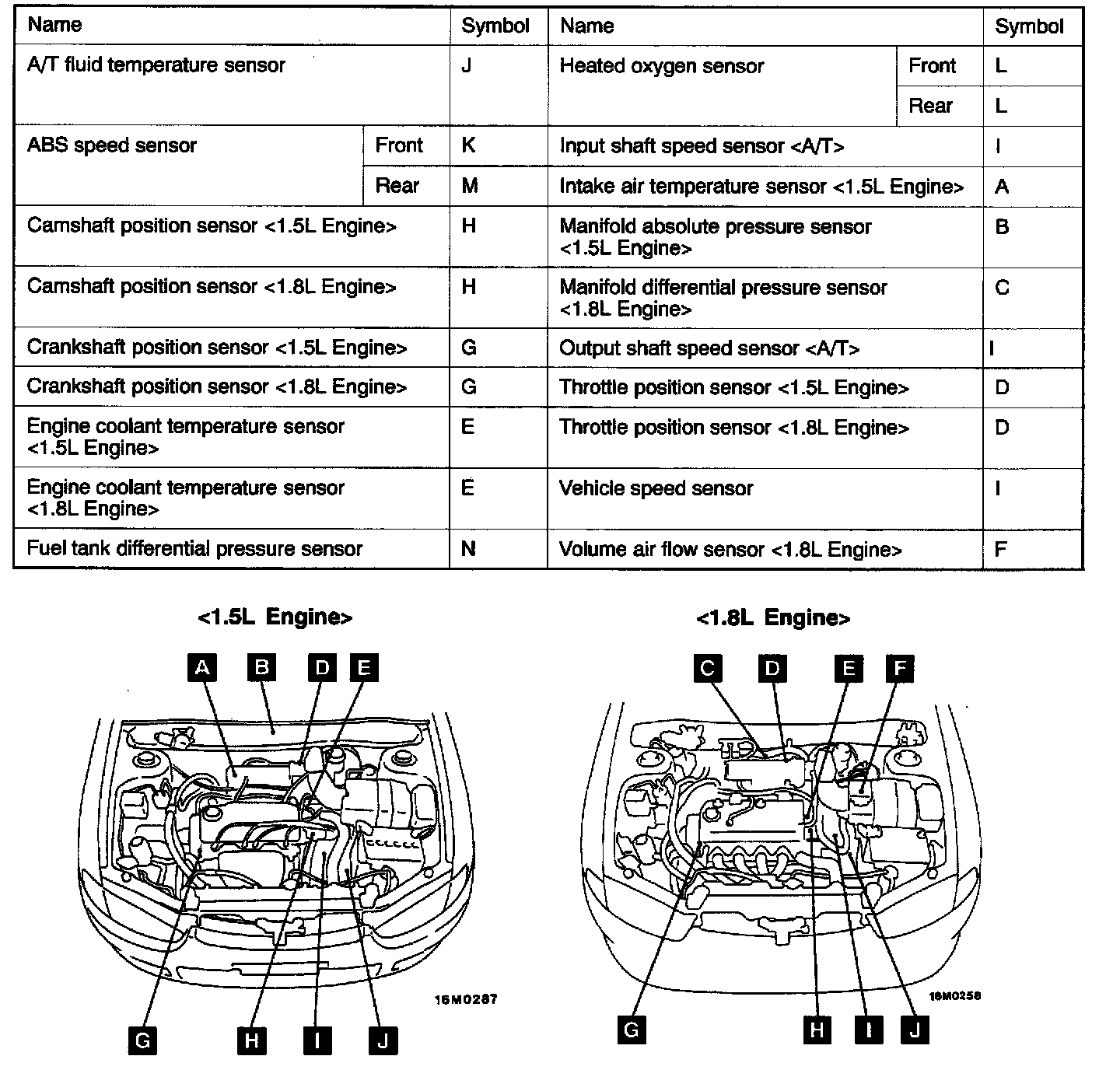

Location Index And Overall View:

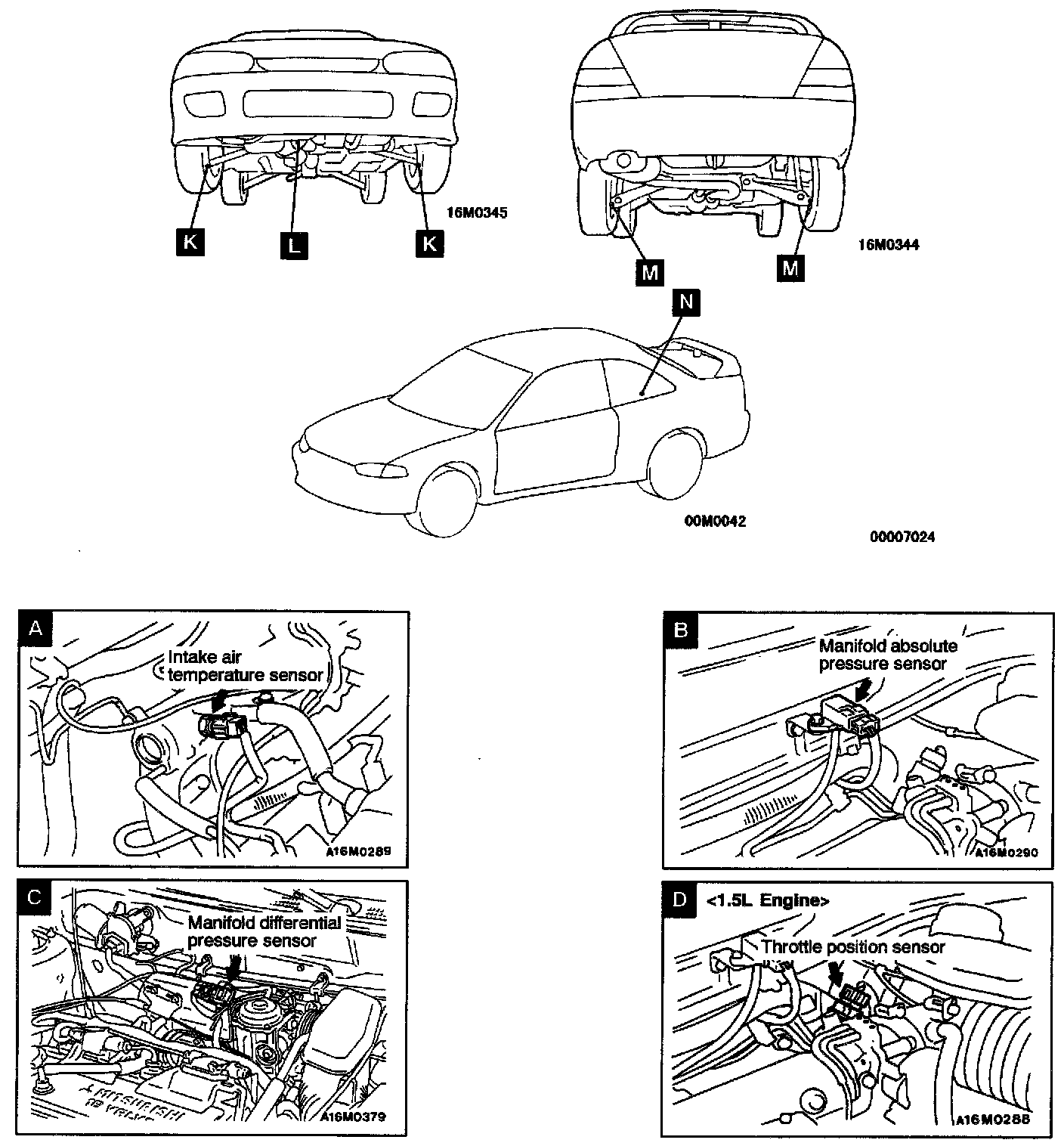

Overall View And Views A - D:

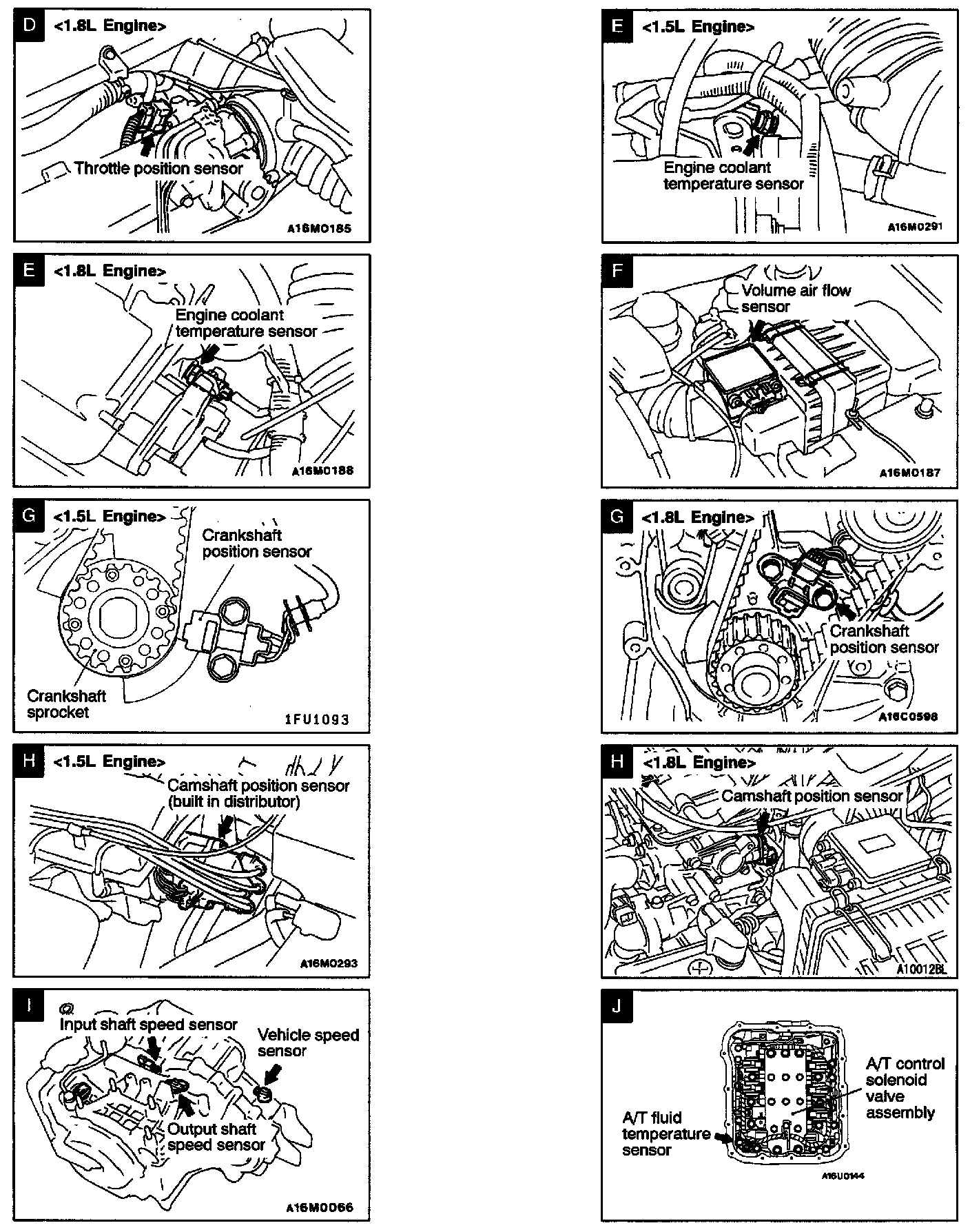

Views D - J:

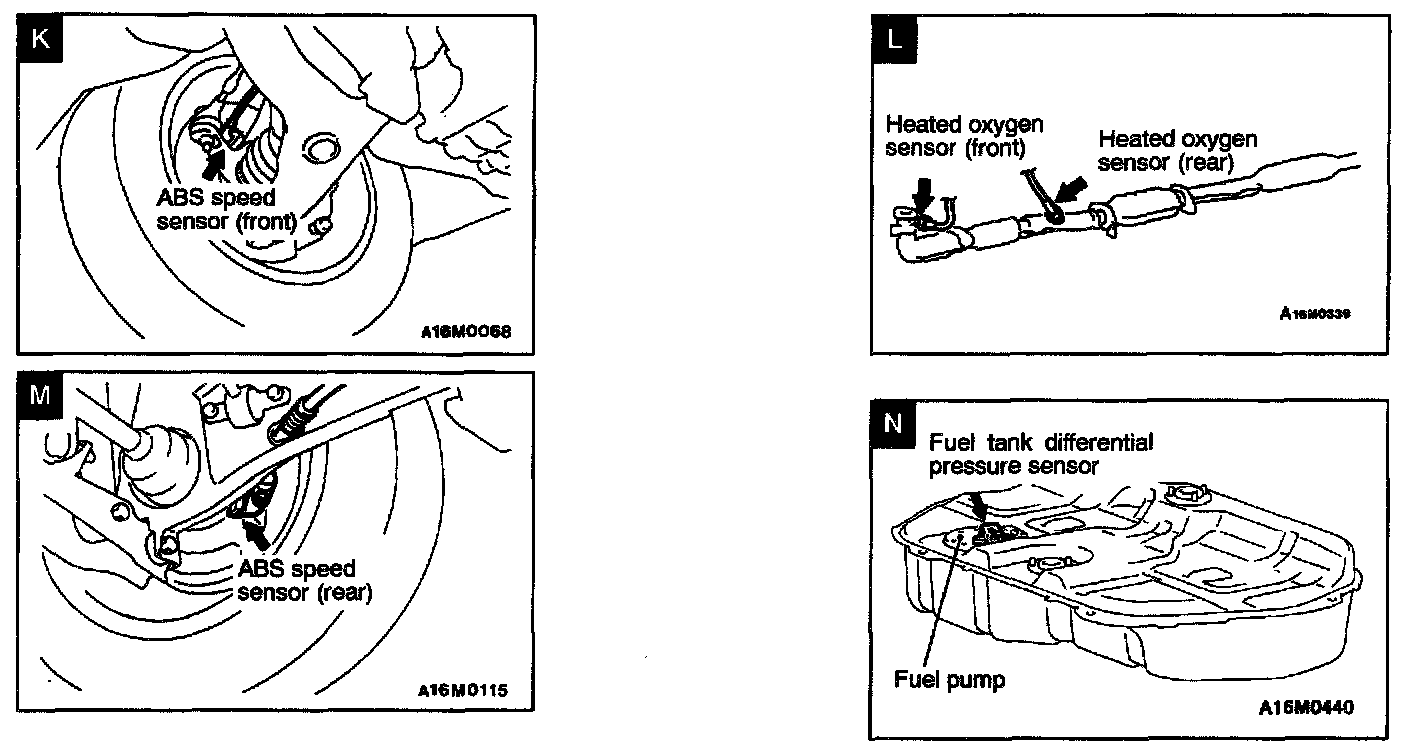

Views K - N:
