Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

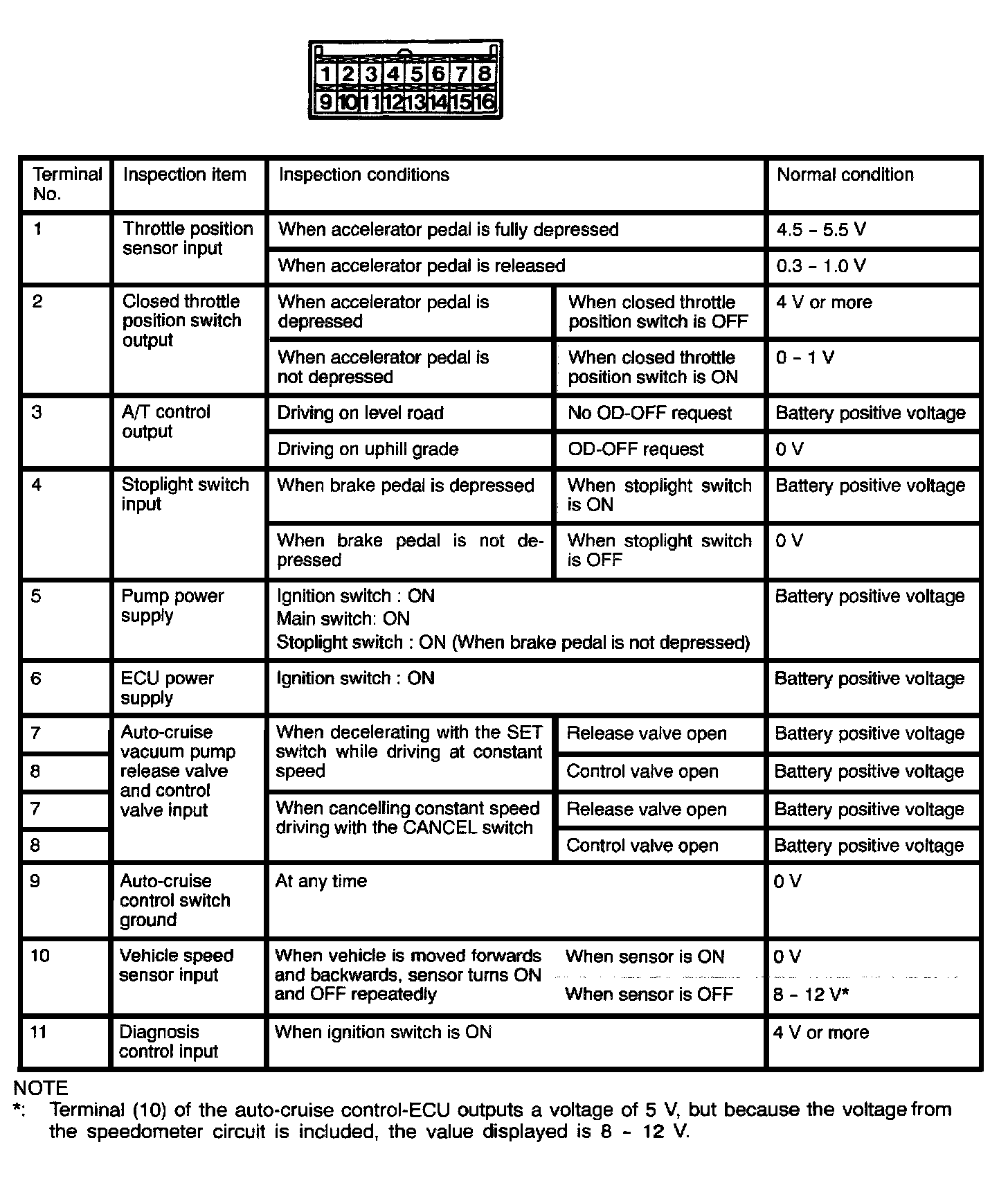

ECU Connector View And Terminals 1 - 11:

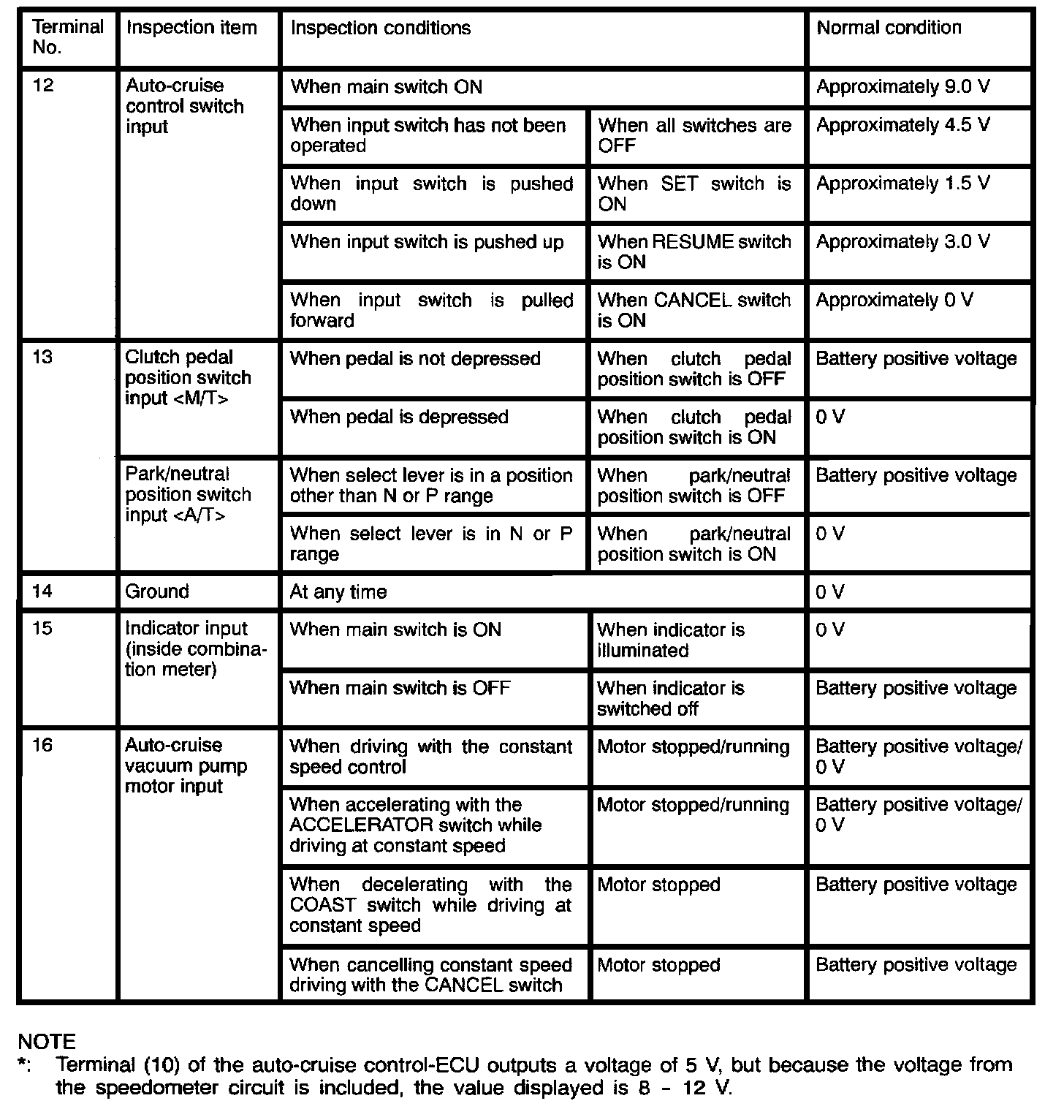

Terminals 12 - 16:
