With ABS

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT
>A< BRAKE PIPE CONNECTION

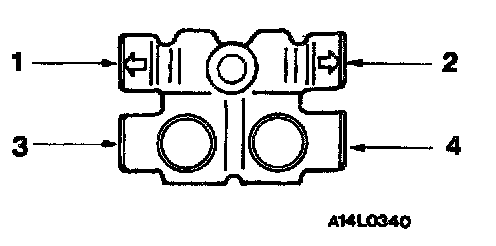

Connect the pipes to the hydraulic unit as shown in the illustration.
1. Proportioning valve - Rear brake (L.H.)
2. Proportioning valve - Rear brake (R.H.)
3. Proportioning valve - Hydraulic unit
4. Proportioning valve - Hydraulic unit
